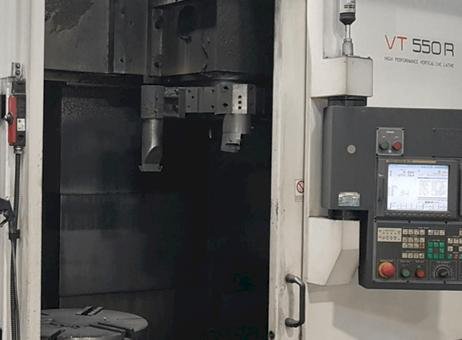

HWACHEON VT550R vertical turret lathe with cnc

HWACHEON VT550R vertical turret lathe with cnc
Top seller
Make an offer
HWACHEON
VT550R
2008
Italy
Lathes - CNC vertical turret lathes
P2510091270
+34 679 …
Plate diameter
500 mm
CNC type
Rotation speed
1500 rpm
Overhauled
no
Length x width x height
3000.0 × 2200.0 × 3300.0
Weight
13000 kg
as-is, where-is
24/04/2026

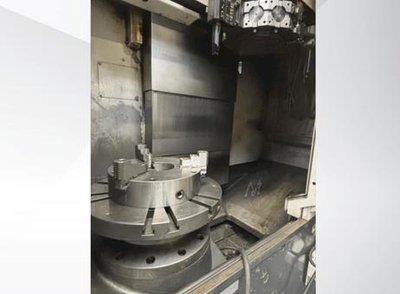

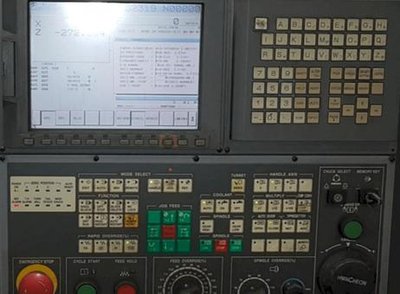

The HWACHEON VT550R is a vertical turret lathe CNC machine manufactured in 2008, designed for high-performance machining tasks. It features a hydraulic chuck with a diameter of 500 mm, suitable for handling medium-sized workpieces. The machine offers a maximum turning diameter of 650 mm and a spindle speed of up to 1,500 rpm, providing versatility for various turning operations. This model includes a 12-position tool turret, allowing multiple tools to be mounted simultaneously for efficient machining processes. The machine's spindle bore measures 100 mm, and it supports two axes with X-axis movement of 350 mm and Z-axis movement of 790 mm. It can accommodate tools up to 50 mm in diameter. The machine dimensions are 3000 mm in length, 2200 mm in width, and 3300 mm in height, with a total weight of approximately 13,000 kg. The exterior shows signs of use consistent with industrial operation but no visible damage. The interior work area, including the chuck and turret, exhibits typical wear and some discoloration, indicating regular use. The control panel is equipped with a display screen and multiple function buttons, including an emergency stop button, facilitating precise and safe operation. Additionally, the machine comes with a chip conveyor to manage machining debris effectively. Several tool holders and attachments accompany the lathe, stored on metal shelving units and cardboard surfaces. These accessories show signs of use and some surface wear but no major damage, providing added value for immediate machining needs. Overall, the HWACHEON VT550R vertical turret lathe CNC machine is a robust and capable unit suitable for various turning applications, with comprehensive tooling and control features designed to support efficient and precise manufacturing processes. This HWACHEON VT550R was manufactured in 2008. It features a hydraulic chuck diameter of 500 mm, a maximum turning diameter of 650 mm, and a spindle speed up to 1,500 RPM. The machine includes a 12-position turret and a chip conveyor, ensuring efficient operation. Consider the opportunity to buy this HWACHEON VT550R turn-mill centre. Contact us for more information about this machine. Measurements width: 2200 mm
Measurements depth: 3000 mm
Measurements height: 3300 mm
Machine weight: 13000 kg
Spindle bore: 100 mm
Number of axis: 2
X-Axis Movement: 350 mm
Z-Axis Movement: 790 mm
Max tool diameter: 50 mm
