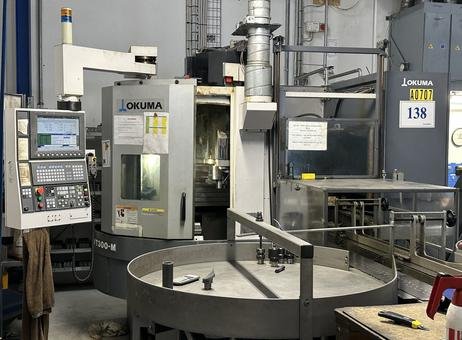

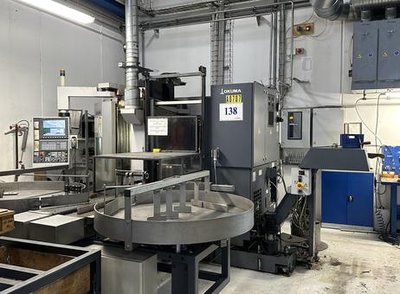

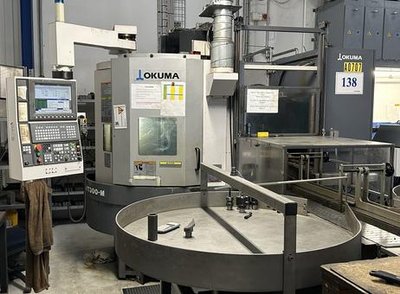

Okuma LVT-300 M vertical turret lathe with cnc

Okuma LVT-300 M vertical turret lathe with cnc
Top seller
View price
Okuma
LVT-300 M
2007
Denmark
Lathes - CNC vertical turret lathes
P230313164
Plate diameter
280 mm
CNC type
Rotation speed
4000 rpm
Engine Power
22 kW
Overhauled
no
excellent
yes
visible
14/04/2026

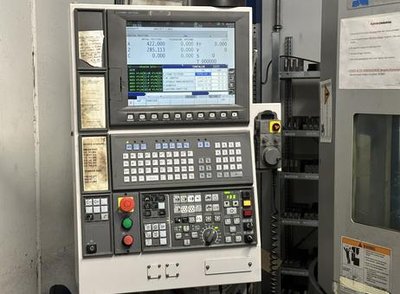

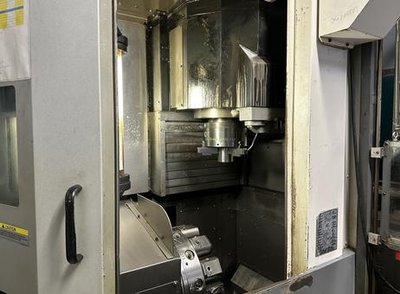

This listing is for an Okuma vertical turret lathe, model LVT-300 M, manufactured in 2007. The machine is equipped with a CNC control panel featuring a display screen and multiple buttons and switches, allowing for precise programming and operation. It has a maximum turning diameter of 280 mm and a rotary table diameter of 210 mm. The lathe offers an X-axis travel of 210 mm and a Z-axis travel of 360 mm, with a rotation speed of up to 4000 rpm. The engine power is rated at 22 kW. The machine includes a 12-station automatic tool changer (ATC) or revolver, enhancing productivity by allowing multiple tools to be used without manual changeover. The C-axis has a resolution of 360000°, facilitating precise angular positioning. Additional features include a chip conveyor system for efficient chip removal during machining operations and a coolant system operating at 9 bar pressure with a Grundfos pump, which helps in cooling and lubricating the cutting process. The lathe is fitted with package jaws and package tool holders to secure workpieces and tools. The rotary table is round and designed to hold multiple tool holders and parts. The machining area is enclosed with a protective door featuring a window for monitoring the machining process safely. The spindle and chuck are mounted inside this enclosure. The machine appears clean and in good condition, showing some typical signs of use such as metal chips and wear marks in the machining area. The floor around the machine shows some wear and oil stains, which are common in workshop environments. Overall, this Okuma LVT-300 M vertical turret lathe is a robust and well-equipped machine suitable for precision turning operations. X Travel 210
Z Travel 360
Power 22 kW
Driven live tools 7.5 kw / 3000 Rpm
In feed table
Out feed table
Package jaws
Package tool holders
Chip conveyor
Coolant system 9 Bar Grundfos
Max. turning Ø 280 mm
Table Ø 210 mm
ATC / revolver 12
Speeds / ranges 4000 Rpm
C-Axis 360000 °
Frequently Asked Questions (AI-Generated)
What year was this Okuma LVT-300 M manufactured? This Okuma LVT-300 M vertical turret lathe with CNC was manufactured in 2007. What type of equipment is this? This equipment is a vertical turret lathe with CNC capabilities. The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details. 2014
