P. CARNAGHI AC 25 SP CNC vertical turret lathe with cnc

P. CARNAGHI AC 25 SP CNC vertical turret lathe with cnc
Verified seller
Price on request
View price
Manufacturer
P. CARNAGHI
Model
AC 25 SP CNC
Year
1977
Location
Italy
Category
Lathes - CNC vertical turret lathes
Product id
P240509073
Buy this machine
Language
Language
вертикален револверен струг с ЦПУ P. CARNAGHI AC 25 SP CNC
Soustruh - karusel cnc P. CARNAGHI AC 25 SP CNC
P. CARNAGHI AC 25 SP CNC lodret drejebænk med cnc
P. CARNAGHI AC 25 SP CNC Karusselldrehmaschine CNC
κάθετος τόρνος πυργίσκου με cnc P. CARNAGHI AC 25 SP CNC
P. CARNAGHI AC 25 SP CNC vertical turret lathe with cnc
Torno vertical cnc P. CARNAGHI AC 25 SP CNC
Tour vertical à cnc P. CARNAGHI AC 25 SP CNC
vertikalni revolver tokarski stroj sa CNC P. CARNAGHI AC 25 SP CNC
P. CARNAGHI AC 25 SP CNC függőleges tornyos eszterga cnc-vel
TORNIO VERTICALE P. CARNAGHI AP 25 SP CNC
vertikalios bokštinės tekinimo staklės su cnc P. CARNAGHI AC 25 SP CNC
P. CARNAGHI AC 25 SP CNC verticale draaibank met cnc
Tokarka karuzelowa CNC P. CARNAGHI AC 25 SP CNC
torno de torre vertical com cnc P. CARNAGHI AC 25 SP CNC
strung vertical cu turela cu cnc P. CARNAGHI AC 25 SP CNC
P. CARNAGHI AC 25 SP CNC Вертикальный токарно-револьверный станок с ЧПУ
strug sa vertikalnim kupolom sa cnc P. CARNAGHI AC 25 SP CNC
P. CARNAGHI AC 25 SP CNC vertikal revolversvarv med cnc
Dik taret Torna P. CARNAGHI AC 25 SP CNC
Get price & details
Details
About this seller
Specifications
Plate diameter
2300 mm
Working height
2750 mm
CNC type
SIEMENS 810 T
Max piece weight
30000 kg
Rotation speed
123 rpm
Engine Power
59.65697 kW
Overhauled
no
-------------------
Weight
72000 kg
worked hours
hours under power
state
good
At local norms
---------
status
Last availability date
28/03/2026
Show more
Automatic description (AI-Generated)
This P. CARNAGHI AC 25 SP CNC is a robust vertical turret lathe designed for heavy-duty machining tasks. Manufactured in 1977, it features a large circular worktable with a diameter of 2,300 mm, capable of handling a maximum piece weight of up to 30,000 kg. The machine supports a maximum turnable diameter of 3,500 mm and a working height of 2,750 mm, accommodating sizable workpieces.
The lathe is powered by an engine with approximately 59.7 kW (80 Hp), providing sufficient spindle power for demanding operations. It offers a table rotation speed ranging from 2 to 123 rpm, allowing for versatile machining speeds. The machine's total weight is substantial at 72,000 kg, reflecting its heavy industrial build.
Equipped with CNC Siemens 810 T control, this lathe supports precise and automated machining processes. It includes a vertical CNC ram carriage and a vertical carriage with an automatic CNC square turret, enhancing its tooling capabilities. Additional features include a fairing and a chip conveyor to manage metal debris during operation.

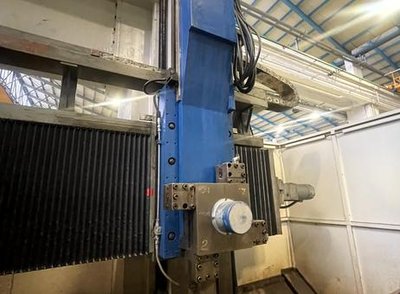

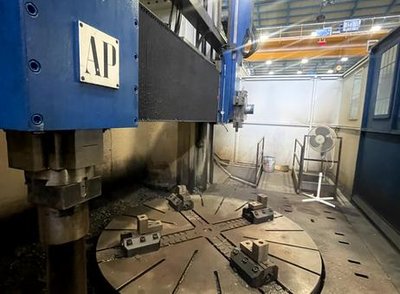

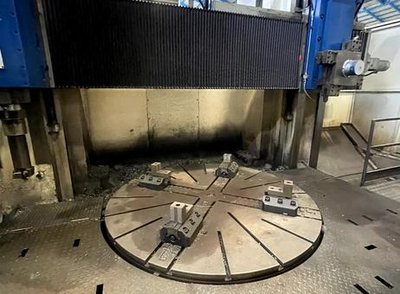

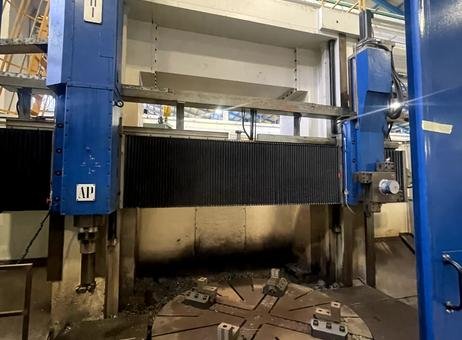

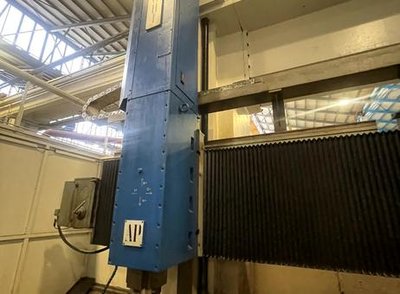

The visible structure consists of a circular worktable with multiple clamps and two blue vertical columns that support the cross rail and tool holders. The machine shows signs of use with some wear and metal debris around the worktable area, indicating it has been operational in an industrial environment.
Overall, this vertical turret lathe is suitable for heavy machining applications requiring large capacity and CNC precision. Its comprehensive features and accessories make it a versatile choice for industrial manufacturing setups.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Ø table 2,300 mm.
Ø max. turnable 3,500 mm.
Spindle power 80 Hp.
Max. height turnable 2,750 mm.
Table scope 30 tons.
Table rotation speed 2 ÷ 123 Rpm.
RAM wagon vertical travel 1,250 mm.
Vertical travel turret carriage 800 mm.
RAM section 250 x 250 mm.
Cnc CNC SIEMENS 810 T
Total weight 72 tons.
Features and Accessories
Serviced 1997-2014.
Complete with:
- n. 1 vertical cnc ram carriage
- n. 1 vertical carriage with automatic CNC square turret
- fairing
- chip conveyor
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
