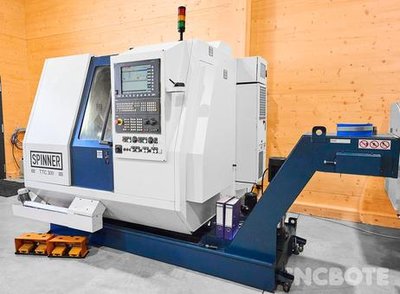

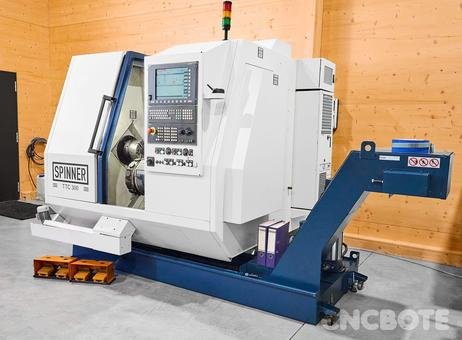

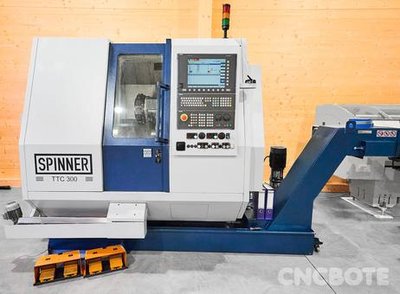

Spinner TTC300-52 SMMCY Dreh-Fräszentrum
42000.00 €
VB
| Zustand | gebraucht |
|---|---|
| Hersteller | Siemens |
| Baujahr | 2012 |
| Manufacturer | Spinner |
| Model | TTC300-52 SMMCY Dreh-Fräszentrum |
| Year | 2012 |
| Location | Germany |
| Category | Lathes - CNC lathes |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 2200.0 × 2000.0 × 2000.0 |
| Weight | 4600 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Last availability date | 08/09/2026 |
| Product id | P260707065 |
| Client type | Machinery dealer |
| Active since | 2024 |
| Offers online | 41 |
| Last activity | Sept. 9, 2026 |
| Turning length | 600 mm |
| Type of CNC | Fanuc |
| Z-axis | 980 mm |
| Number of turrets | 1 |
| Number of rotating tools | 6 |
| Spindle motor power | 16.5 kW |
| Turning Ø | 500 mm |
| X-axis | 360 mm |
| Spindle taper | VDI 30 |
| Number of tools on turret | 12 |
| Turning speed | 4000 rpm |
| Ø above the bed | 690 mm |
| Length between centers | 600 mm |
| Ø above transversing slide | 310 mm |
| Spindle bore | 65 mm |
| Max workpiece weight | kg |
Beschreibung
Manufacturer: Spinner
Model: TC300-52 SMMCY
Year of Manufacture: 2012
Condition: Used
Operational: Tested and fully functional

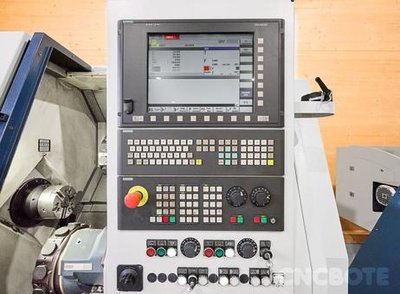

Control System: Siemens 840D SL
Feed ranges: X1 180 mm, X2 110 mm, Z 450 mm, Y +40/-40 mm
Turning Length: 400 mm
Turning Diameter: 250/200 mm
Swivel Diameter: 400 mm
Operating hours: Not specified
Work spindle 1: Speed 5,000 rpm; Torque 96/121 Nm; Power 15/19 kW
Work spindle 2: Speed 7,000 rpm; Torque 38 Nm; Power 6 kW

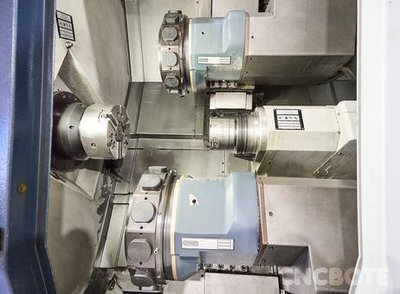

Tool turrets 1 and 2: Number of stations 12; Mounting: VDI 25
Maximum AGW speed: 6,000 rpm
Power: 8/2.6 kW
Dimensions: 2,200 x 2,000 x 2,000 mm
Weight: approx. 4,600 kg
Additional equipment and included accessories: Parts conveyor; High-pressure pump; Chip removal system; Interface for bar loader; 3-jaw chuck on the counter spindle and main spindle
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Model: TC300-52 SMMCY
Year of Manufacture: 2012
Condition: Used
Operational: Tested and fully functional
Control System: Siemens 840D SL
Feed ranges: X1 180 mm, X2 110 mm, Z 450 mm, Y +40/-40 mm
Turning Length: 400 mm
Turning Diameter: 250/200 mm
Swivel Diameter: 400 mm
Operating hours: Not specified
Work spindle 1: Speed 5,000 rpm; Torque 96/121 Nm; Power 15/19 kW
Work spindle 2: Speed 7,000 rpm; Torque 38 Nm; Power 6 kW
Tool turrets 1 and 2: Number of stations 12; Mounting: VDI 25
Maximum AGW speed: 6,000 rpm
Power: 8/2.6 kW
Dimensions: 2,200 x 2,000 x 2,000 mm
Weight: approx. 4,600 kg
Additional equipment and included accessories: Parts conveyor; High-pressure pump; Chip removal system; Interface for bar loader; 3-jaw chuck on the counter spindle and main spindle
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
