Used Junghental DK 1400 vertical turret lathe with cnc

Problems viewing the video? Watch on YouTube. Problems viewing the video? Watch on YouTube. Problems viewing the video? Watch on YouTube. Used Junghental DK 1400 vertical turret lathe with cnc
View price
You can purchase this machine from us directly, which gives you:
Secured payment
for the purchase
Dedicated compliance check
of the seller
Logistics and customs support
if applicable
After-sale follow up
if needed
Contact us to receive an offer. Junghental
DK 1400
Italy
Lathes - CNC vertical turret lathes
P240104042
Plate diameter
1000 mm
CNC type
FAGOR
Overhauled
no
good
visible
25/02/2026

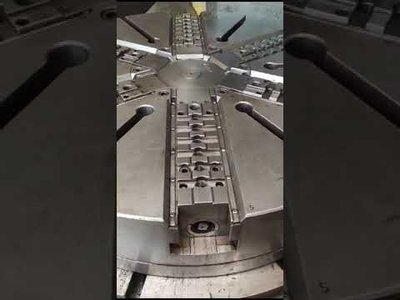

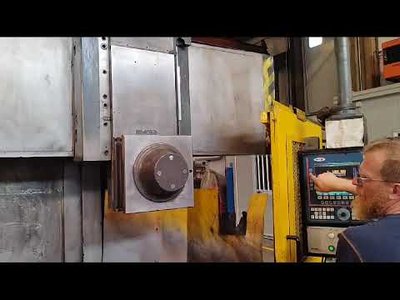

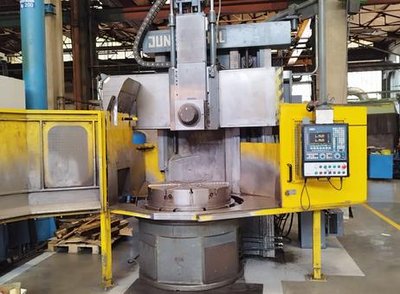

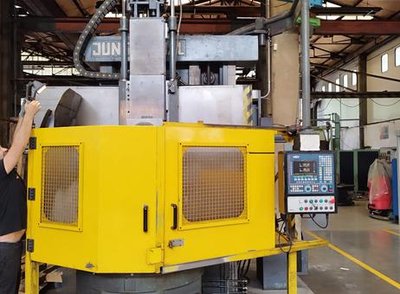

This Junghental DK 1400 vertical turret lathe features a self-centering chuck with 6 jaws and a plate diameter of 1000 mm, capable of processing workpieces up to 1400 mm in size. The machine is equipped with a FAGOR CNC control system, which includes a control panel mounted on the right side of the yellow safety enclosure. The control panel features a screen displaying coordinates and multiple buttons, rotary knobs, and an emergency stop button, providing comprehensive operational control. The lathe's total electrical absorption is approximately 130 A, covering the spindle motor, X and Z axis motors, head lubrication pump motors, refrigerant pump motor, hydraulic central pump motor, and crosshead motor. Hydraulic and pneumatic components are visible on the machine, including pipes, valves, an accumulator tank, hydraulic pumps, motors, pressure gauges, and control valves, all appearing complete and without visible leaks or damage. The machine is housed within a yellow safety enclosure that shows signs of industrial use such as scratches, dirt, wear marks, and some welding marks on metal parts. The enclosure includes protective doors, some of which are open in places, allowing access to the machine's interior and components. Additional features include a rotary table with clamping jaws, hydraulic or pneumatic lines and cables running along the machine sides, and an overhead crane structure with a blue arm and green hoist positioned above the lathe. Electrical diagrams and machine use and maintenance manuals are available to support operation and servicing. Overall, the Junghental DK 1400 vertical turret lathe presents as a robust machine with visible signs of use but no evident damage or missing parts, suitable for heavy-duty machining tasks requiring CNC precision. The chuck is self-centering with 6 jaws and has a diameter of 1000 mm with the possibility of processing pieces up to a size of 1400 mm. The total electrical absorption of the lathe is approximately 130 A and includes:
• spindle motor
• x and z axis motors
• head lubrication pump motors
• refrigerant pump motor
• hydraulic central pump motor
• crosshead motor
The CNC on the machine is FAGOR. Electrical diagrams and machine use and maintenance manuals are available
Frequently Asked Questions (AI-Generated)
What is the diameter of the self-centering chuck? This Junghental DK 1400 vertical turret lathe has a self-centering chuck with a diameter of 1000 mm. What is the maximum workpiece size this machine can process? This machine can process workpieces with a maximum size of 1400 mm. What is the electrical consumption of this Junghental DK 1400? This Junghental DK 1400 lathe has a total electrical consumption of approximately 130 A. What motors are included with this equipment? This equipment includes a spindle motor, X and Z axis motors, lubrication pump motor, coolant pump motor, central hydraulic pump motor, and cross slide motor. What type of control system does this machine have? This machine is equipped with a FAGOR CNC control system. Are manuals included with this Junghental DK 1400 lathe? This Junghental DK 1400 lathe comes with electrical schematics and operation and maintenance manuals as part of the included equipment. The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details. Factory – small or medium company
