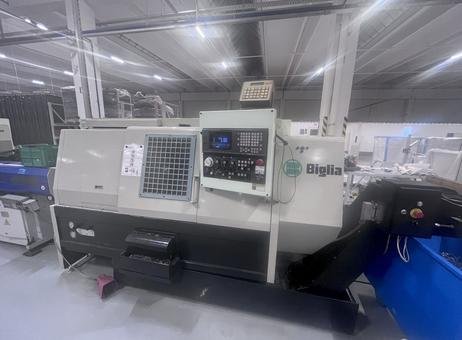

Biglia B 501 MB cnc lathe

Biglia B 501 MB cnc lathe
Top seller
Price on request
View price
Manufacturer
Biglia
Model
B 501 MB
Year
1997
Location
Bulgaria
Category
Lathes - CNC lathes
Product id
P240412176
Buy this machine
Language
Language
cnc струг Biglia B 501 MB
Soustruh cnc Biglia B 501 MB
Biglia B 501 MB cnc drejebænk
Biglia B 501 MB Drehmaschine CNC
cnc τόρνος Biglia B 501 MB
Biglia B 501 MB cnc lathe
Torno cnc Biglia B 501 MB
Tour cnc Biglia B 501 MB
cnc tokarski stroj Biglia B 501 MB
Biglia B 501 MB cnc eszterga
Tornio cnc Biglia B 501 MB
cnc tekinimo staklės Biglia B 501 MB
Biglia B 501 MB cnc-draaibank
Tokarka CNC Biglia B 501 MB
Torno CNC Biglia B 501 MB
strung cnc Biglia B 501 MB
Biglia B 501 MB Токарный станок с ЧПУ
cnc strug Biglia B 501 MB
Biglia B 501 MB cnc svarv
Cnc torna Biglia B 501 MB
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
500 mm
Turning Ø
520 mm
Type of CNC
X-axis
210 mm
Z-axis
500 mm
Spindle taper
ASA 6''
Spindle bore
80 mm
Number of tools on turret
12
Turning speed
4000 rpm
Spindle motor power
5 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
4000.0
× 1940.0
× 1660.0
Weight
4700 kg
worked hours
hours under power
state
good
At local norms
---------
status
Last availability date
30/04/2026
Show more
Automatic description (AI-Generated)
The Biglia B 501 MB is a CNC lathe machine manufactured in 1997, designed for precision turning operations. It features a robust build with overall dimensions of 4000 mm in length, 1940 mm in width, and 1660 mm in height, weighing approximately 4700 kg. The machine accommodates a maximum turning length of 500 mm and a turning diameter of up to 520 mm. Its spindle bore measures 80 mm, supporting workpieces with a maximum bar diameter between 54 and 68 mm.
This lathe is equipped with a 12-position turret, allowing for efficient tool changes and versatility in machining processes. The X-axis travel is 210 mm with an additional 5 mm allowance, while the Z-axis travel extends to 500 mm plus 10 mm, both axes capable of moving at speeds up to 20 meters per minute. The spindle motor delivers 5 kW of power, enabling spindle speeds ranging from 40 to 4000 rpm.
Additional features include a hydraulic tailstock with an automatic quill travel of 100 mm, quill diameter of 85 mm, and automatic/manual positioning between 440 and 510 mm. The machine is supported by a coolant system with a tank capacity of 200 liters and a pump flow rate of 100 liters per minute, driven by a 0.5 kW pump motor.
The lathe is fitted with a control panel featuring a screen and multiple buttons for operation control. A chip conveyor system is attached to facilitate efficient removal of machining debris. The electrical cabinet is equipped with ventilation grilles and access panels, ensuring proper cooling and maintenance access.
Overall, the Biglia B 501 MB presents a clean and well-maintained appearance, situated in an organized environment, indicating good upkeep. This machine is suitable for various turning applications, offering precision and reliability in machining tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
This BIGLIA B 501 MB (1997) Lathe machine was manufactured in 1997. This machine has a tank capacity of 200 liters and a pump flow rate of 100 liters per minute, driven by a pump motor with 0.5 kW power. Regarding its axis specifications, the x-axis has a travel distance of 210+5 mm and moves at a speed of 20 meters per minute, while the z-axis travels a distance of 500+10 mm at the same speed. Contact us anytime for further information.
Measurements width: 1940
Measurements depth: 4000
Measurements height: 1660
Machine weight: 4700
Spindle speed range: 40-4000
X-Axis Movement: 210+5mm
Z-Axis Movement: 500+10mm
Number of turrets: 12
Slots in storage: 6
Spindle nose: asa 6''
Spindle hole: 80mm
Maximum bar workable diameter: 54-68mm
Maximum workable diameter for shooting: 250mm
Maximum workable length: 500mm
Maximum rotating diameter: 520mm
Front bearing internal diameter: 110mm
Self-centering diameter: 210-250mm
Caliper group: din 6343
Engine power: kw 11-15(50%)-22-26(50%)- Turret type: bidirectional
- External tool shank: 25 x 25 mm
- Reamer tool shank: 32mm
- Rotation time (1 position): 0.7sec
- Powered tools: variable rotation range 50-3000rpm, engine power Kw 3.7(50%)
- C axis controlled: type CS(direct), minimum programmable value 0.001°, fast speed 80rpm
-Hydraulic tailstock: automatic quill travel 100mm, quill diameter 85mm, tip holder cone CM.4, automatic/manual positioning mm 510-440
- Tank capacity: 200l
- Pump flow rate: 100 l/min
- Pump motor power: 0.5Kw
- Main spindle center height 1000mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
