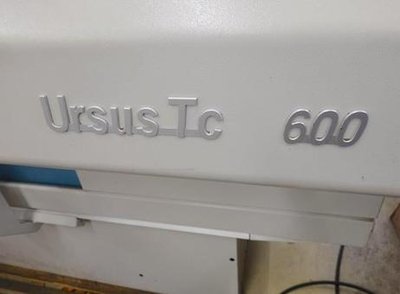

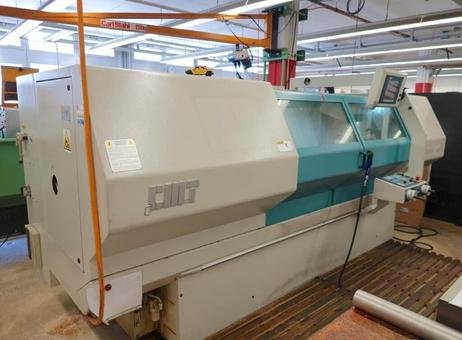

CMT URSUS TC 600 cnc lathe

CMT URSUS TC 600 cnc lathe
Verified seller
Price on request
Make an offer
Manufacturer
CMT
Model
URSUS TC 600
Year
2002
Location
Italy
Category
Lathes - CNC lathes
Product id
P250630042
Buy this machine
Language
Language
cnc струг CMT URSUS TC 600
Soustruh cnc CMT URSUS TC 600
CMT URSUS TC 600 cnc drejebænk
CMT URSUS TC 600 Drehmaschine CNC
cnc τόρνος CMT URSUS TC 600
CMT URSUS TC 600 cnc lathe
Torno cnc CMT URSUS TC 600
Tour cnc CMT URSUS TC 600
cnc tokarski stroj CMT URSUS TC 600
CMT URSUS TC 600 cnc eszterga
Tornio cnc CMT URSUS TC 600
cnc tekinimo staklės CMT URSUS TC 600
CMT URSUS TC 600 cnc-draaibank
Tokarka CNC CMT URSUS TC 600
Torno CNC CMT URSUS TC 600
strung cnc CMT URSUS TC 600
CMT URSUS TC 600 Токарный станок с ЧПУ
cnc strug CMT URSUS TC 600
CMT URSUS TC 600 cnc svarv
Cnc torna CMT URSUS TC 600
Get price & details
+39 030 …
Show phone
Details
About this seller
Specifications
Turning Ø
105 mm
Ø above the bed
600 mm
Length between centers
1500 mm
Type of CNC
FAGOR 8055
Spindle taper
cl8
Spindle bore
105 mm
Number of tools on turret
8
Turning speed
1800 rpm
Tailstock
no
Bar feeder
no
-------------------
worked hours
hours under power
state
as-is, where-is
At local norms
yes
status
visible
Last availability date
23/04/2026
Show more
Automatic description (AI-Generated)
This listing features a CNC lathe machine manufactured by CMT, model URSUS TC 600, produced in 2002. It is designed for versatile turning operations with a maximum bar diameter capacity of 105 mm and a maximum workpiece diameter of 600 mm above the bed. The turning length between centers is 1500 mm, allowing for machining of relatively long parts. The lathe includes a spindle bore diameter of 105 mm and a spindle nose type CL8”. It operates at a maximum spindle speed of 1800 rpm, powered by a motor with a maximum power output of 9/13 kW, with a total installed power of 13 kW.

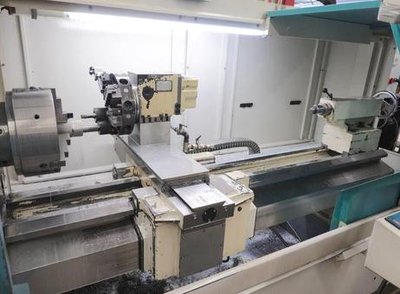

The machine is equipped with an 8-position turret, facilitating multiple tooling options for various machining tasks. The turret and interior surfaces show some paint wear and chipping, indicative of prior use, while the machine bed and guideways appear clean and well-maintained. The tailstock features a rowing race diameter of 220 mm and a cone type CM5, with a tube diameter of 68 mm.

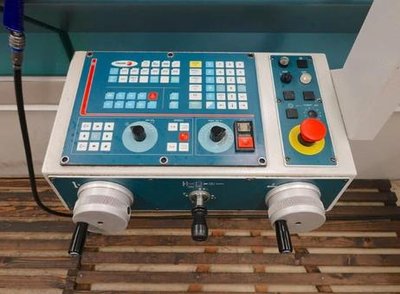

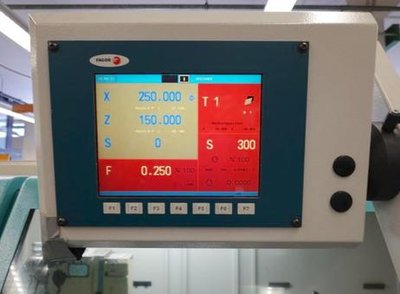

Control is provided via a CNC system by FAGOR, model 8055, with a digital display showing coordinates and spindle speed, along with function keys F1 to F7. The control panel includes buttons, knobs, an emergency stop button, and two handwheels for manual axis control, enhancing operational flexibility and safety.
Additional features include quick traverse rates of 5000 mm/min in both X and Z axes, a self-centering Forkhardt chuck with quick coupling, and closed lunettes. The machine carries CE certification and comes with electrical diagrams as well as use and maintenance manuals. It is housed within a protective enclosure with viewing windows and warning labels, suitable for an industrial workshop environment.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Max workable diameter from bar 105mm​
Max piece diameter 600 mm
Max diameter on the carriage 365 mm
Max workable length 1500 mm
CNC
CNC FAGOR 8055
CART
Quick X 5000 mm/min
Quick Z 5000 mm/min
MAIN SPINDLE
Max rotation speed 1800 rpm
Spindle nose CL8”
Spindle hole 105mm​
Max power 9/13 Kw
Range Change YES
TAILSTOCK
Rowing race 220mm​
Diameter of the tube 68mm​
Cone CM5
TURRET
Number of positions 8
EXTRA
Total installed power 13 Kw
Closed lunettes 1
Self-centering Forkhardt with quick coupling
CE Certification Yes
Electrical diagrams Yes
Use and maintenance books Yes
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
