Cmz TA 20 YS 640

Cmz TA 20 YS 640
Verified seller
Price on request
Make an offer
Manufacturer
CMZ
Model
TA 20 YS 640
Year
2021
Location
Italy
Category
Lathes - CNC lathes
Product id
P251126069
Buy this machine
Language
Language
cnc струг CMZ TA 20 YS 640
Soustruh cnc CMZ TA 20 YS 640
CMZ TA 20 YS 640 cnc drejebænk
CMZ TA 20 YS 640 Drehmaschine CNC
cnc τόρνος CMZ TA 20 YS 640
Cmz TA 20 YS 640
Torno cnc CMZ TA 20 YS 640
Tour cnc CMZ TA 20 YS 640
cnc tokarski stroj CMZ TA 20 YS 640
CMZ TA 20 YS 640 cnc eszterga
Cmz TA 20 YS 640
cnc tekinimo staklės CMZ TA 20 YS 640
CMZ TA 20 YS 640 cnc-draaibank
Tokarka CNC CMZ TA 20 YS 640
Torno CNC CMZ TA 20 YS 640
strung cnc CMZ TA 20 YS 640
CMZ TA 20 YS 640 Токарный станок с ЧПУ
cnc strug CMZ TA 20 YS 640
CMZ TA 20 YS 640 cnc svarv
Cnc torna CMZ TA 20 YS 640
Get price & details
+39 0 75…
Show phone
Details
About this seller
Specifications
Turning length
649 mm
Turning Ø
460 mm
Ø above the bed
760 mm
Ø above transversing slide
600 mm
Type of CNC
FANUC 32 i TB
X-axis
310 mm
Z-axis
640 mm
Spindle taper
Spindle bore
73 mm
Number of turrets
2
Number of tools on turret
12
Turning speed
4000 rpm
Spindle motor power
22 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
2542.0
× 1760.0
× 2120.0
Weight
7500 kg
worked hours
hours under power
state
as-is, where-is
At local norms
yes
status
visible
Datasheet
CMZ TA 20 YS 640
Last availability date
31/03/2026
Show more
Automatic description (AI-Generated)

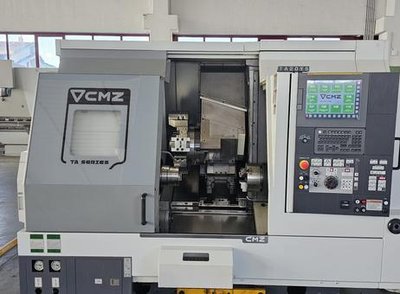

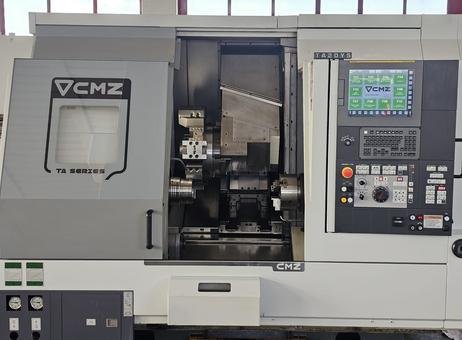

This listing is for a CMZ TA 20 YS 640 CNC lathe manufactured in 2021. It features a robust design with overall dimensions of 2542 mm in length, 1760 mm in width, and 2120 mm in height, and a total weight of 7500 kg. The machine is equipped with two turrets, each capable of holding 12 tools, allowing for versatile and efficient machining operations.
The lathe offers a maximum turning diameter of 460 mm and a maximum turning length of 649 mm, suitable for a variety of turning tasks. The X-axis travel is 310 mm and the Z-axis travel is 640 mm, with an additional Y-axis travel ranging from +70 to -50 mm, and a B-axis travel of 640 mm, providing multi-axis machining capabilities.
Powering the spindle is a 22 kW motor, delivering a spindle speed of up to 4000 rpm, with a spindle taper of ASA 6 A2 and a spindle bore diameter of 73 mm. The counter spindle rotates at speeds up to 4500 rpm and has a diameter of 175 mm, enhancing the machine's ability to perform complex operations.

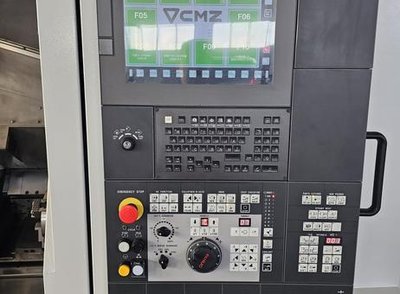

The lathe is controlled via a CNC Fanuc 32i TB system, visible on the control panel which includes a screen and multiple operational buttons and switches. The control panel is intact and well-maintained, featuring function keys labeled F01 to F10 and an emergency stop button for safety.

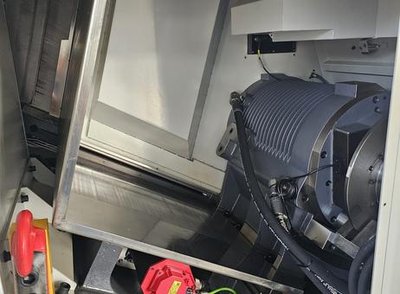

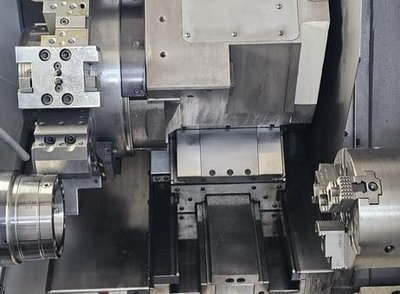

The machine's exterior and interior surfaces are clean and well-maintained, with no visible rust or damage. The machining area is accessible through an open front door and includes two chucks mounted opposite each other on the spindle and turret. Tool turrets with multiple tool holders, linear guide rails, and slideways are present and appear in good condition.
Additional components include two pressure gauges and switches located on the lower left side of the machine, safety glass window on the left door bearing the CMZ logo and TA Series label, safety stickers, and metal guard panels inside the machining area. Hydraulic or coolant pipes and hoses are visible, indicating the presence of necessary fluid systems.
The machine is installed indoors in a well-lit industrial environment. An odometer reading of approximately 7295 hours is visible on the control panel, providing an indication of usage. Overall, this CMZ TA 20 YS 640 CNC lathe presents a comprehensive set of features suitable for precision turning tasks in an industrial setting.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Year 2021
Condition Used
CNC Fanuc 32i TB
Maximum turning diameter 460 mm
Maximum turning length 649 mm
Turning diameter from bar 66 mm
X-axis travel 310
Z-axis travel 640
Y-axis travel + 70 -50
B-axis travel 640 mm
Spindle speed 4000 rpm
Spindle motor 22 Kw
Spindle taper ASA 6 A2
Spindle Bore 73 mm
Turret number 12 stations
Counter spindle speed 4500 rpm
Counter spindle diameter 175 mm
Dimensions 2542 x 1760 x 2120 mm
Weight 7500 kg
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
