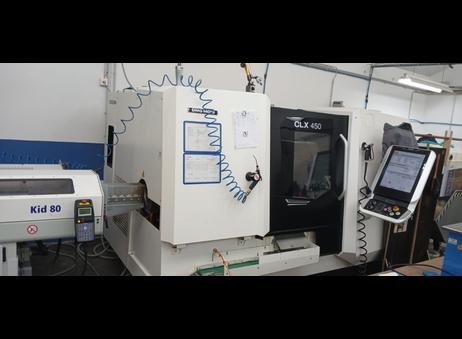

CNC Turning- and Milling Center DMG MORI CLX 450 V6
49.00 €
Do negocjacji
| Strona główna | gebraucht |
|---|---|
| Producent | DMG |
| Rok produkcji | 2019 |
| Manufacturer | DMG-MORI |
| Model | CLX 450 V6 |
| Year | 2019 |
| Location | Germany |
| Category | Lathes - CNC lathes |
| Ø above transversing slide | 520 mm |
| Type of CNC | SINUMERIK 840 D |
| Z-axis | 1870 mm |
| Spindle bore | 65 mm |
| Number of turrets | 1 |
| Number of tools on turret | 12 |
| Number of rotating tools | 10 |
| Turning speed | 4000 rpm |
| Spindle motor power | 13.2 kW |
| Tailstock | no |
| Bar feeder | no |
| worked hours | 5791 hours |
| hours under power | 14141 hours |
| state | excellent |
| At local norms | --------- |
| status | under power |
| Datasheet | DMG-MORI CLX 450 V6 |
| Last availability date | 25/08/2026 |
| Product id | P260818146 |
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 24 |
| Last activity | Aug. 26, 2026 |
| Turning length | 1585 mm |
| Turning Ø | 390 mm |
| X-axis | 605 mm |
| Spindle taper | ASA 5 |
| Ø above the bed | 640 mm |
| Length between centers | 400 mm |
| Max workpiece weight | 10 kg |
Opis
The machine is in very good condition and has recently been inspected
and measured by a service technician. The lathe was primarily used to manufacture turned plastic parts. CNC lathe with driven tools, C-axis, Y-axis, and
counter-spindle
CNC control:
DMG Mori SLIMline multi-touch control (19"/Operate 4.7 on Siemens)
Screen language: German/English
Main spindle:
A2-8 with AC motor
Drive power 25.5/17 kW (100/40% duty cycle)
Spindle speed 4000 rpm
Hollow clamping system, max. bar capacity 80 mm

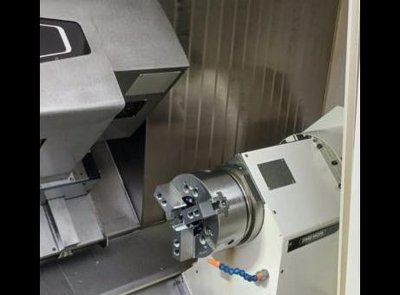

Counter-spindle:
A2-6 designed as a built-in motor spindle
ISM 52 with hydraulic clamping device
Drive power 14/13 kW (100/40% duty cycle)
Spindle speed 5000 rpm

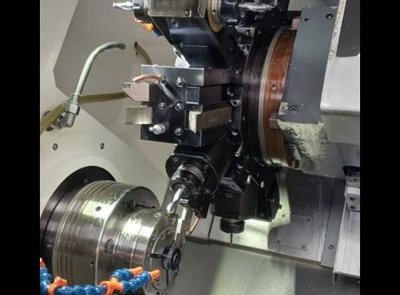

12-station servo tool turret:
VDI 40 mount with 12 driven tool stations
Equipment:
Y-axis +/- 60 mm
Direct position measuring system (X and Y axes)
Bar package & interface

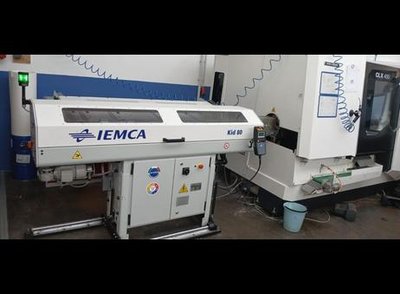

IEMCA KID80/16 short bar loader, bar capacity 80 mm
Differential pressure clamping for main spindle
Chuck flushing for main spindle
Reduction tube for main spindle
Hainbuch SPANNTOP nova Combi G80 Axzug collet chuck
Differential pressure clamping for counter-spindle
Chuck flushing for counter-spindle
Automatic workpiece ejector
Counter-spindle with internal coolant supply for workholding flushing
SMW BB-D210 hydraulic 3-jaw chuck for counter-spindle
SMW BB-D250 hydraulic 3-jaw chuck
High-pressure pump 12 bar
Coolant spray gun bar
Dual cartridge filter for coolant, filtration fineness 60 µm
Manual tool measuring device in the workspace, Marposs make
Tool monitoring system, Easy Tool Monitor 1.0 technology cycle
Alternating Speed ??technology cycle
3D data model in STEP format
DMG MORI Messenger V2
DMG MORI Netservice – client
Finished part discharge conveyor
Chip conveyor with right-hand discharge
External electronic handwheel
Tool holder package
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
