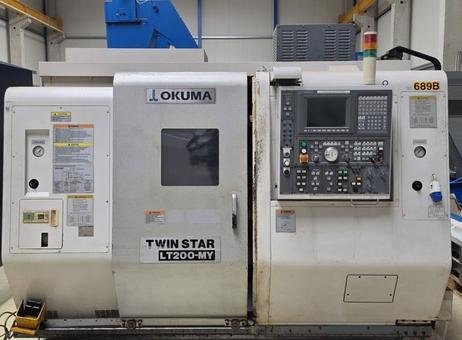

CNC turning and milling center OKUMA LT 200-MY

CNC turning and milling center OKUMA LT 200-MY
View price
Request price
+0049 21…
OKUMA
LT 200-MY
2004
Germany
Lathes - CNC lathes
Turning length
700 mm
Turning Ø
400 mm
Ø above the bed
210 mm
Length between centers
960 mm

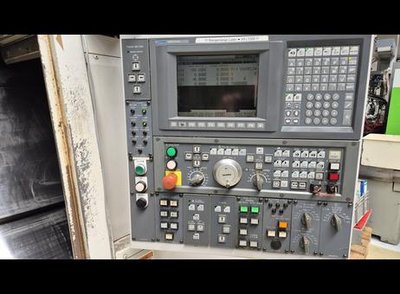

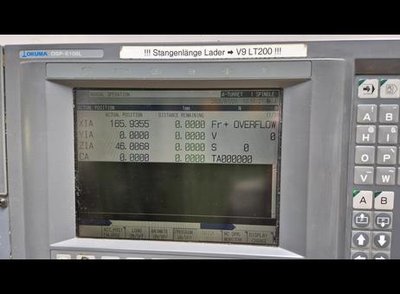

Type of CNC
OSP-E 100 L
X-axis
192 mm
Z-axis
700 mm
Spindle taper
Spindle bore
53 mm
Number of turrets
2
Number of tools on turret
12
Number of rotating tools
12
Turning speed
5000 rpm
Spindle motor power
11 kW
Tailstock
no
Bar feeder
yes
Length x width x height
2660.0 × 2000.0 × 2330.0
Weight
7100 kg
as-is, where-is
visible
18/08/2026
P260619050
Machine Description:
CNC turning and milling center with C-axis and Y-axis, equipped with two disk turrets and a counter spindle. Control system: Okuma OSP-E 100 L. Key Technical Data:
- Maximum turning diameter: 210 mm
- Diameter over bed: 400 mm
- Distance between spindle centers: 960 mm
Main Spindle:
- Spindle bore: 53 mm
- Speed range: 50 – 6000 rpm
- Motor power: 11/7.5 kW

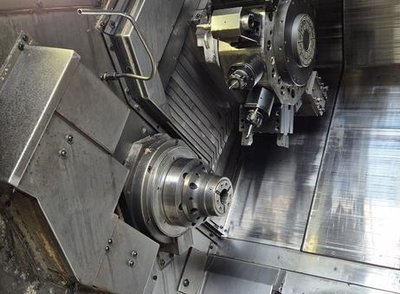

Counter Spindle:
- Spindle holder: JIS A2-6
- Speed range: 38 – 5000 rpm
- Motor power: 11/7.5 kW
Axes and Travels:
- Z-axis: travel 700 / 700 mm (ZA + ZB), rapid traverse 40000 mm/min
- W-axis: travel 940 mm, rapid traverse 40000 mm/min
- X-axis: travel 167 / 192 mm (XA + XB), rapid traverse 30000 mm/min
- Y-axis: travel 92 mm (+50/-42 mm), rapid traverse 15000 mm/min
- C-axis: 360° with 0.001° division, rapid traverse 400 rpm

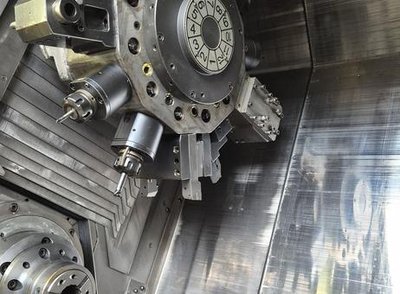

Tool Turrets and Drives:
- Disk turrets: 2 x 12 positions
- Tool holder interface: VDI, 30 mm diameter
- Driven tool power: 4 kW
Electrical Data and Dimensions:
- Total connected load: 35.7 kVA
- Machine weight: 7100 kg
- Dimensions: 2660 x 2000 x 2330 mm (with auxiliary elements)
Accessories (included as described):
- Bar loader FMB turbo 5-42/6200/A, year of manufacture 2005
- Chip conveyor
- Cooling system
- Spiral chucks for main and counter spindles
- Both turrets equipped with tool holders
- Machine documentation
Note: The described features and accessories are presented as in the original technical description and documentation. No additional information on operational condition or service interventions is provided. CNC turning and milling center with C-axis and Y-axis,
2 turrets, and subspindle. CNC control: Okuma OSP-E 100 L
Maximum turning diameter: 210 mm
Swing over bed: 400 mm
Distance between spindle noses: 960 mm
Main spindle:
Spindle bore: 53 mm
Speed range: 50 to 6000 rpm
Motor power: 11/7.5 kW
Subspindle:
Spindle nose: JIS A2-6
Speed range: 38 to 5000 rpm
Motor power: 11/7.5 kW
Z-axis:
Travel: 700 / 700 mm (ZA + ZB)
Rapid traverse: 40000 mm/min
W-axis:
Travel: 940 mm
Rapid traverse: 40000 mm/min
X-axis:
Travel: 167 / 192 mm (XA + XB)
Rapid traverse: 30000 mm/min
Y-axis:
Travel: 92 mm (+50/-42 mm)
Rapid traverse: 15000 mm/min
C-axis:
Indexing: 360 x 0.001 deg. Rapid traverse: 400 rpm
Disc turret:
2 x 12 stations
Tool holder mount: VDI 30 mm
Power of driven tools: 4 kW
Total connected load: 35.7 kVA
Machine weight: 7100 kg
Machine dimensions: 2660 x 2000 x 2330 mm*
Plus swarf conveyor and bar loader
Accessories
FMB Turbo 5-42/6200/A bar loader, year of manufacture 2005
Chip conveyor
Coolant system
Collet chuck for main and subspindle
Both turrets equipped with tool holders
Machine documentation. Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase. 2020
