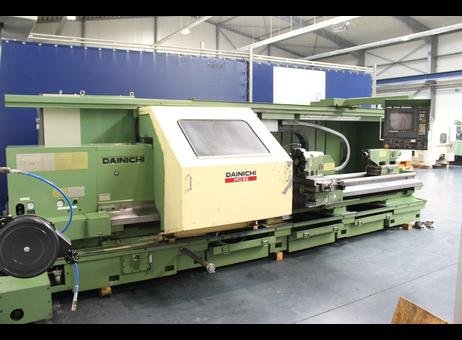

DAINICHI MG 65/3000 cnc lathe

DAINICHI MG 65/3000 cnc lathe
Verified seller
Price on request
View price
You can purchase this machine from us directly, which gives you:
Secured payment
for the purchase
Dedicated compliance check
of the seller
Logistics and customs support
if applicable
After-sale follow up
if needed
Contact us to receive an offer.
Manufacturer
DAINICHI
Model
MG 65/3000
Year
1989
Location
Lithuania
Category
Lathes - CNC lathes
Product id
P250717375
Buy this machine
Language
Language
cnc струг DAINICHI MG 65/3000
Soustruh cnc DAINICHI MG 65/3000
DAINICHI MG 65/3000 cnc drejebænk
DAINICHI MG 65/3000 Drehmaschine CNC
cnc τόρνος DAINICHI MG 65/3000
DAINICHI MG 65/3000 cnc lathe
Torno cnc DAINICHI MG 65/3000
Tour cnc DAINICHI MG 65/3000
cnc tokarski stroj DAINICHI MG 65/3000
DAINICHI MG 65/3000 cnc eszterga
Tornio cnc DAINICHI MG 65/3000
cnc tekinimo staklės DAINICHI MG 65/3000
DAINICHI MG 65/3000 cnc-draaibank
Tokarka CNC DAINICHI MG 65/3000
Torno CNC DAINICHI MG 65/3000
strung cnc DAINICHI MG 65/3000
DAINICHI MG 65/3000 Токарный станок с ЧПУ
cnc strug DAINICHI MG 65/3000
DAINICHI MG 65/3000 cnc svarv
Cnc torna DAINICHI MG 65/3000
Get price & details
Details
About this seller
Specifications
Turning length
3000 mm
Turning Ø
360 mm
Ø above the bed
630 mm
Type of CNC
Fanuc 15-T
X-axis
320 mm
Z-axis
3000 mm
Max workpiece weight
1600 kg
Spindle taper
Spindle bore
85 mm
Number of tools on turret
8
Tailstock
no
Bar feeder
no
-------------------
Weight
6500 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
in production
Datasheet
Dainichi MG 65/3000
Last availability date
20/02/2026
Show more
Automatic description (AI-Generated)
The DAINICHI MG 65/3000 is a CNC lathe machine manufactured in 1989, originating from Japan. It features a robust construction with a machine weight of approximately 6,500 kg and dimensions around 6.5 x 2.5 x 2.0 meters. The lathe is designed for turning operations with a maximum turning diameter of 360 mm and a turning length of 3000 mm. It allows a maximum workpiece weight of 1600 kg between centers.
The machine is equipped with a Fanuc 15-T control system, facilitating precise CNC operations. The spindle specifications include a bore diameter of 85 mm, a spindle nose type JIS A-11, and a spindle diameter in front bearing of 140 mm. The main spindle offers a speed range from 3 to 1800 rpm, with a power capacity of 11/15 kW and a maximum torque of 1060 Nm.
Axis travels are 320 mm on the X-axis and 3000 mm on the Z-axis. The lathe includes an 8-position turret with 25 x 25 mm tool shank diameter, suitable for various tooling setups. The tailstock features an adjustment range of 150 mm, a quill diameter of 90 mm, taper of center MK 5, and a tension force of 10 kN.
Feed rates range from 0.0001 to 500 mm/min with rapid traverse speeds up to 6 m/min. The total power requirement for the machine is approximately 33 kVA.
Included equipment comprises a coolant system, hydraulic system, tailstock, and a Kitagawa B-12 8250 three-jaw chuck. The machine also comes with four steady rests: two fixed (20-200 mm and 150-300 mm), one rotating, and one hydraulic.
The lathe features a protective enclosure with a viewing window and a control panel mounted on the right side. The machine shows signs of wear and some paint chipping but remains overall intact and structurally sound. The lathe bed, carriage, and tailstock are visible and appear complete, indicating readiness for operational setup.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Control Fanuc 15-T
Country of origin Japan
Technical Details
turning diameter 360mm
turning length 3000mm
control Fanuc 15-T
turning diameter over bed 630mm
bed width 480mm
Main spindle:
turning speed range - main spindle 3 - 1.800min/-1
transmission ratio 3
power capacity - main spindel 11 / 15kW
max. Torque 1.060Nm
spindle nose JIS A-11
spindle diameter in front bearing 140mm
spindle cone No. 100
spindle bore 85mm
axis stroke:
x-travel max. 320mm
z-travel max. 3000mm
turret:
number of toolpositions 8pos.
Shank diameter 25 x 25mm
Tailstock:
tailstock adjustment 150mm
taper of center MK 5
diameter of quill 90mm
tension force 10kN
max. workpiece weight between centers 1.600kg
feeds:
rapid traverse 6m/min
feed speeds 0,0001 - 500,0000mm/min
total power requirement 33kVA
weight of the machine ca. ca. 6,5t
dimensions of the machine ca. 6,5 x 2,5 x 2,0m
Equipment
Documents
Coolantsystem
Tailstock
hydraulic system

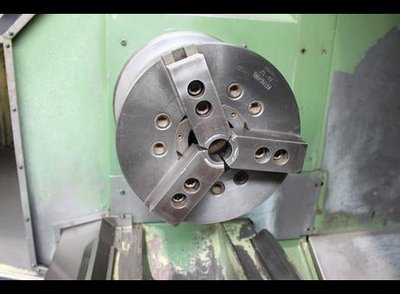

Three Jaw Chuck Kitagawa B-12 8250

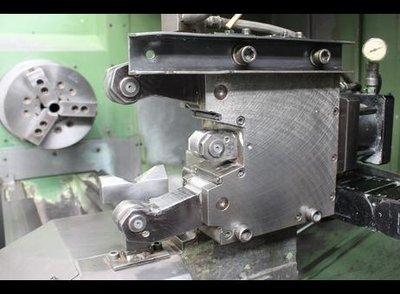

Turret 8 pos.
steady rest 4x
- inkl. 4 steady-rests:
- 1x 20 - 200mm fix
- 1x 150 - 300mm fix
- 1x rotating
- 1x hydraulic
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
