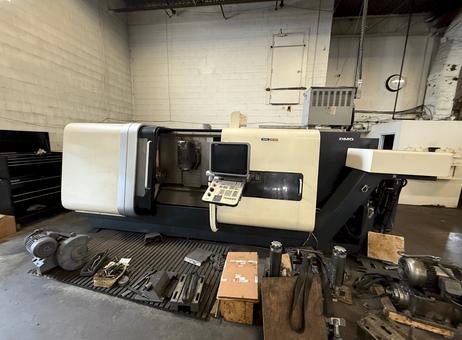

DMG CTX Beta 1250 TC cnc lathe

DMG CTX Beta 1250 TC cnc lathe
Top seller
Make an offer
DMG
CTX Beta 1250 TC
2010
Canada
Lathes - CNC lathes
P250910127
+34 679 …
Turning length
1250 mm
Turning Ø
390 mm
Ø above the bed
500 mm
Ø above transversing slide
500 mm
Length between centers
1425 mm
Type of CNC
SIEMENS SINUMERIK 840D
X-axis
450 mm
Z-axis
1300 mm
Max workpiece weight
7 kg
Spindle taper
Spindle bore
87 mm
Number of turrets
1
Number of tools on turret
24
Number of rotating tools
24
Turning speed
5000 rpm
Spindle motor power
34 kW
Tailstock
no
Bar feeder
no
Length x width x height
5700.0 × 2700.0 × 2100.0
Weight
7950 kg
as-is, where-is
Datasheet
DMG CTX beta 1250 TC
23/04/2026
This DMG CTX Beta 1250 TC is a 5-axis CNC turn-mill center designed for precision machining tasks. Manufactured in 2010, it features a turning length of 1250 mm and a maximum swing diameter above the bed of 500 mm, with a maximum turning diameter of 390 mm. The machine supports workpieces up to 7 kg in weight. The spindle is equipped with a bore diameter of 87 mm and can reach speeds up to 5000 rpm, powered by a 34 kW spindle motor. The machine includes a single turret capable of holding 24 tools, allowing for versatile machining operations. The machine measures 5700 mm in length, 2700 mm in width, and 2100 mm in height, with a total weight of 7950 kg. It is controlled by a SIEMENS SINUMERIK 840D solution line with ERGOline control and ShopTurn software running on a Windows operating system. The rapid traverse speeds for the X, Y, and Z axes are each 30 m/min. The upper slide travels include 450 mm on the X-axis, ±100 mm on the Y-axis, and 1300 mm on the Z-axis. Additional features include a CAPTO C6 turning-milling spindle with a maximum speed of 12000 RPM and a B-axis with a positioning angle of ±110°. The machine is equipped with an enclosed machining area accessed via a sliding door, enhancing safety and cleanliness during operation. A control panel with screen and keypad is mounted on the front side for operator interface. Various hydraulic and electrical components, including a cooling unit and electrical cabinet with warning labels, are mounted on the rear of the machine. The machine shows signs of use with some dirt and wear visible but appears to be in generally good physical condition. Several tools and accessories are laid out near the machine, indicating readiness for operation or maintenance. This DMG CTX Beta 1250 TC is suitable for complex machining tasks requiring multi-axis capabilities and a robust tool magazine. For further details or inquiries, please contact us. This 5-axis DMG CTX Beta 1250 TC turn-mill centre was manufactured in 2010. It features a swing diameter of 500 mm, max turning diameter of 390 mm, and a turning length of 1250 mm. The spindle supports up to 5000 RPM and 34 kW power, complemented by a 24-position tool magazine. Ideal for complex machining tasks, consider the opportunity to buy this DMG CTX Beta 1250 TC turn-mill centre. Contact us for more information about this machine. Measurements width: 2700 mm
Measurements depth: 5700 mm
Measurements height: 2100 mm
Machine weight: 7950 kg
Brand: SIEMENS

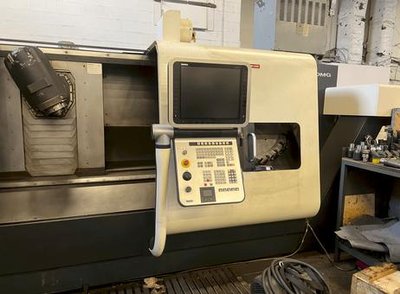

Model: SINUMERIK 840D solution line with ERGOline control and ShopTurn, operating system Windows
Spindle speed range: 5000
Spindle bore: 87 mm
Number of axis: 5
X-Axis Rapid Traverse: 30 m/min
Y-Axis Rapid Traverse: 30 m/min
Z-Axis Rapid Traverse: 30 m/min
Pinol tool taper: MT 5
Max weight: 7 kg
Max tool diameter: 80
Draw bar diameter (internal): 68 mm
Spindle diameter (front bearing): 130 mm
Max. Torque (100/40%): 280 / 380 nm
C-axis speed: 200 rpm
C-axis torque: 280 nm
Min. Angular resolution: 0. 001°
Tool magazine capacity: 24 positionsLinear Axes
Upper Slide Travel X1: 450 mm (−10 mm)
Upper Slide Travel Y1: ±100 mm
Upper Slide Travel Z1: 1300 mm
Turning-Milling Spindle (CAPTO C6)
Max. Speed: 12000 RPM
Power (100/40%): 13 / 22 kW
Max. Torque (100/40%): 60 / 100 Nm
Min. Angular Resolution: 0.001°
Locking Moment: 1000 Nm
B-Axis
Positioning Angle: ±110°
Rotational Speed: 36000°/min
Torque (B-Axis): 344 / 614 Nm
Min. Angular Resolution: 0.001°
Locking Moment (Pneumatic): 2800 Nm
Tailstock
Traverse: 1200 mm
Electrical Requirements
Power Supply: 400 VAC, 60 Hz, 3 Ph
Connected Load: 72 kVA
