DMG MORI CTX ALPHA 500 V4

DMG MORI CTX ALPHA 500 V4
Verified seller
72,000 €
Make an offer
Manufacturer
DMG MORI
Model
CTX ALPHA 500
Year
2014
Location
Netherlands
Category
Lathes - CNC lathes
Product id
P260420032
Buy this machine
Language
Language
DMG MORI CTX ALPHA 500 V4
DMG MORI CTX ALPHA 500 V4
DMG MORI CTX ALPHA 500 V4
DMG MORI CTX ALPHA 500 V4
DMG MORI CTX ALPHA 500 V4
DMG MORI CTX ALPHA 500 V4
DMG MORI CTX ALPHA 500 V4
DMG MORI CTX ALPHA 500 V4
DMG MORI CTX ALPHA 500 V4
DMG MORI CTX ALPHA 500 V4
DMG MORI CTX ALPHA 500 V4
DMG MORI CTX ALPHA 500 V4
DMG MORI CTX ALPHA 500 V4
DMG MORI CTX ALPHA 500 V4
DMG MORI CTX ALPHA 500 V4
DMG MORI CTX ALPHA 500 V4
DMG MORI CTX ALPHA 500 V4
DMG MORI CTX ALPHA 500 V4
DMG MORI CTX ALPHA 500 V4
DMG MORI CTX ALPHA 500 V4
Get price & details
+316 22 …
Show phone
Details
About this seller
Specifications
Turning length
500 mm
Turning Ø
240 mm
Ø above the bed
500 mm
Ø above transversing slide
290 mm
Length between centers
700 mm
Type of CNC
X-axis
210 mm
Z-axis
525 mm
Spindle taper
Spindle bore
73 mm
Turning speed
5500 rpm
Spindle motor power
13 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
4447.0
× 2378.0
× 1808.0
Weight
4300 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Dmg Mori CTX alpha 500
Last availability date
01/05/2026
Show more
Automatic description (AI-Generated)

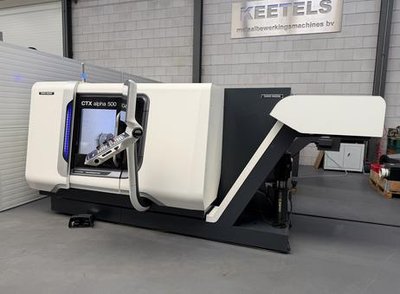

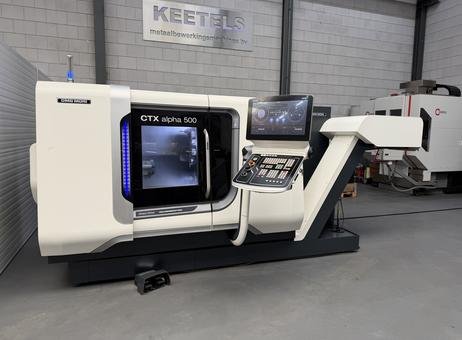

This listing features a DMG MORI CTX ALPHA 500 CNC lathe, manufactured in 2014. It is a precision turning machine designed for high-performance machining tasks. The machine has a compact footprint with dimensions of 4447 mm in length, 2378 mm in width (including the PLC), and 1808 mm in height, and it weighs approximately 4300 kg.
The lathe offers a maximum turning length of 500 mm and a turning diameter up to 240 mm. The swivel diameters are 500 mm above the bed and 290 mm above the transversing slide. The X-axis travel measures 210 mm, while the Z-axis travel extends to 525 mm, allowing for versatile machining operations. The spindle features a bore diameter of 73 mm and operates at speeds up to 5500 rpm.

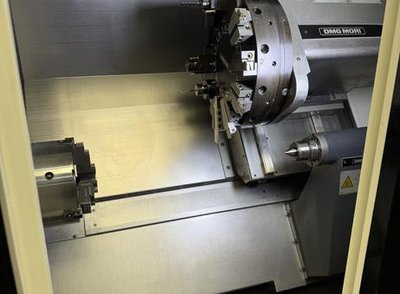

The machine is equipped with a spindle nose type FL 140h5 and a turret mount VDI 30, featuring 12 tool positions, all of which are driven. It includes a tailstock mount MK4. The control system is the Siemens 840D ShopTurn 3G, enhanced with ERGOline and CELOS software for advanced operation and programming capabilities.
Additional features include a chip conveyor and high-pressure cooling to support efficient machining processes. The lathe is fitted with an SMW Autoblok 210 BB chuck with a diameter of 210 mm and includes a foot pedal for clamping and unclamping the chuck, improving operator convenience.

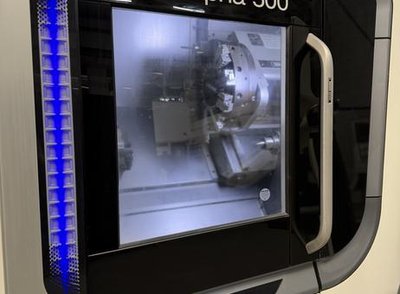

The machine is housed in a clean enclosure with a transparent window and blue LED lighting, contributing to a well-lit and safe working environment. The control panel is mounted on an articulated arm and includes various buttons and a joystick for intuitive operation.
This lathe was primarily used in a prototype department for machining plastic and has recorded only 925 spindle hours, indicating limited use. Overall, the machine appears well-maintained and clean, with no visible damage.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
1. CNC Turning
With only 925 spindle hours, this DMG MORI CTX ALPHA 500 V4 is practically brand new!
The machine comes from a prototype department where it was primarily used for machining plastic.
Additional options & accessories:
- SMW Autoblok 210 BB Ø210mm (incl. chuck set)
- DMG CELOS software
- Chip conveyor
- High-pressure cooling
- Foot pedal for clamping/unclamping the chuck
- Various tool holders (driven & static)
- Original DMG documentation
Weight & dimensions:
4,300 kg
4,447 x 2,378 (incl. PLC) x 1,808 mm
Swivel diameter (top bed): 500 mm
Swivel diameter (top slide): 290 mm
Maximum swivel diameter: 240 mm
Maximum Turning Length: 500 mm
Chuck Plate Diameter: 210 mm
X-Axis Travel: 210 mm
Y-Axis Travel: 80 (+/- 40) mm
Z-Axis Travel: 525 mm
C-Axis Travel: 300 rpm, 170 Nm, 0.001°
Rapid Feed X Y Z: 30 / 22.5 / 30 m/min
Spindle Bore: 73 mm
Speed: 0 - 5500 rpm
Spindle Motor Power: 13 / 14 kW
Spindle Nose: FL 140h5
Turret Mount: VDI 30
Positions on Turret, of which Driven: 12 (all driven)
Tailstock Mount: MK4
Control: Siemens 840D ShopTurn 3G (ERGOline + CELOS)
Spindle Hours: 925
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
