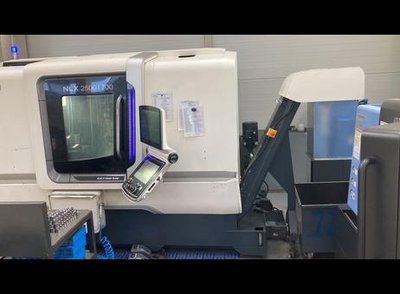

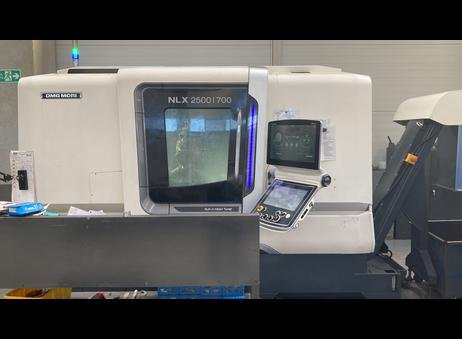

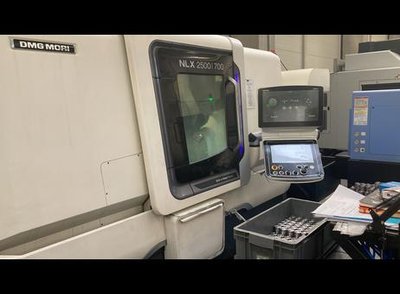

DMG Mori NLX2500SY/700 CNC Lathe

DMG Mori NLX2500SY/700 CNC Lathe
Verified seller
150,000 €
Make an offer
Manufacturer
DMG Mori
Model
NLX2500SY/700
Year
2015
Location
Turkey
Category
Lathes - CNC lathes
Product id
P220722023
Buy this machine
Language
Language
DMG Mori NLX2500SY/700
Soustruh cnc DMG Mori NLX2500SY/700
DMG Mori NLX2500SY/700
DMG Mori NLX2500SY/700 Drehmaschine CNC
DMG Mori NLX2500SY/700
DMG Mori NLX2500SY/700 CNC Lathe
Torno cnc DMG Mori NLX2500SY/700
Tour cnc DMG Mori NLX2500SY/700
DMG Mori NLX2500SY/700
DMG Mori NLX2500SY/700
Tornio cnc DMG Mori NLX2500SY/700
DMG Mori NLX2500SY/700
DMG Mori NLX2500SY/700
Tokarka CNC DMG Mori NLX2500SY/700
DMG Mori NLX2500SY/700
DMG Mori NLX2500SY/700
DMG Mori NLX2500SY/700 Токарный станок с ЧПУ
DMG Mori NLX2500SY/700
DMG Mori NLX2500SY/700
Cnc torna DMG Mori NLX2500SY/700
Get price & details
Details
About this seller
Specifications
Turning length
705 mm
Turning Ø
366 mm
Ø above the bed
920 mm
Ø above transversing slide
742 mm
Type of CNC
CELOS ERGOline
X-axis
260 mm
Z-axis
795 mm
Spindle taper
JIS A2-5
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
3981.0
× 2106.0
× 2200.0
Weight
6300 kg
worked hours
hours under power
state
good
At local norms
---------
status
Last availability date
13/03/2026
Show more
Automatic description (AI-Generated)

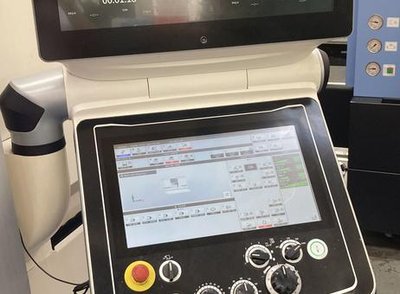

The DMG Mori NLX2500SY/700 is a CNC lathe designed for precision machining tasks, featuring a compact footprint with dimensions of 3981 mm in length, 2106 mm in width, and 2200 mm in height, and a total weight of 6300 kg. This model is equipped with a CELOS ERGOline CNC controller, which integrates a touchscreen interface alongside physical buttons for versatile and user-friendly operation.
The machine offers substantial machining capacity, including an X-axis travel of 260 mm, a Y-axis travel of ±50 mm, and a Z-axis travel of 795 mm. The turning length is 705 mm, with a swing diameter of 366 mm, a swing over the bed of 920 mm, and a swing over the cross-slide of 742 mm. It supports bar work capacity up to 80 mm.
The upper turret holds 10 tool slots, capable of speed-driven tools operating at up to 10,000 RPM, powered by drives rated at 5.5 kW and 3.7 kW. The main spindle reaches speeds up to 4,000 RPM with a drive power of 18.5/15 kW, featuring a spindle bore diameter of 111 mm and a JIS A2-8 spindle nose. The counter spindle operates at speeds up to 6,000 RPM with a drive power of 11/7.5 kW, a spindle bore of 73 mm, and a JIS A2-5 spindle nose, with a counter spindle travel of 734 mm.
Additional equipment includes a chip conveyor, signal lamp, tool measuring arm, part catcher, and a variety of jaws and tools. The machine has been under power for 35,850 hours as of July 2022 and has a rated power of 40.27 kVA.
Visually, the machine appears clean and well-maintained without visible damage. The control panel features a combination of touchscreen and physical buttons, and the machine includes a built-in motor turret. This combination of features and specifications makes the DMG Mori NLX2500SY/700 a versatile and capable CNC lathe suited for a range of turning applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
DMG Mori NLX2500SY/700 CNC Lathe
CNC controller: CELOS ERGOline
Capacity
X-axis travel mm: 260
Y-axis travel mm: ±50
Z-axis travel mm: 795
Turning length mm: 705
Swing diameter mm: ø 366
Swing over bed mm: ø 920
Swing over cross-slide mm: ø742
Bar work capacity mm: 80
Upper turret
Number of tool slots St .: 10
Speed driven tools RPM: 10.000
Drive power driven tools kW: 5,5/3,7
Main spindle
Speed spindle rpm: 4.000
Drive power spindle kW: 18,5/15
Spindle bore mm: ø111
Spindle nose: JIS A2-8
Counter spindle
Speed spindle rpm: 6.000
Drive power spindle kW: 11/7,5
Spindle bore mm: ø73
Spindle nose: JIS A2-5
Counter spindle travel mm: 734
Equipment
Chip conveyor
Signal lamp
Tool measuring arm
part catcher
various jaws
various tools
Working time hours
Under power:35850(July 2022)
Rated power kVA: 40,27
