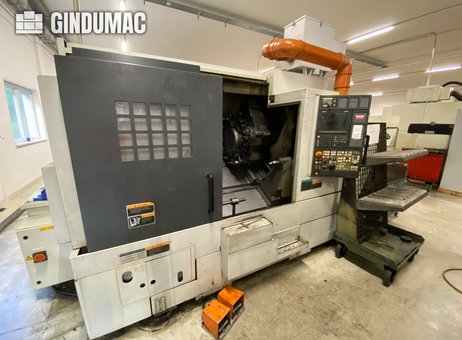

DMG Mori Seiki NL2500Y/700 CNC lathe
34.00 €
Do negocjacji
| Strona główna | gebraucht |
|---|---|
| Producent | DMG |
| Rok produkcji | 2006 |
| Manufacturer | DMG Mori Seiki |
| Model | NL2500Y/700 |
| Year | 2006 |
| Location | Germany |
| Category | Lathes - CNC lathes |
| X-axis | 210 mm |
| Z-axis | 810 mm |
| Tailstock | no |
| Bar feeder | no |
| Weight | 6100 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | DMG Mori Seiki NL2500Y/700 |
| Last availability date | 05/10/2026 |
| Product id | P260917187 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2050 |
| Last activity | Oct. 7, 2026 |
| Turning length | 185 mm |
| Type of CNC | SIEMENS 840 D - SL |
| Number of turrets | 1 |
| Number of rotating tools | 12 |
| Spindle motor power | 16 kW |
| Turning Ø | 170 mm |
| Spindle taper | A2-8 |
| Number of tools on turret | 12 |
| Turning speed | 7000 rpm |
| Ø above the bed | 800 mm |
| Length between centers | 890 mm |
| Max workpiece weight | kg |
| Spindle bore | 75 mm |
| Ø above transversing slide | 250 mm |
Opis
This 4-axis DMG Mori Seiki NL2500Y/700 was manufactured in 2006. It features a robust control unit, MORI SEIKI MSX-850, and includes an integrated mist extraction unit, chip conveyor, tailstock, turret, and tool setter. With a mass of 6100 kg, this turn-mill centre is designed for high-performance machining. If you are looking to get high-quality turning and milling capabilities, consider the DMG Mori Seiki NL2500Y/700 machine we have for sale. Contact us for further details.- Phase: 3
- Frequency: 50 Hz
- Voltage: AC 200 V
- Full Load Current: 113 A
- Current Rating of the Spindle Motor: 140 A
- Interrupting Capacity: 5 kA
- Short Circuit Rating: 1 kA
- Rated Power: 39 kVA
- Mass of Machine: 6100 kg

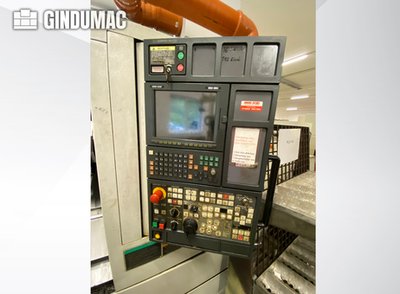

- Control Unit: MORI SEIKI MSX-850

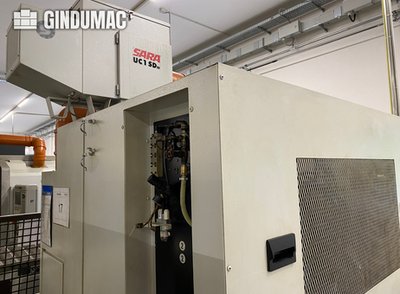

- Additional Equipment / Attachments: Integrated mist extraction unit (SARA UC1 SDIV), chip conveyor / chute integration, tailstock, turret, tool setter / probe arm
Counter Spindle: no
Driven Tools: yes
Machine Weight: 6100 kg
Number of Axes: 4
X-axis Travel: 260 mm
Z-axis Travel: 795 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
- Frequency: 50 Hz
- Voltage: AC 200 V
- Full Load Current: 113 A
- Current Rating of the Spindle Motor: 140 A
- Interrupting Capacity: 5 kA
- Short Circuit Rating: 1 kA
- Rated Power: 39 kVA
- Mass of Machine: 6100 kg
- Control Unit: MORI SEIKI MSX-850
- Additional Equipment / Attachments: Integrated mist extraction unit (SARA UC1 SDIV), chip conveyor / chute integration, tailstock, turret, tool setter / probe arm
Counter Spindle: no
Driven Tools: yes
Machine Weight: 6100 kg
Number of Axes: 4
X-axis Travel: 260 mm
Z-axis Travel: 795 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
