DMG MORI SEIKI NLX1500MC / 500 cnc tokarka

Problems viewing the video? Watch on YouTube. DMG MORI SEIKI NLX1500MC/500 cnc lathe
Top seller
View price
DMG MORI SEIKI
NLX1500MC/500
2014
France
Lathes - CNC lathes
P260126085
Turning length
564 mm
Turning Ø
386 mm
Ø above the bed
923.8 mm
Ø above transversing slide
755 mm
Length between centers
512 mm
Type of CNC
MAPPS M730BL
X-axis
260 mm
Z-axis
590 mm
Spindle taper
A2-5"
Spindle bore
51 mm
Number of turrets
1
Number of tools on turret
12
Number of rotating tools
12
Turning speed
6000 rpm
Spindle motor power
11 kW
Tailstock
yes
Bar feeder
yes
Length x width x height
2900.0 × 2100.0 × 2120.0
Weight
5500 kg
11996 hours
11996 hours
excellent
yes
under power
Datasheet
Mori Seiki NLX 1500MC/500
24/04/2026

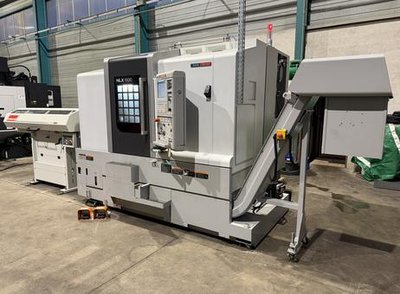

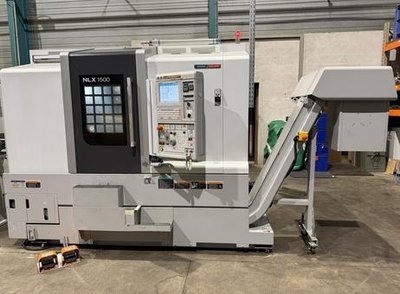

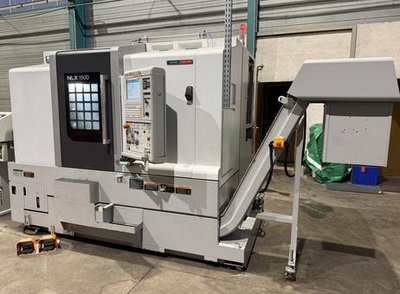

This listing features a DMG MORI SEIKI NLX1500MC/500 CNC lathe manufactured in 2014. The machine has overall dimensions of 2900 mm in length (excluding the bar feeder), 2100 mm in width, and 2120 mm in height, with a total weight of approximately 5500 kg. It is equipped with a spindle motor delivering 11 kW of power and offers a maximum spindle speed of 6000 rpm. The lathe provides a turning length of 564 mm and a turning diameter above the bed of 923.8 mm, with a turning diameter above the transversing slide of 755 mm. The X-axis and Z-axis travels are 260 mm and 590 mm respectively, supporting precise machining operations. The spindle bore measures 51 mm, and the machine features a single turret with 12 motorized tools, all capable of rotating at speeds up to 6000 rpm, powered by 5.5 kW motors. The turret includes 7 motorized tool holders (3 axial and 4 radial) and 15 static tool holders. The lathe includes a programmable tailstock with a B-axis travel of 564 mm. The control system is a MAPPS M730BL CNC with an electronic handwheel and USB port for easy program transfer. Safety and operational convenience are enhanced by an automatic door opening/closing system, a 3-color status light, and an emergency stop button located on the control panel. The machine is fitted with a KITAGAWA BB208 hydraulic chuck and a HAINBUCH COMBI TOPlus collet chuck (size 65), with a range of collets included. The lathe also features a coolant pump, oil cooler, chip conveyor with safety switch, and a workpiece catcher. A SAMSYS MULTI-3000 bar feeder for 1000 mm short bars is attached, mounted on adjustable feet with floor mounts and a transparent cover for material loading. The electrical cabinet includes ventilation grills and warning labels, with no visible damage or corrosion on rear components. The machine appears clean and well-maintained, with minor signs of use such as smudges and wear marks but no visible damage. Included accessories are documentation and a CD-ROM. Transport and handling locking brackets are present. This CNC lathe is immediately available for purchase. • Year 2014
• Number of hours: 11,996
• Maximum diameter above bed
• Maximum diameter above carriage
• Maximum turning diameter without interference: 366 mm
• X-axis travel: 260 mm
• Z-axis travel: 590 mm
• C-axis: 360,000°
• Turning length: 515 mm
• Spindle nose: A2-5"
• Spindle bore: 61 mm
• Bar capacity: 52 mm
• Spindle speed: 6,000 rpm
• Spindle motor power: 11 kW
• 12-station turret, all motorized
• Indexing time: 0.25 sec
• Motorized tool speed: 6,000 rpm
• Motorized tool power: 5.5 kW
• Programmable tailstock, B-axis travel: 564 mm
• Tool gauge probe arm

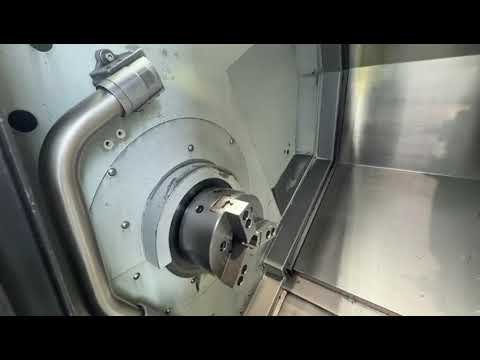

• Hydraulic chuck KITAGAWA BB208
• 7 motorized tool holders: 3 axial, 4 radial
• 15 static tool holders
• KITAGAWA BB208 hydraulic chuck
• HAINBUCH COMBI TOPlus collet chuck, size 65
• HAINBUCH collets: Ø 6.5-10-16-18-20-25-26-30-40 mm: Square 20x20-35x35-40x40 mm: Hex 14 mm
• Workpiece catcher
• Automatic door opening/closing
• Chip conveyor
• Coolant pump
• Oil cooler
• Transformer
• MAPPS M730BL CNC
• Electronic handwheel
• USB port
• 3-color status light
• Climate-controlled cabinet
• Bar feeder interface

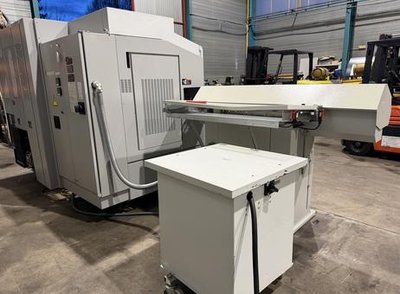

• SAMSYS MULTI-3000 bar feeder, 1000 short bar mm
• Documentation & CD-ROM
• Transport and handling locking brackets
• Dimensions: 2900 (without bar feeder) x 2100 x 2120 mm
• Weight: 5.5 kg
• Machine in perfect condition
• Attractive presentation
• Very good condition
• Immediately available
