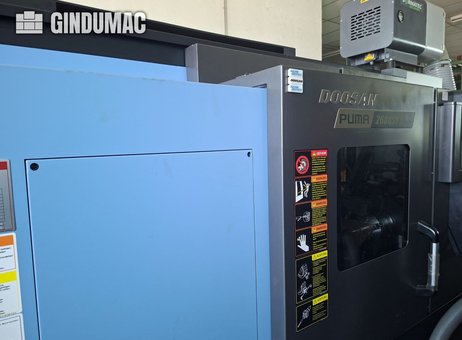

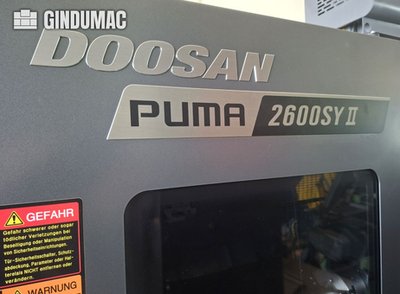

DOOSAN PUMA 2600 SY II CNC lathe

DOOSAN PUMA 2600 SY II CNC lathe
Top seller
Price on request
View price
Manufacturer
DOOSAN
Model
PUMA 2600 SY II
Year
2022
Location
Germany
Category
Lathes - CNC lathes
Product id
P260424757
Buy this machine
Language
Language
CNC струг DOOSAN PUMA 2600 SY II
CNC soustruh DOOSAN PUMA 2600 SY II
DOOSAN PUMA 2600 SY II CNC-drejebænk
DOOSAN PUMA 2600 SY II CNC-Drehmaschine
Τόρνος CNC DOOSAN PUMA 2600 SY II
DOOSAN PUMA 2600 SY II CNC lathe
Torno CNC DOOSAN PUMA 2600 SY II
Tour CNC DOOSAN PUMA 2600 SY II
CNC tokarski stroj DOOSAN PUMA 2600 SY II
DOOSAN PUMA 2600 SY II CNC esztergagép
Tornio CNC DOOSAN PUMA 2600 SY II
DOOSAN PUMA 2600 SY II CNC tekinimo staklės
DOOSAN PUMA 2600 SY II CNC-draaibank
Tokarka CNC DOOSAN PUMA 2600 SY II
Torno CNC DOOSAN PUMA 2600 SY II
Strung CNC DOOSAN PUMA 2600 SY II
DOOSAN PUMA 2600 SY II Токарный станок с ЧПУ
CNC strug DOOSAN PUMA 2600 SY II
DOOSAN PUMA 2600 SY II CNC-svarv
CNC torna DOOSAN PUMA 2600 SY II
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
760 mm
Turning Ø
255 mm
Ø above the bed
780 mm
Type of CNC
Siemens S828D
X-axis
260 mm
Z-axis
830 mm
Max workpiece weight
250 kg
Spindle taper
Spindle bore
91 mm
Number of tools on turret
24
Number of rotating tools
12
Turning speed
6000 rpm
Spindle motor power
22 kW
Tailstock
yes
Bar feeder
no
-------------------
Length x width x height
3857.0
× 1985.0
× 1915.0
Weight
6550 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Doosan Puma 2600 LSY II
Last availability date
30/04/2026
Show more
Automatic description (AI-Generated)
The DOOSAN PUMA 2600 SY II is a 6-axis horizontal turning machine manufactured in 2022, designed for versatile and precise machining operations. This model features a maximum turning diameter of 255 mm and a maximum turning length of 760 mm, making it suitable for a wide range of turning applications. The machine is equipped with a 24-station tool turret (BMT65P interface), including 12 driven tool stations, which allows for complex machining tasks with driven tools, Y-axis movement, and a sub-spindle.
The main spindle is a built-in motor spindle with a maximum speed of 6000 rpm and a chuck diameter of 255 mm. It offers a maximum torque of approximately 706 Nm and a bore size of 91 mm. The sub-spindle also features a built-in motor spindle with a chuck diameter of 175 mm and a bore size of 52 mm. Both spindles provide C-axis functionality with 360° resolution and speeds up to 200 rpm, enabling advanced machining operations.
The machine supports a maximum workpiece weight of 250 kg, including the chuck. Rapid traverse rates are approximately 30 m/min for the X and Z axes and 10 m/min for the Y axis. The bed is angled at 30°, contributing to efficient chip removal and machining accuracy.
Additional features include an automatic tool measuring arm, dynamic spindle speed control, an electronic safety clutch for X and Z axes, and a counter spindle with tailstock function. The machine incorporates a central automatic lubrication system and has a coolant tank capacity of approximately 220 liters with a maximum coolant flow of 448 L/min.

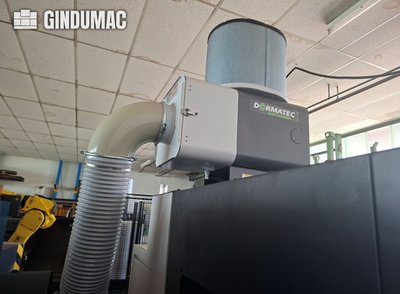

This DOOSAN PUMA 2600 SY II comes with a LNS hinged belt chip conveyor mounted on the right side (without filtration) and a Dormatec AF-30P oil mist extraction system, which is visible as a large air filtration unit connected via a flexible hose. The machine body features blue and black panels with multiple safety and operational labels in German and English. The interior machining area is clean and well-maintained, equipped with a three-jaw chuck and tool holders.
The machine's dimensions are 3857 mm in length, 1985 mm in width, and 1915 mm in height, with a total weight of 6550 kg. It operates on a 3-phase AC 380 V electrical connection and has a total power consumption of approximately 69.27 kVA. The control system is Siemens S828D with a 15-inch touchscreen display featuring ShopTurn software.
This DOOSAN PUMA 2600 SY II is a robust and capable turning machine suitable for demanding industrial applications, offering advanced features and accessories to support efficient and precise machining.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
This 6-axis DOOSAN PUMA 2600 SY II was manufactured in 2022. It features a maximum turning diameter of 255 mm and a turning length of 760 mm. The machine is equipped with a 24-station tool turret and driven tools, providing versatile machining capabilities. If you are looking to get high-quality turning capabilities, consider the DOOSAN PUMA 2600 SY II horizontal turning machine we have for sale. Contact us for further details.Siemens S828D Control touchscreen with ShopTurn 15 inch display
6-axis configuration with driven tools, Y-axis and sub-spindle
Main and sub-spindle as built-in motor spindles
Cylindrical roller bearing, accuracy class P4, lifetime lubrication
Main spindle chuck diameter 255 mm
Sub-spindle chuck diameter 175 mm
Hollow clamping device, hydraulically actuated
Hollow clamping cylinder
24-station tool turret (BMT65P interface)
Automatic tool measuring arm, electrically swiveling
Dynamic spindle speed control
Counter spindle with tailstock function
Coolant flow max 448 L per minute
Oil flow 336 L per minute
Electronic safety clutch for X and Z axes
Working area swing over bed 780 mm
Swing over cross slide 630 mm
Max turning diameter 255 mm
Max turning length 760 mm
Bar capacity 76 mm
Max workpiece weight including chuck 250 kg
Main spindle bore 91 mm
Max torque approx 706 Nm
Sub-spindle bore 52 mm
Spindle speed up to 6000 rpm
Motor power approx 18.5 kW
Torque approx 118 Nm
C-axis main spindle: 360° resolution 0.001°, speed 200 rpm, torque approx 1508 Nm
C-axis sub-spindle: 360° resolution 0.001°, speed 200 rpm, torque approx 121 Nm
Turret: 12 driven tool stations out of 24
Max driven tool speed 5000 rpm
Driven tool power approx 7.5 kW
Driven tool torque approx 50 Nm
Rapid traverse X and Z approx 30 m/min; Y approx 10 m/min
Bed angle 30°
Coolant tank capacity approx 220 liters
Coolant pump pressure 7 bar
Hydraulic tank approx 20 liters
Central lubrication automatic system
Electrical connection AC 380 V, 3-phase, 50/60 Hz
Total power approx 69.27 kVA
Additional equipment
LNS hinged belt chip conveyor, right side, without filtration
Dormatec AF-30P oil mist extraction system
Boring bar holders, diameter 50 mm to 25 mm
Double boring bar holder, diameter 32 mm
Reducing sleeves set: 40/10, 40/12, 40/16, 40/20, 40/25, 40/32
U-drill reducing sleeves: 40/20, 40/25, 40/32
Two Eppinger driven tool holders BMT65P, straight, with external cooling
Control Brand: SIEMENS
Counter Spindle: yes
Driven Tools: yes
Machine Height: 1915 mm
Machine Length: 3857 mm
Machine Weight: 6550 kg
Machine Width: 1985 mm
Number of Axes: 6
Spindle Power: 22 kW
Spindle Speed: 4000 RPM
X-axis Travel: 260 mm
Y-axis Travel: 105 mm
Z-axis Travel: 830 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
