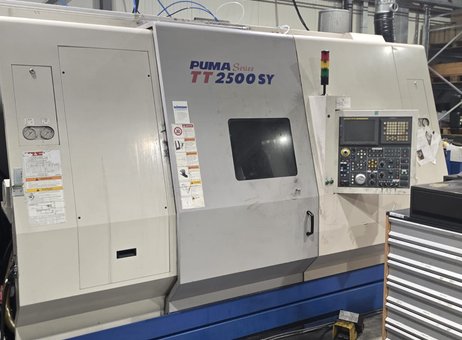

DOOSAN Puma TT 2500 SY cnc lathe
34.00 €
Do negocjacji
| Strona główna | gebraucht |
|---|---|
| Producent | Fanuc |
| Rok produkcji | 2006 |
| Manufacturer | DOOSAN |
| Model | Puma TT 2500 SY |
| Year | 2006 |
| Location | Serbia |
| Category | Lathes - CNC lathes |
| Turning length | 760 mm |
| Turning Ø | 376 mm |
| Ø above the bed | 780 mm |
| Type of CNC | Fanuc |
| X-axis | 260 mm |
| Z-axis | 830 mm |
| Number of turrets | 1 |
| Turning speed | 3500 rpm |
| Spindle motor power | 22 kW |
| Tailstock | no |
| Bar feeder | no |
| state | as-is, where-is |
| At local norms | --------- |
| Last availability date | 06/09/2026 |
| Product id | P251230075 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 1990 |
| Last activity | Sept. 9, 2026 |
| Number of rotating tools | 12 |
| Spindle taper | A2-5" |
| Number of tools on turret | 12 |
| Length between centers | 1100 mm |
| Ø above transversing slide | 630 mm |
| Spindle bore | 76 mm |
| Max workpiece weight | 5300 kg |
Opis
This 6-axis DOOSAN Puma TT 2500 SY was manufactured in 2006. It is a multi-spindle turning machine featuring twin spindles and twin turrets, equipped with a Fanuc 18i-TB control. Key specifications include a maximum turning diameter of 330 mm, turning length up to 500 mm, and bar capacity of 76 mm. Main spindle speed reaches 3500 RPM, while the sub-spindle can go up to 6000 RPM. If you are looking to get high quality turning capabilities consider the DOOSAN Puma TT 2500 SY machine we have for sale. Contact us for more information.Max turning diameter: 330 mm (12.99 in); upper turret: 390 mm
Max turning length: 500 mm (19.6 in)
Bar capacity (main spindle): 76 mm (2.99 in)
Travels: X 250 mm (9.84 in), Y ±50 mm (±1.97 in), Z 580 mm (22.8 in)
Sub spindle speed: 6000 rpm
Sub spindle motor power: 7.5 / 11 kW
Notes: Series introduced mid-2000s
Control Brand: FANUC
Number of Axes: 6
Spindle Power: 22 kW
Spindle Speed: 3600 RPM
X-axis Travel: 250 mm
Y-axis Travel: 50 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Max turning length: 500 mm (19.6 in)
Bar capacity (main spindle): 76 mm (2.99 in)
Travels: X 250 mm (9.84 in), Y ±50 mm (±1.97 in), Z 580 mm (22.8 in)
Sub spindle speed: 6000 rpm
Sub spindle motor power: 7.5 / 11 kW
Notes: Series introduced mid-2000s
Control Brand: FANUC
Number of Axes: 6
Spindle Power: 22 kW
Spindle Speed: 3600 RPM
X-axis Travel: 250 mm
Y-axis Travel: 50 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
