EMAG VSC 400 CNC lathe

EMAG VSC 400 CNC lathe
Top seller
View price
Request price
+34 679 …
EMAG
VSC 400
2007
Germany
Lathes - CNC lathes
Turning length
mm
Turning Ø
400 mm
Ø above the bed
420 mm
Ø above transversing slide
mm
Length between centers
mm
Type of CNC
X-axis
850 mm
Z-axis
315 mm
Max workpiece weight
kg
Spindle taper
Spindle bore
mm
Number of turrets
Number of tools on turret
Number of rotating tools
Turning speed
4000 rpm
Spindle motor power
58 kW
Tailstock
no
Bar feeder
no
Length x width x height
9500.0 × 4500.0 × 3000.0
Weight
9000 kg
as-is, where-is
Datasheet
Emag VSC 400
11/08/2026
P260804128
Machine overview

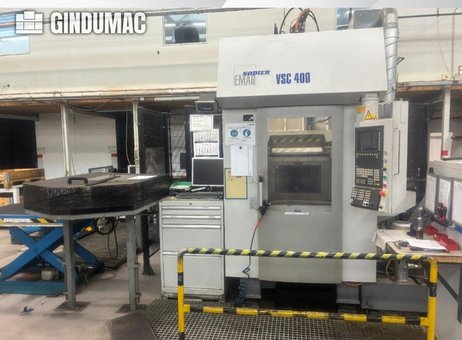

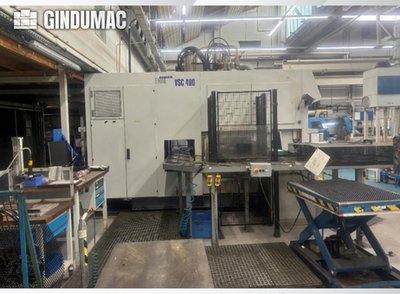

This listing is for an EMAG VSC 400 vertical turning machine, manufactured in 2007. The machine is specified as a 2-axis vertical lathe designed for hard turning and dry machining applications. Key specifications
- Manufacturer / model: EMAG VSC 400
- Year manufactured: 2007
- Turning diameter (turn Ø): 400 mm
- Swing diameter (Ø above the bed): 420 mm
- X-axis travel: 850 mm
- Z-axis travel: 315 mm
- Maximum spindle speed: 4,000 rpm
- Spindle motor power: 58 kW
- Spindle head: DIN 55026 - Size 11
- Spindle bearing diameter: 140 mm
- Number of axes: 2
- Driven tools: no
Feed, traverse and forces
- Rapid traverse X / Z: 45 / 30 m/min
- Feed force Z / X: 11 kN

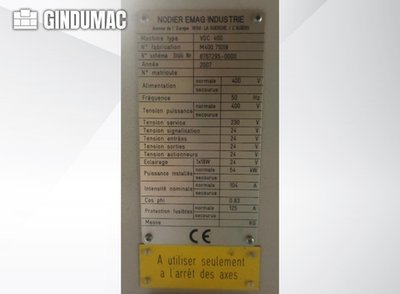

Electrical / power information (as listed)
- Total power requirement: 58 kW
- Installed power (nameplate): 54 kW
- Frequency: 50 Hz
- Voltage (power): 400 V
- Control voltage: 230 V
- Nominal current: 104 A
- Power factor (cos phi): 0.83
- Fuse protection: 125 A
Features called out in the specification
- Hard turning capable
- Dry machining capable
- Chip conveyor
Physical dimensions and weight
- Length: 9,500 mm
- Width: 4,500 mm
- Height: 3,000 mm
- Weight: 9,000 kg
Notes
- Some commonly requested data points (e.g., turning length/length between centers, maximum workpiece weight, spindle bore, number of turrets/tools) are not specified in the provided information. Please request any additional documentation or clarification if you require those details. Vertical turning machine manufactured in 2007. This EMAG VSC 400 features a turning diameter of 400 mm and a swing diameter of 420 mm. It offers an X-travel of 850 mm and Z-travel of 315 mm, with a maximum spindle speed of 4000 rpm. If you are looking to get high-quality turning capabilities, consider the EMAG VSC 400 machine we have for sale. Contact us for further details regarding this machine.- Turning Diameter: 400 mm
- Swing Diameter: 420 mm
- Spindle Head: DIN 55026 - Size 11
- Spindle Bearing Diameter: 140 mm
- Rapid Traverse X + Z Axes: 45 / 30 m/min
- Feed Force Z/X: 11 kN
- Total Power Requirement: 58 kW
- Installed Power (Nameplate): 54 kW
- Frequency: 50 Hz
- Voltage (Power): 400 V
- Control Voltage: 230 V
- Nominal Current: 104 A
- Cos Phi: 0.83
- Fuse Protection: 125 A
- Features: Hard turning, Dry machining, Chip conveyor
Driven Tools: no
Machine Height: 3000 mm
Machine Length: 9500 mm
Machine Weight: 9000 kg
Machine Width: 4500 mm
Number of Axes: 2
Spindle Power: 58 kW
Spindle Speed: 4000 RPM
X-axis Travel: 850 mm
Z-axis Travel: 315 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase. 2019
