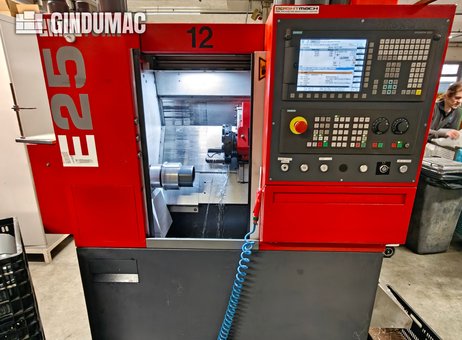

EMCO TURN E25 CNC lathe

EMCO TURN E25 CNC lathe
Top seller
Price on request
View price
Manufacturer
EMCO
Model
TURN E25
Year
2014
Location
Netherlands
Category
Lathes - CNC lathes
Product id
P260224323
Buy this machine
Language
Language
CNC струг EMCO TURN E25
CNC soustruh EMCO TURN E25
EMCO TURN E25 CNC-drejebænk
EMCO TURN E25 CNC-Drehmaschine
Τόρνος CNC EMCO TURN E25
EMCO TURN E25 CNC lathe
Torno CNC EMCO TURN E25
Tour CNC EMCO TURN E25
CNC tokarski stroj EMCO TURN E25
EMCO TURN E25 CNC esztergagép
Tornio CNC EMCO TURN E25
CNC tekinimo staklės EMCO TURN E25
EMCO TURN E25 CNC-draaibank
Tokarka CNC EMCO TURN E25
Torno CNC EMCO TURN E25
Strung CNC EMCO TURN E25
EMCO TURN E25 Токарный станок с ЧПУ
CNC strug EMCO TURN E25
EMCO TURN E25 CNC-svarv
CNC torna EMCO TURN E25
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
225 mm
Turning Ø
85 mm
Ø above the bed
250 mm
Length between centers
405 mm
Type of CNC
Sinumerik 828D
X-axis
100 mm
Z-axis
300 mm
Spindle taper
H5
Number of tools on turret
12
Number of rotating tools
12
Turning speed
6300 rpm
Spindle motor power
5.5 kW
Tailstock
no
Bar feeder
no
-------------------
Weight
1400 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Last availability date
30/04/2026
Show more
Seller's description
Horizontal turning machine manufactured in 2014. These EMCO TURN E25 features a maximum turning diameter of 85 mm and a turning length of 225 mm. Includes a VDI 16 disk turret with 12 tool stations and a maximum chuck size of 100 mm. If you are looking to get high-quality turning capabilities, consider the EMCO TURN E25 machines we have for sale. Contact us for further details. 2 units available.Availability: 2 units
Working range:
Swing over bed: 250 mm
Max. turning diameter: 85 mm
Max. turning length: 225 mm
Max. bar capacity: 25.5 mm
Distance between centers: 405 mm
Main spindle & drive:
Spindle connection: Ø 70 h5
Max. chuck size: Ø 100 mm
Max. torque: 35 Nm
C-axis resolution: 0.001°
Tooling system:
Turret type: VDI 16 disk turret with directional logic
Number of tool stations: 12
Tool shank cross-section: 12 x 12 mm
Feeds & axis performance:
Feed force (X / Z): 3000 N / 3500 N
Rapid traverse (X / Z): 15 m/min / 24 m/min
Positioning spread (Ps): 3 µm
Physical dimensions Utilities:
Supply voltage: 400 V (3/PE)
Total connected load: 6 kVA
Coolant tank capacity: 140 liters
Sound pressure level: 78 dB(A)
Additional equipment
Chip conveyor
Control Brand: SIEMENS
Control Model: Sinumerik 828D
Machine Depth: 1270 mm
Machine Weight: 1400 kg
Machine Width: 1700 mm
Number of Axes: 2
Spindle Power: 5.5 kW
Spindle Speed: 6300 RPM
X-axis Travel: 100 mm
Z-axis Travel: 300 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
