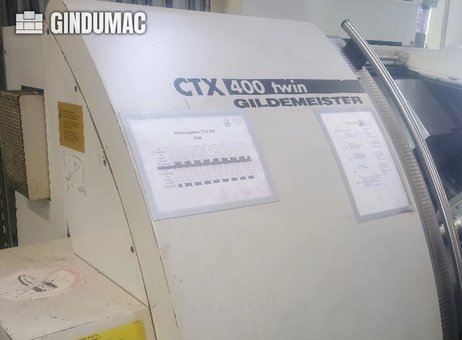

Gildemeister CTX 400 twin CNC lathe
34.00 €
Do negocjacji
| Strona główna | gebraucht |
|---|---|
| Producent | Heidenhain |
| Rok produkcji | 2001 |
| Manufacturer | Gildemeister |
| Model | CTX 400 twin |
| Year | 2001 |
| Location | Austria |
| Category | Lathes - CNC lathes |
| Turning length | 650 mm |
| Turning Ø | 120 mm |
| Ø above the bed | 250 mm |
| Ø above transversing slide | 100 mm |
| Length between centers | 580 mm |
| X-axis | 220 mm |
| Z-axis | 320 mm |
| Max workpiece weight | 3.5 kg |
| Spindle bore | 42 mm |
| Turning speed | 7000 rpm |
| Spindle motor power | 35 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | - × 1750.0 × - |
| Weight | 5700 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Gildemeister CTX 400 TWIN |
| Last availability date | 06/09/2026 |
| Product id | P260821121 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2002 |
| Last activity | Sept. 10, 2026 |
| Type of CNC | Siemens 840D |
| Number of turrets | 2 |
| Number of rotating tools | 12 |
| Spindle taper | VDI 40 |
| Number of tools on turret | 12 |
Opis
This 4-axis Gildemeister CTX 400 twin was manufactured in 2001. It features a maximum swivel diameter over bed of 570 mm and a maximum turning length of 635 mm. The machine is equipped with a Heidenhain CNC Pilot control system and offers a speed range of 25 – 5,000 min⁻¹. If you are looking to get high-quality turning capabilities, consider the Gildemeister CTX 400 twin horizontal turning machine we have for sale. Contact us for further details.- Maximum swivel diameter over bed: 570 mm
- Maximum swivel diameter over cross slide: 420 mm
- Max. turning length: 635 mm
- Bar diameter (main and counter spindle): 65 mm
- Chuck diameter (max.): 250 mm
- Speed range: 25 – 5,000 min⁻¹
- Drive power (main spindle): 28 / 21 kW (100% / 40% duty cycle)
- Max. torque (main spindle): 320 / 240 Nm
- Drive power (counter spindle): 12 / 9 kW
- Spindle bore: 79 mm (spindle bearing 120 mm)
- C-axis: Available (for main and counter spindles / C-axis operation)

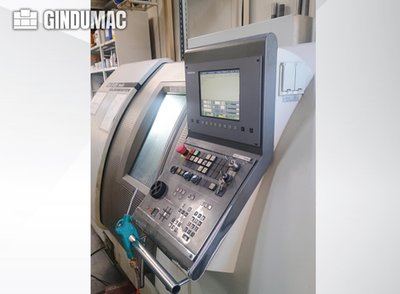

- Control system: Heidenhain CNC Pilot
- Machine width: approx. 1,750 mm (without auxiliary units such as chip conveyors)
- Operating Hours: 60,837 h
- Voltage: 400 V / 230 V / 24 V
- Power: 44 kVA
- Frequency: 50 Hz
- Current: 64 A / 80 A

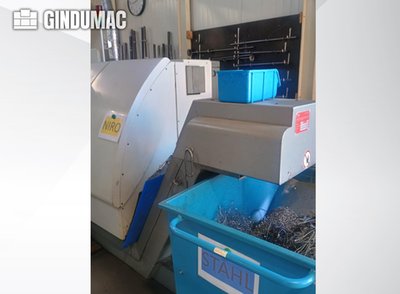

- Included Accessories: 2x jaw chucks, 2x clamping chucks, soft jaws, base jaws, various collets (RD65, RD80, E185, E173, etc.), reduction tubes, chip conveyor (Bürener Maschinenfabrik), cooling unit/filter system, slotting unit (Hub 32), complete documentation manuals
Control Brand: HEIDENHAIN
Counter Spindle: yes
Driven Tools: yes
Machine Weight: 5700 kg
Machine Width: 1750 mm
Number of Axes: 4
Spindle Power: 28 kW
Spindle Speed: 5000 RPM
X-axis Travel: 220 mm
Y-axis Travel: 80 mm
Z-axis Travel: 635 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
