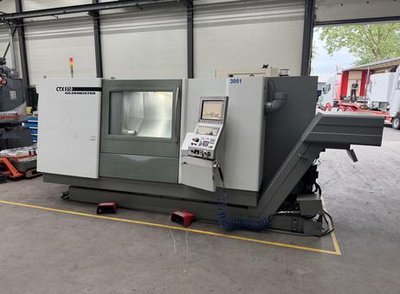

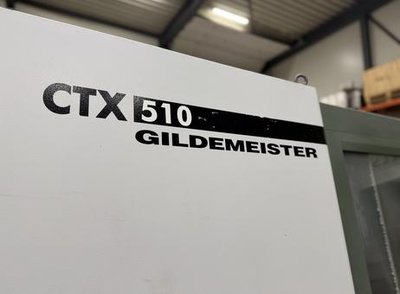

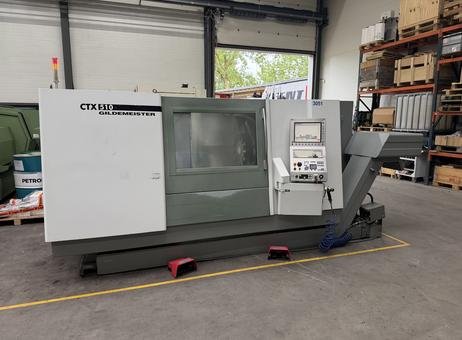

Gildemeister CTX-510 CNC lathe
30000.00 €
Do negocjacji
| Strona główna | gebraucht |
|---|---|
| Producent | Heidenhain |
| Rok produkcji | 2005 |
| Manufacturer | Gildemeister |
| Model | CTX-510 |
| Year | 2005 |
| Location | Netherlands |
| Category | Lathes - CNC lathes |
| Turning length | 600 mm |
| Turning Ø | 33 mm |
| Ø above the bed | mm |
| X-axis | 65 mm |
| Z-axis | 120 mm |
| Spindle bore | mm |
| Turning speed | 8000 rpm |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 4865.0 × 1770.0 × 2120.0 |
| Weight | 7500 kg |
| worked hours | 8982 hours |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Gildemeister CTX-510 |
| Last availability date | 24/09/2026 |
| Product id | P260904148 |
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 47 |
| Last activity | Sept. 24, 2026 |
| Type of CNC | CNC lathe |
| Number of turrets | 8 |
| Number of rotating tools | 3 |
| Spindle motor power | 5.5 kW |
| Spindle taper | VDI 40 |
| Number of tools on turret | 5 |
| Length between centers | mm |
| Max workpiece weight | kg |
| Ø above transversing slide | mm |
Opis
1. CNC Turning
The Gildemeister CTX 510 is a fairly heavy, industrial CNC lathe. It is a machine mainly interesting if you want to machine a lot of material and not just perform light turning tasks. We acquired this machine working from production from the first owner and it is also available for viewing in operational condition! Additional options & accessories:
- Full pallet with static VDI-40 tool holders. - Chip conveyor
- Marposs measuring arm
- Collet holder 173E (Quadro NC - Marquar)
- Guide bush for 185E collet
- Blow gun
- High pressure coolant pump
- Chip conveyor
- Dual foot pedal
- Original Gildemeister documentation. Weight & dimensions:
7,500 kg
4865 x 1770 x 2120 mm (LxWxH incl. chip conveyor)
Turning diameter over bed: 680 mm
Maximum turning diameter: 465 mm
Maximum turning length: 1000 mm
X axis travel: 300 mm
Z axis travel: 1050 mm
C axis travel: 100 rpm, 0.001°
Rapid feed X Y Z: X-Z: 30 m/min
Spindle bore: 76 mm
Speed range: 0 - 3500 rpm
Spindle motor power: 42/31 kW (40%/100% DC)
Spindle nose: FL 220 h5
Turret mounting: VDI-40
Positions on turret powered: 12 (all powered)
Tailstock attachment: MK5
Control: Heidenhain CNC Pilot
Spindle hours: 8982
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The Gildemeister CTX 510 is a fairly heavy, industrial CNC lathe. It is a machine mainly interesting if you want to machine a lot of material and not just perform light turning tasks. We acquired this machine working from production from the first owner and it is also available for viewing in operational condition! Additional options & accessories:
- Full pallet with static VDI-40 tool holders. - Chip conveyor
- Marposs measuring arm
- Collet holder 173E (Quadro NC - Marquar)
- Guide bush for 185E collet
- Blow gun
- High pressure coolant pump
- Chip conveyor
- Dual foot pedal
- Original Gildemeister documentation. Weight & dimensions:
7,500 kg
4865 x 1770 x 2120 mm (LxWxH incl. chip conveyor)
Turning diameter over bed: 680 mm
Maximum turning diameter: 465 mm
Maximum turning length: 1000 mm
X axis travel: 300 mm
Z axis travel: 1050 mm
C axis travel: 100 rpm, 0.001°
Rapid feed X Y Z: X-Z: 30 m/min
Spindle bore: 76 mm
Speed range: 0 - 3500 rpm
Spindle motor power: 42/31 kW (40%/100% DC)
Spindle nose: FL 220 h5
Turret mounting: VDI-40
Positions on turret powered: 12 (all powered)
Tailstock attachment: MK5
Control: Heidenhain CNC Pilot
Spindle hours: 8982
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
