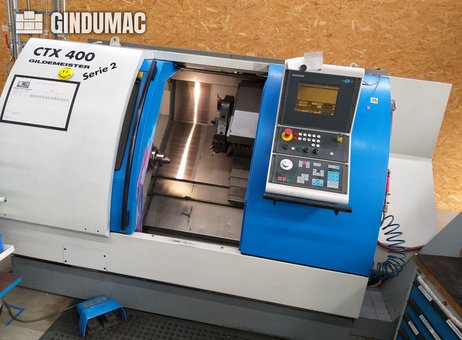

Gildemeister CTX400 Serie2 (1999) CNC lathe
34.00 €
Do negocjacji
| Strona główna | gebraucht |
|---|---|
| Producent | Heidenhain |
| Rok produkcji | 1999 |
| Manufacturer | Gildemeister |
| Model | CTX400 Serie2 (1999) |
| Year | 1999 |
| Location | Germany |
| Category | Lathes - CNC lathes |
| Turning length | mm |
| Turning Ø | mm |
| Ø above the bed | mm |
| Ø above transversing slide | mm |
| Length between centers | mm |
| X-axis | mm |
| Z-axis | mm |
| Max workpiece weight | kg |
| Spindle bore | mm |
| Turning speed | rpm |
| Spindle motor power | kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 3565.0 × 1700.0 × 1700.0 |
| Weight | 5700 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Last availability date | 06/09/2026 |
| Product id | P260813300 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 1990 |
| Last activity | Sept. 9, 2026 |
| Type of CNC | Siemens 840D |
| Number of turrets | 2 |
| Number of rotating tools | 12 |
| Spindle taper | VDI 40 |
| Number of tools on turret | 12 |
Opis
Horizontal turning machine manufactured in 1999. This Gildemeister CTX400 Serie2 features a maximum turning diameter of 420 mm and a distance between centers of 600 mm. It includes a disc turret with 12 tool stations and a maximum spindle speed of 5000 rpm. If you are looking to get high-quality turning capabilities, consider the Gildemeister CTX400 Serie2 machine we have for sale. Contact us for further details.Control Unit Brand: HEIDENHAIN
Control Unit Model: CNC PILOT
Distance Between Centers: 600 mm
Swing Over Bed: 570 mm
Swing Over Cross Slide: 470 mm
Maximum Turning Diameter: 420 mm
Spindle Nose: DIN 55026 Flat Flange Size 170h5
Front Bearing Diameter: 120 mm
Spindle Bore: 79 mm
Maximum Chuck Diameter: 250 mm
Maximum Torque: 320 Nm
Turret Type: Disc Turret
Tool System: VDI 20/20
Tailstock Taper: MK4
Tailstock Quill Diameter: 80 mm
Tailstock Quill Travel: 550 mm
Feed Drive X-Axis: 3.3 kW
Feed Drive Z-Axis: 3.3 kW
Lubrication Pump Power: 0.1 kW
Coolant Pump Power: 1.4 kW
Hydraulic Pump Power: 1.5 kW
Rapid Traverse X-Axis: 24000 mm/min
Rapid Traverse Z-Axis: 20000 mm/min
Feed Rate: 0.025–7000 mm/min
Thread Pitch Range: 0.025–3500 mm/min
Coolant Tank Capacity: 100 L
Power Supply: 400 V
Frequency: 50 Hz
Connected Load: 44 kVA
Rated Current: 64 A
Control Voltage: 24 V
Operating Hours: 58,132 h
CE Certified
Scope of delivery as shown, including 3 internal clamping heads
Configuration as shown: VDI30 disc turret
Optional:
Tailstock
Chip conveyor
Control Brand: HEIDENHAIN
Control Model: CNC PILOT
Counter Spindle: no
Driven Tools: no
Machine Height: 1700 mm
Machine Length: 3565 mm
Machine Weight: 5700 kg
Machine Width: 1700 mm
Max. Workpiece Diameter: 470 mm
Number of Axes: 2
Tool Stations: 12
Spindle Power: 21 kW
Spindle Speed: 5000 RPM
X-axis Travel: 220 mm
Z-axis Travel: 635 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
