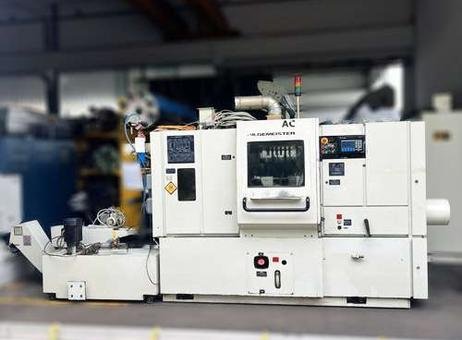

GILDEMEISTER GM20-6 AC Multispindle automatic lathe

GILDEMEISTER GM20-6 AC Multispindle automatic lathe
Verified seller
Price on request
View price
Manufacturer
GILDEMEISTER
Model
GM20-6 AC
Year
2003
Location
Italy
Category
Lathes - CNC multi-spindle lathes
Product id
P241120044
Buy this machine
Language
Language
Многошпинделен автоматичен струг GILDEMEISTER GM20-6 AC
Multivřetenový automatický soustruh GILDEMEISTER GM20-6 AC
GILDEMEISTER GM20-6 AC Multispindlet automatisk drejebænk
GILDEMEISTER GM20-6 AC Automatische Mehrspindel-Drehmaschine
Αυτόματος τόρνος πολλαπλών αξόνων GILDEMEISTER GM20-6 AC
GILDEMEISTER GM20-6 AC Multispindle automatic lathe
Torno multihusillos automático GILDEMEISTER GM20-6 AC
Tour multibroche GILDEMEISTER GM20-6 AC
Viševreteni automatski strug GILDEMEISTER GM20-6 AC
GILDEMEISTER GM20-6 AC Többorsós automata eszterga
Tornio multimandrino GILDEMEISTER GM20-6 AC
Daugialypės automatinės tekinimo staklės GILDEMEISTER GM20-6 AC
GILDEMEISTER GM20-6 AC Meerassige automatische draaibank
Wielowrzecionowy automat tokarski GILDEMEISTER GM20-6 AC
Torno automático multifuso GILDEMEISTER GM20-6 AC
Strung automat cu mai multe arbori GILDEMEISTER GM20-6 AC
GILDEMEISTER GM20-6 AC Многошпиндельный токарный станок
Automatski strug sa više vretena GILDEMEISTER GM20-6 AC
GILDEMEISTER GM20-6 AC Flerspindlig automatisk svarv
Otomatik çok milli torna tezgahı GILDEMEISTER GM20-6 AC
Get price & details
+39 3 51…
Show phone
Details
About this seller
Specifications
Max. Ø
20 mm
Nbr of spindles
6
Max. length
100 mm
Type of CNC
Spindle speed
4505000 rpm
-------------------
Length x width x height
5000.0
× 1300.0
× 2100.0
Weight
6000 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
visible
Last availability date
04/05/2026
Show more
Automatic description (AI-Generated)
This GILDEMEISTER GM20-6 AC is an automatic multispindle lathe designed for efficient machining of bars up to 20 mm in diameter. Manufactured in 2003, the machine features six spindles and six traverse slides, including four cross slides, allowing simultaneous multi-operation machining. It accommodates maximum bar lengths of 100 mm with a spindle speed range from 450 to 5000 rpm, suitable for a variety of production requirements.
The lathe supports round bars up to 20 mm in diameter, hexagonal bars up to 17 mm, and square bars up to 14 mm. It offers maximum strokes of 42 mm for radial slides, 50 mm for axial slides, and 86 mm for tool spindles. Cycle times are infinitely variable between 1.4 and 60 seconds, with a rapid traverse time of 0.7 seconds, enhancing productivity.

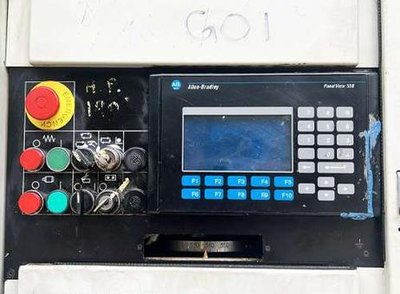

Equipped with a PLC Allen Bradley control system and an Allen-Bradley PanelView 550 display, the machine provides user-friendly operation and precise control. The control panel includes multiple push buttons, switches, and an emergency stop button for safety. The lathe's exterior is clean with minor signs of wear, and the control panel shows some minor scratches.

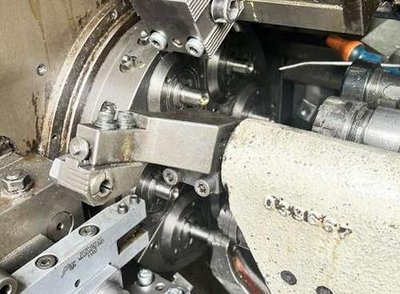

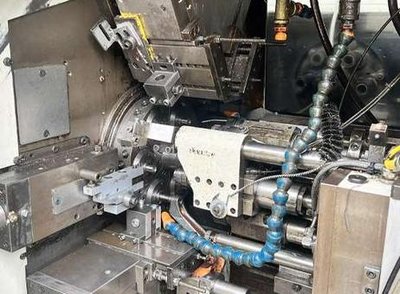

Internally, the machine houses multiple cutting tools and fixtures, coolant nozzles directed at the cutting area, and a chip conveyor system with a metal chute for efficient chip removal. Some oil residue and metal debris are visible inside, indicating prior use. An electric motor or pump assembly is mounted on the machine base, with intact housing and connected electrical cables and hoses.
Overall, this GILDEMEISTER multispindle lathe offers a robust setup for high-volume precision machining with comprehensive accessories and safety features.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Automatic multispindle lathe
N. 6 spindles
N. 6 traverse slide (of which N. 4 cross slides)
N. 6 tool spindles
Max diameter bar: round 20 mm (25 spec.) – Hexagonal 17 mm (21 spec.) – Square 14 mm (17 spec.)
Max bar feed in one station: 100 mm (125 spec.)
Max stroke of radial slides: 42 mm
Max stroke of axial slides: 50 mm
Max stroke of toolspindles: 86 mm
Main spindles speed: 450-5000 rpm
Cycle times infinitely variable: 1,4 – 60 sec.
Rapid traverse time: 0,7 sec.

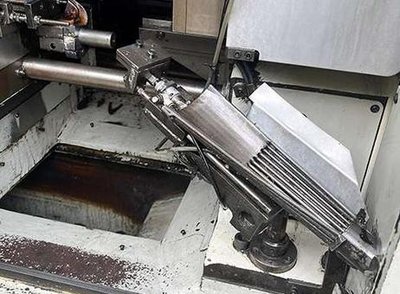

Devices and Accessories: PLC Allen Bradley – Tube + Stand – High pressure system with magnetic filter – Hydraulic pick-up pos. 6 – Threading clutch attachement (tapping) – Unloading pneumatic chute device for finished parts pos. 6 – Tank and chip conveyor (screw type) – Electric box – Conduits
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2013
Offers online
98
Last activity
May 4, 2026
ALMA SRL
Verified seller
ALMA SRL is a distinguished Italian company renowned for its innovative solutions in the field of industrial automation and technology. With a commitment to excellence and a passion for engineering, ALMA has established itself as a leader in providing cutting-edge machinery and systems that enhance productivity and efficiency across various sectors. Founded with the vision of transforming traditional manufacturing processes, ALMA SRL specializes in the design and production of advanced equipment tailored to meet the unique needs of its clients. Their extensive product range includes state-of-the-art cutting systems, automation solutions, and software applications that streamline operations and optimize performance. What sets ALMA apart is its unwavering dedication to quality and customer satisfaction. The company prides itself on its ability to deliver customized solutions that not only meet but exceed client expectations. With a team of highly skilled professionals and a robust research and development department, ALMA continuously pushes the boundaries of technology to provide innovative solutions that drive success. As a trusted partner in the industrial sector, ALMA SRL is committed to fostering long-term relationships with its clients, ensuring they receive the support and expertise needed to thrive in a competitive market. Whether you are looking to enhance your production capabilities or implement the latest automation technologies, ALMA SRL is your go-to partner for excellence in industrial solutions.
Seller's description
Automatic multispindle lathe
N. 6 spindles
N. 6 traverse slide (of which N. 4 cross slides)
N. 6 tool spindles
Max diameter bar: round 20 mm (25 spec.) – Hexagonal 17 mm (21 spec.) – Square 14 mm (17 spec.)
Max bar feed in one station: 100 mm (125 spec.)
Max stroke of radial slides: 42 mm
Max stroke of axial slides: 50 mm
Max stroke of toolspindles: 86 mm
Main spindles speed: 450-5000 rpm
Cycle times infinitely variable: 1,4 – 60 sec.
Rapid traverse time: 0,7 sec.
Devices and Accessories: PLC Allen Bradley – Tube + Stand – High pressure system with magnetic filter – Hydraulic pick-up pos. 6 – Threading clutch attachement (tapping) – Unloading pneumatic chute device for finished parts pos. 6 – Tank and chip conveyor (screw type) – Electric box – Conduits
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
