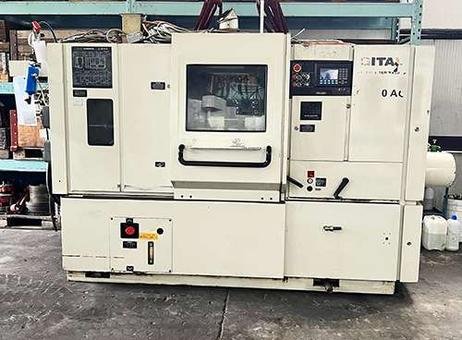

GILDEMEISTER GM20-6 AC Multispindle automatic lathe

GILDEMEISTER GM20-6 AC Multispindle automatic lathe
Verified seller
Price on request
View price
Manufacturer
GILDEMEISTER
Model
GM20-6 AC
Year
1999
Location
Italy
Category
Lathes - CNC multi-spindle lathes
Product id
P241120042
Buy this machine
Language
Language
Многошпинделен автоматичен струг GILDEMEISTER GM20-6 AC
Multivřetenový automatický soustruh GILDEMEISTER GM20-6 AC
GILDEMEISTER GM20-6 AC Multispindlet automatisk drejebænk
GILDEMEISTER GM20-6 AC Automatische Mehrspindel-Drehmaschine
Αυτόματος τόρνος πολλαπλών αξόνων GILDEMEISTER GM20-6 AC
GILDEMEISTER GM20-6 AC Multispindle automatic lathe
Torno multihusillos automático GILDEMEISTER GM20-6 AC
Tour multibroche GILDEMEISTER GM20-6 AC
Viševreteni automatski strug GILDEMEISTER GM20-6 AC
GILDEMEISTER GM20-6 AC Többorsós automata eszterga
Tornio multimandrino GILDEMEISTER GM20-6 AC
Daugialypės automatinės tekinimo staklės GILDEMEISTER GM20-6 AC
GILDEMEISTER GM20-6 AC Meerassige automatische draaibank
Wielowrzecionowy automat tokarski GILDEMEISTER GM20-6 AC
Torno automático multifuso GILDEMEISTER GM20-6 AC
Strung automat cu mai multe arbori GILDEMEISTER GM20-6 AC
GILDEMEISTER GM20-6 AC Многошпиндельный токарный станок
Automatski strug sa više vretena GILDEMEISTER GM20-6 AC
GILDEMEISTER GM20-6 AC Flerspindlig automatisk svarv
Otomatik çok milli torna tezgahı GILDEMEISTER GM20-6 AC
Get price & details
+39 3 51…
Show phone
Details
About this seller
Specifications
Max. Ø
20 mm
Nbr of spindles
6
Type of CNC
Spindle speed
5000 rpm
-------------------
Length x width x height
5000.0
× 1300.0
× 2100.0
Weight
6000 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
visible
Last availability date
04/05/2026
Show more
Automatic description (AI-Generated)
This GILDEMEISTER GM20-6 AC is an automatic multispindle lathe designed for efficient machining operations. Manufactured in 1999, the machine features six spindles and six traverse slides, including four cross slides, allowing simultaneous multi-tool processing. It is capable of handling bar stock with a maximum diameter of 20 mm round, 17 mm hexagonal, and 14 mm square profiles. The maximum bar feed at a single station is 100 mm, with radial slides offering a maximum stroke of 42 mm, axial slides 50 mm, and tool spindles 86 mm. The spindle speed ranges from 450 to 5000 rpm, with cycle times infinitely variable between 1.4 and 60 seconds, and rapid traverse time at 0.7 seconds. Equipped with an Allen Bradley PLC, the machine includes a tube and stand, a high-pressure system with magnetic filter, a hydraulic pick-up at position 6, a threading clutch attachment for tapping, and a pneumatic unloading chute for finished parts at position 6. Additionally, it features a tank and screw-type chip conveyor. The machine measures 5000 mm in length, 1300 mm in width, and 2100 mm in height, weighing approximately 6000 kg. Visually, the lathe is white with a control panel located on the right side, featuring a screen, multiple function keys, numeric keypad, and an emergency stop button. The internal components, including metal rods, gears, and brushes, appear clean and intact with some signs of use. The chip conveyor and disposal chute show visible wear, rust, and residue, indicating heavy use. The electrical cabinet is large, white, and equipped with ventilation grilles and warning labels. Overall, the machine presents a used but good external condition with minor wear.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description

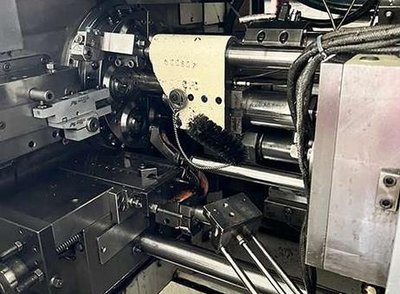

Automatic multispindle lathe
N. 6 spindles
N. 6 traverse slide (of which N. 4 cross slides)
N. 6 tool spindles
Max diameter bar: round 20 mm (25 spec.) – Hexagonal 17 mm (21 spec.) – Square 14 mm (17 spec.)
Max bar feed in one station: 100 mm (125 spec.)
Max stroke of radial slides: 42 mm
Max stroke of axial slides: 50 mm
Max stroke of toolspindles: 86 mm
Main spindles speed: 450-5000 rpm
Cycle times infinitely variable: 1,4 – 60 sec.
Rapid traverse time: 0,7 sec.

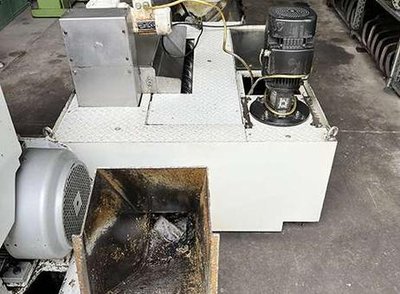

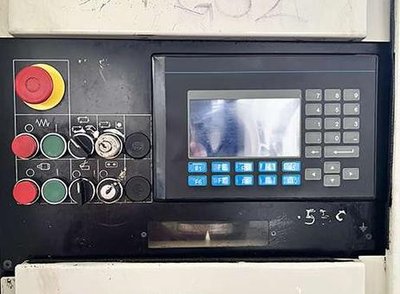

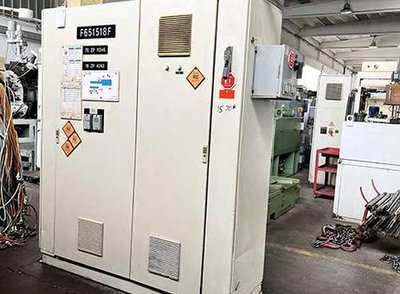

Devices and Service: PLC Allen Bradley – Tube + Stand – High pressure system with magnetic filter – Hydraulic pick-up pos. 6 – Threading clutch attachement (tapping) – Unloading pneumatic chute device for finished parts pos. 6 – Tank and chip conveyor (screw type)- Electric drawings – Electric box
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2013
Offers online
98
Last activity
May 4, 2026
ALMA SRL
Verified seller
ALMA SRL is a distinguished Italian company renowned for its innovative solutions in the field of industrial automation and technology. With a commitment to excellence and a passion for engineering, ALMA has established itself as a leader in providing cutting-edge machinery and systems that enhance productivity and efficiency across various sectors. Founded with the vision of transforming traditional manufacturing processes, ALMA SRL specializes in the design and production of advanced equipment tailored to meet the unique needs of its clients. Their extensive product range includes state-of-the-art cutting systems, automation solutions, and software applications that streamline operations and optimize performance. What sets ALMA apart is its unwavering dedication to quality and customer satisfaction. The company prides itself on its ability to deliver customized solutions that not only meet but exceed client expectations. With a team of highly skilled professionals and a robust research and development department, ALMA continuously pushes the boundaries of technology to provide innovative solutions that drive success. As a trusted partner in the industrial sector, ALMA SRL is committed to fostering long-term relationships with its clients, ensuring they receive the support and expertise needed to thrive in a competitive market. Whether you are looking to enhance your production capabilities or implement the latest automation technologies, ALMA SRL is your go-to partner for excellence in industrial solutions.
Seller's description
Automatic multispindle lathe
N. 6 spindles
N. 6 traverse slide (of which N. 4 cross slides)
N. 6 tool spindles
Max diameter bar: round 20 mm (25 spec.) – Hexagonal 17 mm (21 spec.) – Square 14 mm (17 spec.)
Max bar feed in one station: 100 mm (125 spec.)
Max stroke of radial slides: 42 mm
Max stroke of axial slides: 50 mm
Max stroke of toolspindles: 86 mm
Main spindles speed: 450-5000 rpm
Cycle times infinitely variable: 1,4 – 60 sec.
Rapid traverse time: 0,7 sec.
Devices and Service: PLC Allen Bradley – Tube + Stand – High pressure system with magnetic filter – Hydraulic pick-up pos. 6 – Threading clutch attachement (tapping) – Unloading pneumatic chute device for finished parts pos. 6 – Tank and chip conveyor (screw type)- Electric drawings – Electric box
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
