Gildemeister Sprint 65 Linear cnc lathe

Gildemeister Sprint 65 Linear cnc lathe
Top seller
Price on request
Make an offer
Manufacturer
Gildemeister
Model
Sprint 65 Linear
Year
Location
Belgium
Category
Lathes - CNC lathes
Product id
P210913046
Buy this machine
Language
Language
Gildemeister Sprint 65 Linear
Soustruh cnc Gildemeister Sprint 65 Linear
Gildemeister Sprint 65 Linear
Gildemeister Sprint 65 Linear Drehmaschine CNC
Gildemeister Sprint 65 Linear
Gildemeister Sprint 65 Linear cnc lathe
Torno cnc Gildemeister Sprint 65 Linear
Tour cnc Gildemeister Sprint 65 Linear
Gildemeister Sprint 65 Linear
Gildemeister Sprint 65 Linear
Tornio cnc Gildemeister Sprint 65 Linear
Gildemeister Sprint 65 Linear
Gildemeister Sprint 65 Linear
Tokarka CNC Gildemeister Sprint 65 Linear
Gildemeister Sprint 65 Linear
Gildemeister Sprint 65 Linear
Gildemeister Sprint 65 Linear Токарный станок с ЧПУ
Gildemeister Sprint 65 Linear
Gildemeister Sprint 65 Linear
Cnc torna Gildemeister Sprint 65 Linear
Get price & details
+32 93 8…
Show phone
Details
About this seller
Specifications
Turning length
120 mm
Turning Ø
42 mm
Length between centers
950 mm
Type of CNC
Fanuc 310i
X-axis
165 mm
Z-axis
80 mm
Spindle taper
Spindle bore
42 mm
Number of turrets
3
Number of tools on turret
24
Number of rotating tools
6
Turning speed
5000 rpm
Spindle motor power
17 kW
Tailstock
no
Bar feeder
yes
-------------------
Length x width x height
4500.0
× 1990.0
× 2300.0
Weight
10000 kg
worked hours
hours under power
state
good
At local norms
---------
status
visible
Datasheet
Gildemeister Sprint 65 Linear
Last availability date
18/04/2026
Show more
Automatic description (AI-Generated)

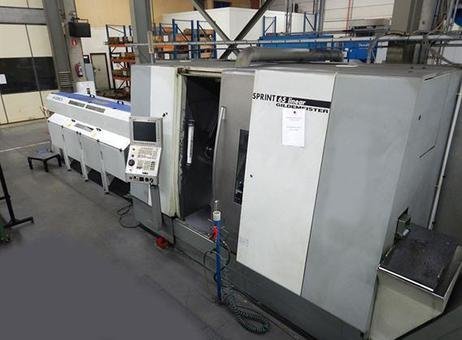

This listing features a Gildemeister Sprint 65 Linear CNC lathe, accompanied by an Iemca Master 880 P barfeeder. The lathe measures 4500 mm in length, 1990 mm in width, and 2300 mm in height, with a total weight of approximately 10,000 kg. It is equipped with two spindles: the first spindle has a power rating of 20 kW, a maximum speed of 5000 rpm, and a spindle bore diameter of 70 mm; the second spindle offers 17 kW power, also running up to 5000 rpm, with a spindle bore of 42 mm. Both spindles feature 12-tool turrets with driven tools rated at 2.5 kW and capable of speeds up to 4000 rpm. The lathe supports driven C-axis on the first turret and driven A-axis on the second, with X, Y, and Z movements specified for each turret, allowing for versatile machining operations.
The machine is controlled by a Fanuc 310i CNC system, providing precise command and operation. Chuck size on both spindles is Ø 175 mm. The lathe includes two tool changers, each with 12 tools, enabling efficient tool management during production runs.
The Iemca Master 880 P barfeeder is included, facilitating automated bar feeding to increase productivity and reduce manual intervention.

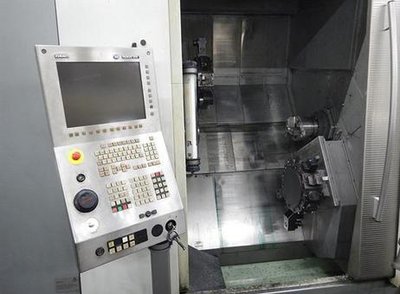

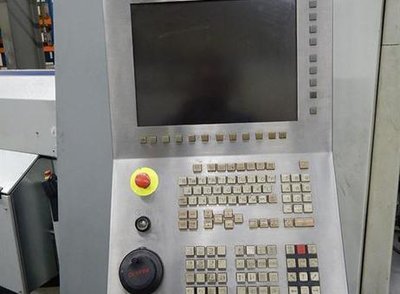

Visually, the machine is installed indoors on a concrete workshop floor and appears clean and well-maintained with no visible damage. A control panel with a screen and keypad is mounted on the left side of the machine for operator interface. Additionally, a blue coiled air hose is attached to the front of the lathe, likely for cleaning or pneumatic tool operation.
This combination of features makes the Gildemeister Sprint 65 Linear suitable for complex and precise turning operations in an industrial setting.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
DMG Gildemeister Sprint 65 Linear + Iemca barfeeder
950 mm
Dia of spindle bore
70 & 42 mm
Power on the spindle
20 & 17 kW
Number of speeds
5000 rpm
Command
Fanuc 310i
Length
4500 mm
Width
1990 mm
Height
2300 mm
Weight
10 ton
Chuck
Ø 175 mm
Toolchanger
yes (2x)
Number of tools
12 tools (2x)

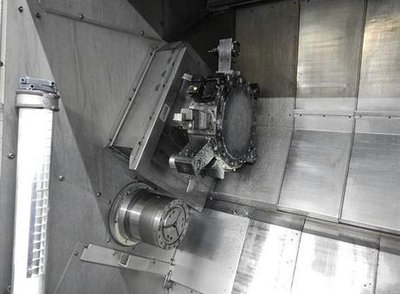

Spindle 1: 20 kW - 5000 rpm - spindlebore: 70 mm

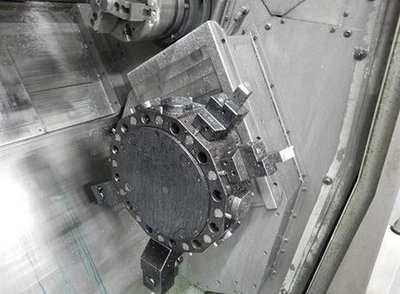

Turret 1: 12 driven tools - 2,5 kW - 4000 rpm
Driven C-axis
X1 movement: 165 mm
Y1 movement: +50/-30 mm
Z1 movement: 678 mm
Spindle 2: 17 kW - 5000 rpm - spindlbore: 42 mm
Turret 2: 12 driven tools - 2,5 kW - 4000 rpm
Driven A-axis
X2 movement: 165 mm
Z2 movement: 640 mm
Iemca Master 880 P barfeeder
