Gildemeister Twin 65 Y - RG2

Gildemeister Twin 65 Y - RG2
Verified seller
Price on request
Make an offer
Manufacturer
Gildemeister
Model
Twin 65 Y - RG2
Year
2007
Location
Germany
Category
Lathes - CNC lathes
Product id
P260623203
Buy this machine
Language
Language
Gildemeister Twin 65 Y - RG2
Gildemeister Twin 65 Y - RG2
Gildemeister Twin 65 Y - RG2
Gildemeister Twin 65 Y - RG2
Gildemeister Twin 65 Y - RG2
Gildemeister Twin 65 Y - RG2
Gildemeister Twin 65 Y - RG2
Gildemeister Twin 65 Y - RG2
Gildemeister Twin 65 Y - RG2
Gildemeister Twin 65 Y - RG2
Gildemeister Twin 65 Y - RG2
Gildemeister Twin 65 Y - RG2
Gildemeister Twin 65 Y - RG2
Gildemeister Twin 65 Y - RG2
Gildemeister Twin 65 Y - RG2
Gildemeister Twin 65 Y - RG2
Gildemeister Twin 65 Y - RG2
Gildemeister Twin 65 Y - RG2
Gildemeister Twin 65 Y - RG2
Gildemeister Twin 65 Y - RG2
Get price & details
+49 814 …
Show phone
Details
About this seller
Specifications
Turning length
650 mm
Turning Ø
250 mm
Ø above the bed
mm
Ø above transversing slide
mm
Length between centers
mm
Type of CNC
X-axis
175 mm
Z-axis
670 mm
Max workpiece weight
kg
Spindle taper
Spindle bore
mm
Number of turrets
Number of tools on turret
Number of rotating tools
Turning speed
5000 rpm
Spindle motor power
kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
-
× -
× -
Weight
kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Gildemeister Twin 65 Y - RG2
Last availability date
23/06/2026
Show more
Automatic description (AI-Generated)
The Gildemeister Twin 65 Y - RG2 is a CNC lathe machine manufactured in 2007, equipped with a Siemens 840D control system. It is designed for precise turning operations with a turning diameter capacity of 250 mm and a turning length of 650 mm. The machine features a motor spindle main spindle capable of reaching speeds up to 5,000 rpm. While the maximum spindle motor power is not specified in the available data, the main spindle delivers a maximum torque of 370 Nm and includes a C-axis positioning accuracy of 0.001°. The bar passage diameter is 65 mm, and the main spindle is fitted with a Hainbuch chuck with a top size of 65 mm, utilizing a hollow clamping cylinder.

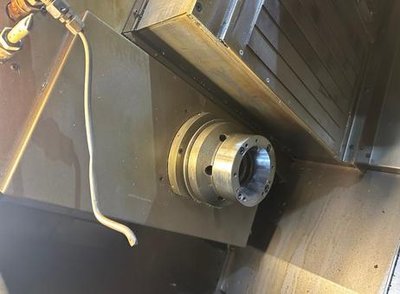

The counter spindle is also a motor spindle with a maximum speed of 5,000 rpm, a power rating of 26 kW, and a torque of 290 Nm. It features a C-axis accuracy of 0.001° and is equipped with a Hainbuch chuck of the same size as the main spindle, using a partially hollow clamping cylinder. The machine's axes include a Z-axis travel of 670 mm and an X-axis travel of 175 mm.

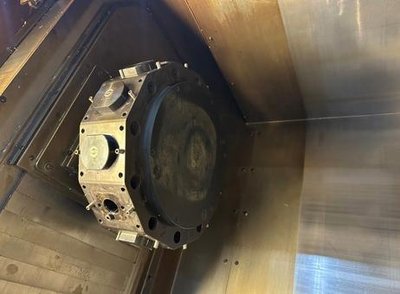

This lathe is equipped with two tool carriers: the first is a 12-station tool turret with VDI 30 tool holders, featuring a tool drive speed of 4,000 rpm, 11 kW power, and 28 Nm torque, with X, Y, and Z axes travels of 300 mm, 80 mm (+/- 40 mm), and 650 mm respectively. The second tool carrier is also a 12-station tool turret with VDI 30 holders and similar tool drive specifications, with X and Z axes travels of 180 mm and 650 mm.
Additional equipment includes a chip conveyor for efficient chip removal, an IKZ coolant supply system, direct measuring systems with glass scales on all X axes, an IRCO Breuning bar loader, and finished part handling with a gripper and indexing belt. The machine also features a mechanical emulsion mist separator and an electronic handwheel for setup operations.

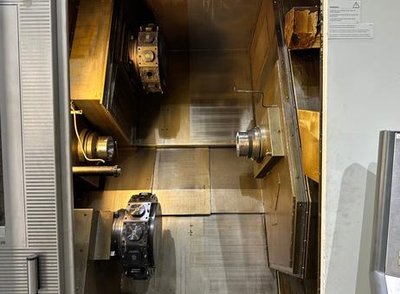

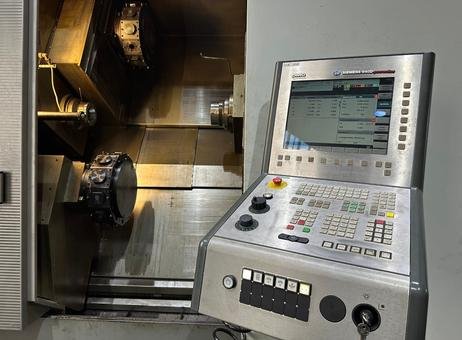

Visual inspection confirms the presence of the Siemens 840D control panel, tool turrets with multiple tool holders, and spindles with clean metal surfaces. Some wear and grime are visible on the machine bed and interior surfaces, consistent with prior use. Coolant pipes and nozzles are installed near the spindle area, supporting the coolant system. The spindle nose appears clean with minor wear marks, indicating regular maintenance. Overall, the Gildemeister Twin 65 Y - RG2 offers comprehensive functionality for complex turning tasks with dual spindle capabilities and advanced tooling options.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Gildemeister Twin 65 Y - RG2
Year of manufacture: 2007
Control: Siemens 840 D
Turning diameter: 250 mm
Turning length: 650 mm
____________
Description:
General:
Year of manufacture: 2007
Control: Siemens 840 D
Bar passage: 65 mm
Turning diameter: 250 mm
Turning length: 650 mm
Main spindle:
Technology: Motor spindle
Speed: 5,000 rpm
Max. power: 35 kW
Max. torque: 370 Nm
C-axis: 0.001°
Bar passage: 65 mm
Chuck: Hainbuch chuck top size 65
Clamping cylinder: Hollow clamping cylinder
Counter spindle:
Technology: Motor spindle
Speed: 5,000 rpm
Power: 26 kW
Torque: 290 Nm
C-axis: 0.001°
Chuck: Hainbuch chuck top size 65
Clamping cylinder: Partially hollow clamping cylinder
Z-axis: 670 mm
X-axis: 175 mm
Tool carrier I (X/Y/Z):
Technology: Tool turret, 12 stations
Tool holder: VDI 30
Tool drive: 4,000 rpm, 11 kW, 28 Nm
X-axis: 300
Y-axis: 80 mm (+/- 40 mm)
Z-axis: 650 mm
Tool carrier II (X/Z):
Technology: Tool turret, 12 stations
Tool holder: VDI 30
Tool drive: 4,000 rpm, 11 kW, 28 Nm
X-axis: 180
Z-axis: 650 mm
Equipment / Accessories:
Chip removal: Chip conveyor
Coolant supply: IKZ system
Measuring systems: Direct in all X axes (glass scales)
Bar loader: IRCO Breuning
Parts removal: Finished part gripper + indexing belt
Emulsion mist separator: Mechanical
Setup operation: Electronic handwheel
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2017
Offers online
18
Last activity
June 23, 2026
Gläsener+Schmidt GmbH
Verified seller
Gläsener+Schmidt GmbH is a leading manufacturer based in Germany, specializing in high-quality machine tools and precision engineering solutions. With decades of experience in the industry, the company has established itself as a trusted partner for businesses seeking innovative and reliable machinery. Their commitment to excellence is evident in every product they offer, ensuring that clients receive the best tools to enhance their manufacturing processes. At Gläsener+Schmidt, the focus is on delivering cutting-edge technology that meets the evolving needs of various sectors, including automotive, aerospace, and general manufacturing. The company prides itself on its state-of-the-art production facilities and a dedicated team of engineers who work tirelessly to develop solutions that optimize efficiency and productivity. Their extensive range of products includes CNC machines, milling machines, and specialized tooling, all designed to provide superior performance and durability. Customer satisfaction is at the heart of Gläsener+Schmidt's operations. They offer tailored solutions and exceptional after-sales support, ensuring that clients can maximize the potential of their investments. By choosing Gläsener+Schmidt GmbH, businesses not only gain access to top-tier machinery but also a partnership that prioritizes innovation, quality, and service excellence. Experience the difference with Gläsener+Schmidt, where precision meets performance.
