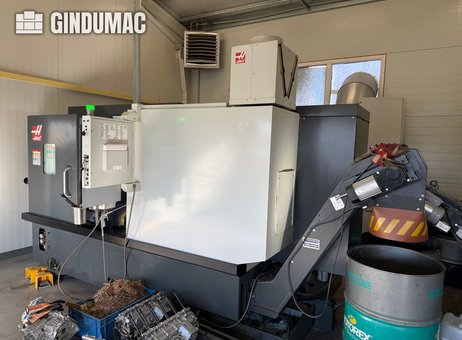

HAAS ST-30Y cnc lathe

HAAS ST-30Y cnc lathe
Top seller
View price
Request price
+34 679 …
HAAS
ST-30Y
2020
Hungary
Lathes - CNC lathes
Turning length
660 mm
Turning Ø
533 mm
Ø above the bed
806 mm
Ø above transversing slide
527 mm
Length between centers
762 mm
Type of CNC
X-axis
239 mm
Z-axis
826 mm
Spindle taper
A2-6
Spindle bore
76 mm
Number of turrets
1
Number of tools on turret
12
Number of rotating tools
12
Turning speed
3400 rpm
Spindle motor power
22.4 kW
Tailstock
yes
Bar feeder
no
as-is, where-is
Datasheet
Haas ST 30
11/08/2026
P260209281
This HAAS ST-30Y CNC lathe, manufactured in December 2020, is a horizontal turning machine designed for precision and efficiency in machining operations. It features a 4-axis configuration, including C and Y axes, allowing for complex turning tasks. The spindle is an A2-6 type with a maximum speed of 3,400 rpm, suitable for a variety of materials and machining requirements. The machine is equipped with a 12-station BMT65 turret, all of which are rotating tools, providing versatility in tooling options for different operations. The ST-30Y includes a programmable tailstock, enhancing support for longer workpieces during turning processes. Additional equipment comprises a bent-type chip conveyor with a collection drum labeled 'Swissline,' facilitating effective chip removal and maintaining a cleaner working environment. An oil skimmer and exhaust system are also part of the setup, contributing to machine maintenance and operator comfort. This machine is housed in a NEMA Type 2 enclosure, intended for indoor use, with overcurrent protection integrated for electrical safety. The electrical specifications include a voltage of 440 V, three-phase power supply, and frequency compatibility of 50/60 Hz. The full load current is rated at 55 amps, with a largest load of 33 amps and a short circuit interrupting capacity of 10,000 amps. A remote jog handle and a WIFI camera are included, offering enhanced control and monitoring capabilities. The machine appears clean and well-maintained, with some metal shavings observed near the base in a blue container, indicating recent or ongoing use. Gloves placed on the chip conveyor motor housing suggest active operation. Control screens display detailed machine status and program information, including coordinates and cycle times. Total power-on time recorded is approximately 4654 hours, with cycle time around 557 hours and tool change time near 480 hours, providing insight into machine usage. This HAAS ST-30Y lathe combines robust features and accessories suited for demanding machining tasks. For further details or inquiries, please contact us. This 4s HAAS ST-30Y horizontal turning machine was manufactured in 2020. It features a C+Y-axis, a 3,400 rpm A2-6 spindle, and a 12-station BMT65 turret. With additional features like an automatic tool presetter, bent-type chip conveyor, and a programmable tailstock, consider the opportunity to buy this HAAS ST-30Y horizontal turning machine. Contact us for further details.Running hours: 556 h
C+Y-axis
3,400 rpm A2-6 spindle
12-station BMT65 turret
Programmable Tailstock
Additional equipment
Bent-Type Chip Conveyor
Oil skimmer
Exhaust system
Automatic Tool Presetter (ATP)
WIFI camera
Remote Jog Handle
Number of Axes: 4
Spindle Speed: 3400 RPM
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase. 2019
1983
Aug. 14, 2026
GINDUMAC GmbH
Top seller
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation. Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers. Why buyers buy with us
Verified sellers
We verify sellers and confirm key machine information before introducing buyers and sellers
Secure transactions
We help secure international transactions and assist both parties until the deal is completed
Worldwide logistics support
From loading to international transport, we help coordinate the logistics through our trusted partners
Dedicated experts
A machinery sales specialist manages your request from the first message to the completed purchase
Here is a selection of similar machines - HAAS ST-30Y

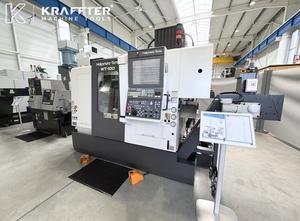

NAKAMURA-TOME WT-100 CNC lathe
