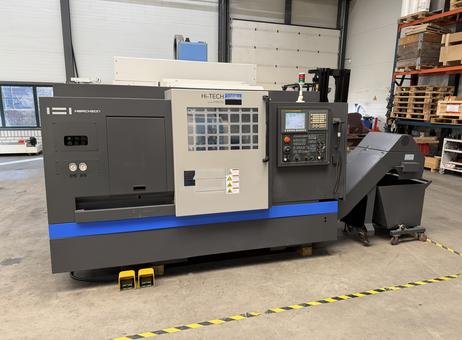

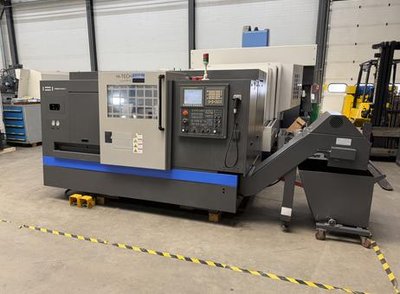

Hwacheon HI-TECH 200BL CNC lathe

Hwacheon HI-TECH 200BL CNC lathe
Verified seller
33,000 €
Make an offer
Manufacturer
Hwacheon
Model
HI-TECH 200BL
Year
2014
Location
Netherlands
Category
Lathes - CNC lathes
Product id
P260413085
Buy this machine
Language
Language
CNC струг Hwacheon HI-TECH 200BL
CNC soustruh Hwacheon HI-TECH 200BL
Hwacheon HI-TECH 200BL CNC-drejebænk
Hwacheon HI-TECH 200BL CNC-Drehmaschine
Τόρνος CNC Hwacheon HI-TECH 200BL
Hwacheon HI-TECH 200BL CNC lathe
Torno CNC Hwacheon HI-TECH 200BL
Tour CNC Hwacheon HI-TECH 200BL
CNC tokarski stroj Hwacheon HI-TECH 200BL
Hwacheon HI-TECH 200BL CNC esztergagép
Tornio CNC Hwacheon HI-TECH 200BL
Hwacheon HI-TECH 200BL CNC tekinimo staklės
Hwacheon HI-TECH 200BL CNC-draaibank
Tokarka CNC Hwacheon HI-TECH 200BL
Torno CNC Hwacheon HI-TECH 200BL
Strung CNC Hwacheon HI-TECH 200BL
Hwacheon HI-TECH 200BL Токарный станок с ЧПУ
CNC strug Hwacheon HI-TECH 200BL
Hwacheon HI-TECH 200BL CNC-svarv
CNC torna Hwacheon HI-TECH 200BL
Get price & details
+316 22 …
Show phone
Details
About this seller
Specifications
Turning length
630 mm
Turning Ø
500 mm
Ø above the bed
500 mm
Ø above transversing slide
325 mm
Length between centers
398.8 mm
Type of CNC
X-axis
195 mm
Z-axis
660 mm
Spindle taper
Spindle bore
65 mm
Number of turrets
1
Number of tools on turret
12
Number of rotating tools
12
Turning speed
5000 rpm
Spindle motor power
11 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
2870.0
× 1675.0
× 1720.0
Weight
4.5 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Hwacheon Hi-Tech 200A
Last availability date
01/05/2026
Show more
Automatic description (AI-Generated)
The Hwacheon Hi-Tech 200BL is a CNC turning center designed for high productivity in horizontal turning operations. Manufactured in 2014, this machine features a robust construction with dimensions of approximately 2870 mm in length, 1675 mm in width, and 1720 mm in height, and weighs about 4,500 kg.
This lathe is equipped with an 11 kW spindle motor, offering a spindle bore of 65 mm and a maximum turning diameter over the cross slide of 500 mm. The maximum turning length is 630 mm, with X-axis and Z-axis travels of 195 mm and 660 mm, respectively. The spindle speed ranges from 0 to 3,500 RPM, controlled via a FANUC Series 0i-TD control panel, which includes a screen and multiple buttons and switches for operation.

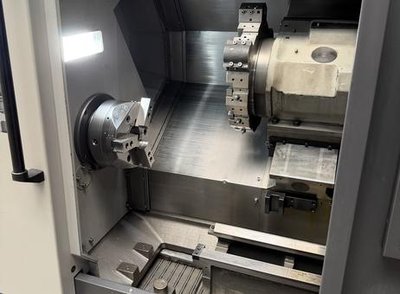

The machine includes a chip conveyor with a collection bin on wheels, facilitating efficient chip removal during operation. A Schunk 3-jaw chuck (ROTA NC Plus 260-86) is mounted on the spindle, accompanied by various sets of jaws, supporting secure workpiece holding. The turret features multiple tool holders and is mounted on guide rails, with a tailstock or steady rest visible inside the machine.

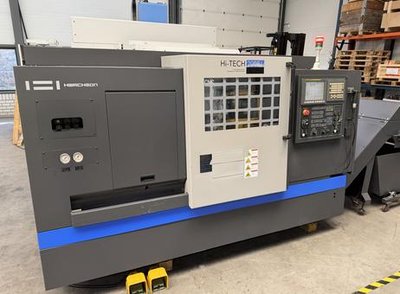

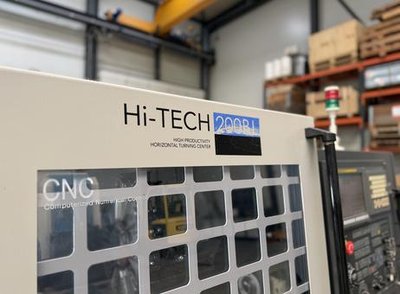

The exterior and interior of the lathe are well-maintained, showing minor signs of use but no visible damage. Two pressure gauges are located on the left side panel, and interior lighting illuminates the chuck area. The machine is labeled clearly with the model name 'Hi-TECH 200BL' and includes original Hwacheon and FANUC documentation.
Overall, this Hwacheon Hi-Tech 200BL CNC lathe offers a straightforward two-axis (X and Z) configuration, promoting clear and efficient operation without the complexity of additional axes. It is suitable for users seeking a reliable horizontal turning center with essential features and accessories included.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
1. CNC Turning
The Hwacheon Hi-Tech 200BL is a robust CNC lathe that is remarkably easy to use in practice. The machine is clearly structured and operates predictably, making setting up and operating quickly feel familiar.
A major advantage is the configuration with only an X and Z axis. The absence of extra axes and complex functions keeps the operation clear and efficient.
This HWACHEON HI-TECH 200BL machine is standard equipped with;
- Chip conveyor + collection tray.
- Schunk 3-jaw (ROTA NC Plus 260-86) including various sets of jaws.
- Original HWACHEON and FANUC documentation.
Weight & dimensions:
- 4,500 kg
- +/- 2870 x 1675 x 1720 mm (LxWxH)
Max Turning Diameter: 350 mm
Max Turning Diameter Over Cross Slide: 500 mm
Max Turning Length: 630 mm
X Axis Travel: 195 mm
Z Axis Travel: 660 mm
Rapid Feed X Y Z: 30 m/min
Through Hole: 65 mm
Speed Min Max: 0 - 3,500 RPM
Spindle Power: 11 kW (100% ED) - 15 kW (40% ED)
Spindle Nose: A2-6
Turret Mount: 25x25 x Ø40mm
Turret Positions: 12 pieces
Tailstock Mount: MK4
Control Brand Type: FANUC Series 0i-TD
Spindle Hours: 4416
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
