HWACHEON HI-TECH 200BL MC

HWACHEON HI-TECH 200BL MC
Verified seller
42,500 €
Make an offer
Manufacturer
Hwacheon
Model
HI-TECH 200BL MC
Year
2013
Location
Netherlands
Category
Lathes - CNC lathes
Product id
P260413084
Buy this machine
Language
Language
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
Get price & details
+316 22 …
Show phone
Details
About this seller
Specifications
Turning length
532 mm
Turning Ø
325 mm
Ø above the bed
500 mm
Ø above transversing slide
325 mm
Length between centers
398.8 mm
Type of CNC
X-axis
195 mm
Z-axis
430 mm
Spindle taper
Spindle bore
65 mm
Number of turrets
1
Number of tools on turret
12
Number of rotating tools
12
Turning speed
3500 rpm
Spindle motor power
11 kW
Tailstock
no
Bar feeder
no
-------------------
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Hwacheon Hi-Tech 200A
Last availability date
03/05/2026
Show more
Automatic description (AI-Generated)

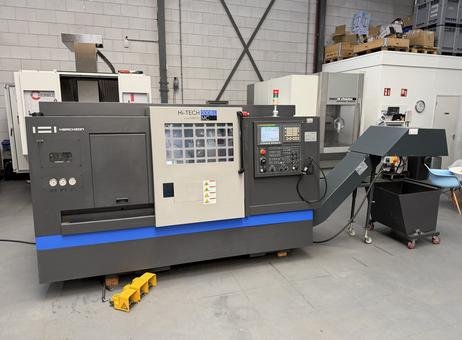

This listing features the Hwacheon HI-TECH 200BL MC CNC lathe, a precision turning machine designed for versatile machining tasks. Manufactured in 2013, it offers a maximum turning diameter of 325 mm and a maximum turning diameter over the cross slide of 500 mm, with a maximum turning length of 532 mm. The machine's X-axis travel is 195 mm and Z-axis travel is 430 mm, allowing for a range of workpiece sizes. It is equipped with a spindle bore of 65 mm and a spindle motor rated at 11 kW, capable of reaching speeds up to 3500 rpm. The spindle mount is A2-8, and the turret mount measures 25x25 mm with a diameter of 40 mm, accommodating 12 driven turret positions. The control system is a FANUC Series 0i-TD, known for reliability and precision in CNC operations.

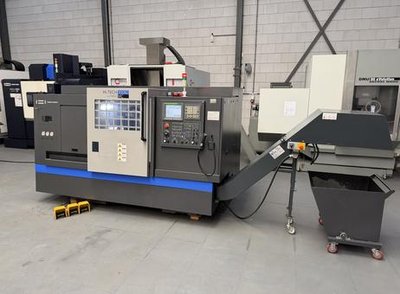

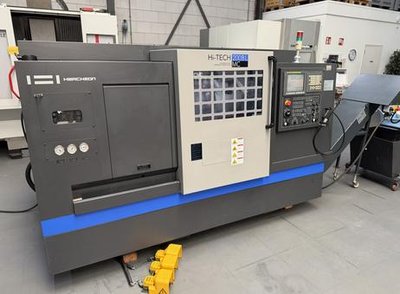

The machine is equipped with a chip conveyor and a collection tray on wheels, facilitating efficient chip removal during operation. The control panel includes a display screen for programming and monitoring, and three pressure gauges are mounted on the left side panel for operational oversight. The lathe appears clean and well-maintained with no visible damage, indicating good care and upkeep.
Included with the machine are various accessories such as a Röhm 3-jaw chuck (DURO-NC 260/3) with two sets of jaw adapters, 13 EWS tool holders with four driven tools, as well as assorted collets and clamping sleeves. Original Hwacheon and FANUC documentation are provided, supporting operation and maintenance. This machine is available for viewing in the showroom, allowing prospective buyers to inspect its condition and functionality firsthand.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
1. CNC Turning
We have taken over this HWACHEON HI-TECH 200BL MC working from production, see video of the working machine prior to disassembly.
The machine is very fully equipped and is delivered as standard including;
- C-axis + driven turret (both 2 positions).
- Renishaw measuring probe.
- Chip conveyor + collection tray.
- Röhm 3-jaw (DURO-NC 260/3) including 2 sets of jaw adapters.
- 13 pcs. EWS tool holders, of which 4 are driven.
- Various collets and clamping sleeves.
- Original HWACHEON and FANUC documentation.
Machine is available for working viewing in our showroom!!
Max Turning Diameter: 325 mm
Max Turning Diameter Over Cross Slide: 500 mm
Max Turning Length: 532 mm
Travel X Axis: 195 mm
Travel Z Axis: 430 mm
C Axis: 3.7/2.2, 5000 rpm, Ø16, 0.001 indexable
Rapid Traverse X Y Z: 30 m/min
Through Hole: 65 mm
Speed Min Max: 0 - 3,500 rpm
Spindle Power: 11 kW (100% ED) - 15 kW (40% ED)
Spindle Mount: A2-8
Turret Mount: 25x25 x Ø40mm
Turret Positions: 12 pcs (all driven)
Counter Center Mount: MK4
Control Brand Type: FANUC Series 0i-TD
Spindle Hours: 4624
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
