HWACHEON HI- TECH 200BL MC

HWACHEON HI-TECH 200BL MC
Verified seller
Price on request
View price
Manufacturer
Hwacheon
Model
HI-TECH 200BL MC
Year
2013
Location
Netherlands
Category
Lathes - CNC lathes
Product id
P260610083
Buy this machine
Language
Language
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
HWACHEON HI-TECH 200BL MC
Get price & details
+316 22 …
Show phone
Details
About this seller
Specifications
Turning length
532 mm
Turning Ø
325 mm
Ø above the bed
325 mm
Ø above transversing slide
500 mm
Length between centers
mm
Type of CNC
X-axis
195 mm
Z-axis
430 mm
Max workpiece weight
kg
Spindle taper
Spindle bore
65 mm
Number of turrets
Number of tools on turret
Number of rotating tools
Turning speed
3500 rpm
Spindle motor power
11 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
532.0
× -
× -
Weight
kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Hwacheon Hi-Tech 200A
Last availability date
10/06/2026
Show more
Automatic description (AI-Generated)
This listing features a Hwacheon HI-TECH 200BL MC CNC lathe, manufactured in 2013. The machine is designed for precision turning with a maximum turning diameter of 325 mm and a maximum turning diameter over the cross slide of 500 mm. It offers a maximum turning length of 532 mm, with X and Z axis travels of 195 mm and 430 mm respectively. The spindle bore diameter is 65 mm, and the spindle motor provides 11 kW of power. The spindle speed ranges from 0 to 3500 rpm, suitable for diverse machining tasks.
The lathe is equipped with a FANUC Series 0i-TD control system, known for reliability and user-friendly operation. It features a spindle mounting type A2-8 and a turret mount of 25x25 mm with a diameter of 40 mm. The turret has 12 driven tool positions, allowing for versatile tooling options. The tailstock taper is MK4.

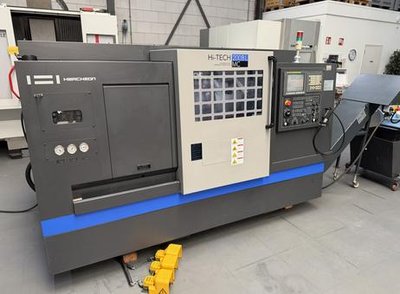

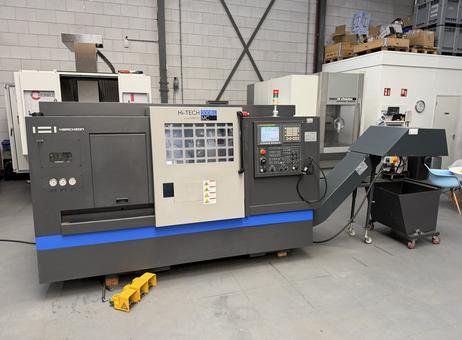

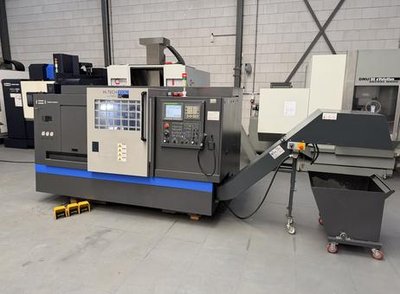

Visible in the images is a control panel with a screen and various buttons and knobs, facilitating machine operation. A chip conveyor is attached on the right side for efficient chip removal. Three pressure gauges are observable on the left side panel. The machine appears clean and well-maintained, with no visible damage, and is placed on wooden blocks.
Additional features mentioned include a C-axis with driven turret (both 2 positions), a Renishaw measuring probe, a Röhm 3-jaw chuck (DURO-NC 260/3) with two sets of jaws, 13 EWS tool holders (four driven), various collets and clamping cones, and original Hwacheon and FANUC documentation. The feed rapid rate for X, Y, and Z axes is 30 m/min.
This CNC lathe is suitable for precision turning applications requiring reliable performance and versatility. Viewing arrangements can be made to see the machine in working condition in the showroom.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
1. cnc turning
We have taken over this HWACHEON HI-TECH 200BL MC in working condition from production, see video of the working machine prior to dismantling.
The machine is very fully equipped and is standard delivered including;
- C-axis + driven turret (both 2 positions).
- Renishaw measuring probe.
- Chip conveyor + collection tray.

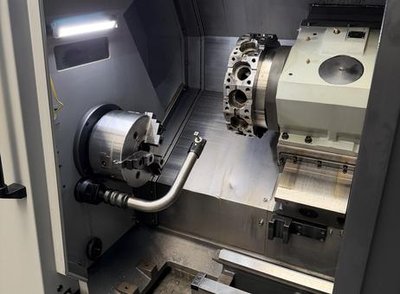

- Röhm 3-jaw (DURO-NC 260/3) including 2 sets of jaws.
- 13 pcs EWS tool holders of which 4 are driven.
- Various collets and clamping cones.
- Original HWACHEON and FANUC documentation.
Machine can be viewed in working condition in our showroom!!
Max turning diameter: 325 mm
Max turning diameter over cross slide: 500 mm
Max turning length: 532 mm
X axis travel: 195 mm
Z axis travel: 430 mm
C axis: 3.7/2.2, 5000 rpm, Ø16, 0.001 indexable
Feed Rapid rate X Y Z: 30 m/min
Through hole: 65 mm
Speed Min Max: 0 - 3,500 rpm
Spindle power: 11 kW (100% ED) - 15 kW (40% ED)
Spindle mounting: A2-8
Turret mount: 25x25 x Ø40mm
Turret positions: 12 pcs (all driven)
Tailstock taper: MK4
Control brand type: FANUC Series 0i-TD
Spindle hours: 4624
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2020
Offers online
42
Last activity
June 10, 2026
Keetels Machines Bv
Verified seller
Keetels Machines Bv, based in the Netherlands, is a leading innovator in the manufacturing of high-quality machinery tailored for the food processing industry. With decades of experience, Keetels has established itself as a trusted partner for businesses looking to enhance their production capabilities. The company specializes in designing and producing advanced equipment that meets the diverse needs of its clients, ensuring efficiency and reliability in every operation. At Keetels, the commitment to quality is paramount. The company employs cutting-edge technology and adheres to stringent quality control measures to deliver machinery that not only meets but exceeds industry standards. Their product range includes state-of-the-art machines for various food processing applications, enabling clients to optimize their workflows and improve overall productivity. Customer satisfaction is at the heart of Keetels' philosophy. The company prides itself on its ability to provide tailored solutions that cater to the specific requirements of each client. With a dedicated team of experts, Keetels offers comprehensive support, from initial consultation to after-sales service, ensuring that clients receive the best possible experience. In a rapidly evolving industry, Keetels Machines Bv stands out as a forward-thinking company that embraces innovation while maintaining a strong focus on customer needs. Partnering with Keetels means investing in quality, efficiency, and the future of food processing.
Seller's description
1. cnc turning
We have taken over this HWACHEON HI-TECH 200BL MC in working condition from production, see video of the working machine prior to dismantling.
The machine is very fully equipped and is standard delivered including;
- C-axis + driven turret (both 2 positions).
- Renishaw measuring probe.
- Chip conveyor + collection tray.
- Röhm 3-jaw (DURO-NC 260/3) including 2 sets of jaws.
- 13 pcs EWS tool holders of which 4 are driven.
- Various collets and clamping cones.
- Original HWACHEON and FANUC documentation.
Machine can be viewed in working condition in our showroom!!
Max turning diameter: 325 mm
Max turning diameter over cross slide: 500 mm
Max turning length: 532 mm
X axis travel: 195 mm
Z axis travel: 430 mm
C axis: 3.7/2.2, 5000 rpm, Ø16, 0.001 indexable
Feed Rapid rate X Y Z: 30 m/min
Through hole: 65 mm
Speed Min Max: 0 - 3,500 rpm
Spindle power: 11 kW (100% ED) - 15 kW (40% ED)
Spindle mounting: A2-8
Turret mount: 25x25 x Ø40mm
Turret positions: 12 pcs (all driven)
Tailstock taper: MK4
Control brand type: FANUC Series 0i-TD
Spindle hours: 4624
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
