Hyundai Wia HD2200 C cnc lathe

Hyundai Wia HD2200 C cnc lathe
Verified seller
Low working hours
Price on request
View price
You can purchase this machine from us directly, which gives you:
Secured payment
for the purchase
Dedicated compliance check
of the seller
Logistics and customs support
if applicable
After-sale follow up
if needed
Contact us to receive an offer.
Manufacturer
Hyundai
Model
Wia HD2200 C
Year
2019
Location
Poland
Category
Lathes - CNC lathes
Product id
P240104050
Buy this machine
Language
Language
cnc струг Hyundai Wia HD2200 C
Soustruh cnc Hyundai Wia HD2200 C
cnc drejebænk Hyundai Wia HD2200 C
Hyundai Wia HD2200 C Drehmaschine CNC
cnc τόρνος Hyundai Wia HD2200 C
Hyundai Wia HD2200 C cnc lathe
Torno cnc Hyundai Wia HD2200 C
Tour cnc Hyundai Wia HD2200 C
cnc tokarski stroj Hyundai Wia HD2200 C
Hyundai Wia HD2200 C cnc eszterga
Tornio cnc Hyundai Wia HD2200 C
cnc tekinimo staklės Hyundai Wia HD2200 C
Hyundai Wia HD2200 C cnc-draaibank
Tokarka CNC Hyundai Wia HD2200 C
Torno CNC Hyundai Wia HD2200 C
strung cnc Hyundai Wia HD2200 C
Hyundai Wia HD2200 C Токарный станок с ЧПУ
cnc strug Hyundai Wia HD2200 C
Hyundai Wia HD2200 C cnc svarv
Cnc torna Hyundai Wia HD2200 C
Get price & details
Details
About this seller
Specifications
Turning length
550 mm
Turning Ø
390 mm
Type of CNC
X-axis
215 mm
Z-axis
580 mm
Spindle taper
MT4
Turning speed
245 rpm
Spindle motor power
15 kW
Tailstock
yes
Bar feeder
no
-------------------
Length x width x height
3024.0
× 1650.0
× 1820.0
Weight
4200 kg
worked hours
50
hours
hours under power
80
hours
state
like new
At local norms
---------
status
visible
Last availability date
19/03/2026
Show more
Automatic description (AI-Generated)
The Hyundai Wia HD2200 C is a CNC turning center equipped with an iTrol control system (Siemens 828D), designed for precision machining. It features a maximum clearance above the bed of 550 mm and supports a maximum turning diameter of 390 mm with a turning length capacity of 550 mm. The machine can handle a maximum rod diameter of 81 mm.
Its spindle has a handle diameter of 254 mm and operates at speeds up to 3500 rpm. The spindle motor power is rated at 15 kW constant with a maximum of 18.5 kW, delivering torque ranging from 245.4 Nm constant to a maximum of 403.6 Nm. The spindle nose conforms to the JIS A2-8 standard.
The lathe provides a maximum travel of 215 mm on the X axis and 580 mm on the Z axis, with rapid traverse speeds of 24 m/min and 30 m/min respectively. It uses sliding guides for precise movement.
The tool head accommodates 12 tool positions, supporting square tool shanks of 25 x 25 mm and round shanks of 40 mm in diameter. The tool head rotates to the next position in approximately 0.12 seconds.
Additional features include an MT4 cone with a pinola diameter of 65 mm and a travel of 513.7 mm. Power supply requirements specify a maximum consumption of 17 kVA. The machine requires an air supply pressure of 5.5±1 bar and air demand of 100 l/min. It has a coolant tank capacity of 150 liters and a lubrication tank of 1.8 liters.
The machine dimensions are 3024 mm in length, 1650 mm in width, and 1820 mm in height, with a total weight of 4200 kg.

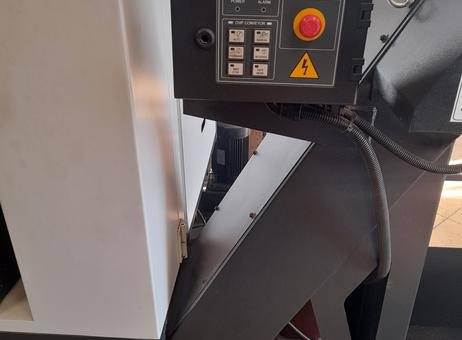

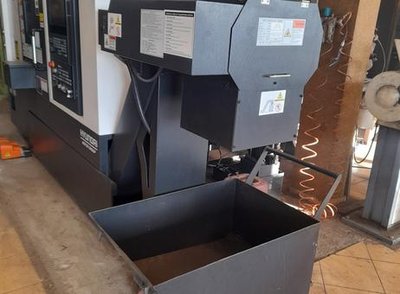

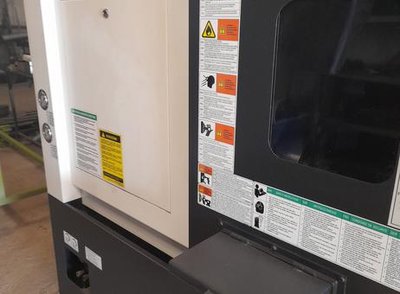

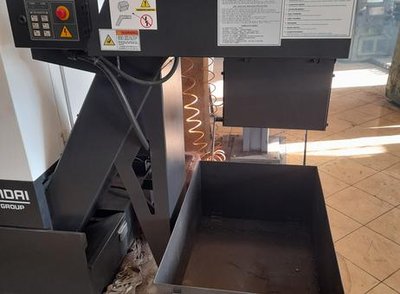

Visible components include a chip conveyor equipped with AUTO, MANUAL, FORWARD, REVERSE, 3MIN STOP, and SAFE MODE buttons, along with an emergency stop button on its control panel. The chip conveyor also has an attached chip collection bin on wheels for easy disposal. The lathe body features a control panel with power and alarm indicators, and the lathe door includes a viewing window with multiple safety and warning labels in various languages. Rear panels have control knobs labeled TAIL STOCK and CHUCK, accompanied by instruction or warning labels. The machine and chip conveyor appear clean with minor dust on the floor, indicating good maintenance.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
HD2200C turning center iTrol control (Siemens 828D)
Machining field:
-Maximum clearance above the bed mm Ø 550
-Maximum turning diameter mm Ø 390
-Maximum turning length mm 550
-Maximum rod diameter mm Ø 81
Spindle:
-Handle diameter mm Ø 254
-Spindle speed rpm 3500
-Spindle motor power (constant/max.) kW 15/18.5
-Torque (constant/max.) Nm 245.4/403.6
-JIS A2-8 spindle nose
Shifts:
-Maximum travel X axis mm 215
-Maximum Z axis travel mm 580
-Rapid traverse in the X axis m/min 24
-Rapid traverse in the Z axis m/min 30
Guide type:
-sliding
Tool head:
-Number of tool positions: 12 pcs
-Tool shank square mm 25 x 25
- Round tool shank mm Ø 40
-Head rotation time (1 position) s 0.12
Horse:
-MT4 cone
-Pinola mm Ø 65
-Travel mm 513.7
Requirements :
- regarding power supply: Maximum power consumption kVA 17
-Air supply pressure bar 5.51
-Air demand l/min 100
-Coolant tank l 150
- Lubrication tank l 1.8
General data Machine weight kg 4200
Height mm 1820
Area requirement mm 3024 x 1650
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
