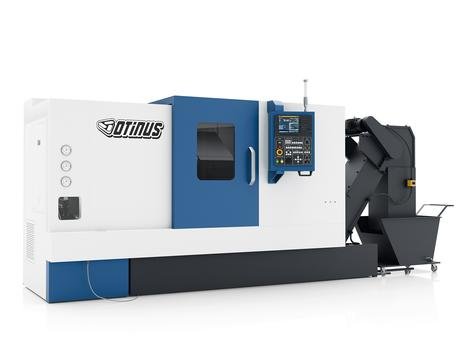

IN STOCK Industrial CNC Lathe 400x548 Otinus, Heavy-Duty Metal Turning Machine

IN STOCK Industrial CNC Lathe 400x548 Otinus, Heavy-Duty Metal Turning Machine
Verified seller
Price on request
Make an offer
Manufacturer
Otinus
Model
HLC-4055
Year
2025
Location
Poland
Category
Lathes - CNC lathes
Product id
P251119196
Buy this machine
Language
Language
CNC струг Otinus HLC-4055
Soustruh cnc Otinus HLC-4055
Otinus HLC-4055 CNC drejebænk
Otinus HLC-4055 Drehmaschine CNC
CNC τόρνος Otinus HLC-4055
IN STOCK Industrial CNC Lathe 400x548 Otinus, Heavy-Duty Metal Turning Machine
Torno cnc Otinus HLC-4055
Tour cnc Otinus HLC-4055
CNC tokarilica Otinus HLC-4055
Otinus HLC-4055 CNC eszterga
Tornio cnc Otinus HLC-4055
Otinus HLC-4055 CNC tekinimo staklės
Otinus HLC-4055 CNC-draaibank
Tokarka CNC Otinus HLC-4055
Torno CNC Otinus HLC-4055
Strung CNC Otinus HLC-4055
Otinus HLC-4055 Токарный станок с ЧПУ
CNC strug Otinus HLC-4055
Otinus HLC-4055 CNC-svarv
CNC torna tezgâhı Otinus HLC-4055
Get price & details
+48 575 …
Show phone
Details
About this seller
Specifications
Turning length
548 mm
Turning Ø
400 mm
Ø above the bed
560 mm
Ø above transversing slide
320 mm
Type of CNC
Fanuc 0i TF
X-axis
210 mm
Z-axis
610 mm
Spindle taper
JISA2-6
Spindle bore
76 mm
Number of turrets
1
Number of tools on turret
12
Turning speed
4500 rpm
Spindle motor power
15 kW
Tailstock
yes
Bar feeder
no
-------------------
Length x width x height
4200.0
× 2050.0
× 1850.0
Weight
4500 kg
worked hours
hours under power
state
new
At local norms
---------
status
packed
Last availability date
20/04/2026
Show more
Automatic description (AI-Generated)
The Otinus HLC-4055 is a CNC lathe designed for precise and versatile turning operations, equipped with a FANUC 0i TF control system. It offers a maximum turning diameter over the bed of 560 mm and over the support of 320 mm, with a maximum turning length of 548 mm. The machine provides a travel range of 210 mm on the X-axis and 610 mm on the Z-axis, enabling machining of various workpiece sizes.
This lathe features a hydraulic V12 turret capable of holding 12 tools, with tool dimensions of 25x25 mm externally and an inner diameter of 40 mm. The turret indexing time is approximately 0.55 seconds, facilitating efficient tool changes during operation.
The spindle is belt-driven and can reach speeds up to 4500 rpm. It has a spindle bore of 76 mm and a spindle nose conforming to JISA2-6 standards. The spindle motor delivers 15 kW of power, providing a torque of 140 to 250 Nm for 15-minute intervals. The spindle front bearing diameter measures 100 mm, with an overall spindle diameter of 208 mm.
Feed speeds include rapid traverse rates of 24 m/min on the X-axis and 30 m/min on the Z-axis, powered by servo motors each rated at 1.8 kW. The tailstock features a quill diameter of 100 mm, with a quill stroke of 120 mm and a travel range of 410 mm, using a MT NO.4 centering type.
Additional machine specifications include a power supply requirement of 25 kVA, a coolant tank capacity of 200 liters, and a total machine weight of 4500 kg. The machine's dimensions are 4200 mm in length, 2050 mm in width, and 1850 mm in height.
The machine is finished in a white and blue color scheme and includes an enclosed work area with a window and a handle on the door for safe operation. The control panel is mounted on the front right side and features a display with multiple buttons for comprehensive control. On the left side, there are three pressure gauges for monitoring machine parameters. Additionally, a chip conveyor system is installed at the rear right side to facilitate efficient chip removal during machining processes.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
CNC lathe HLC-4055 on Fanuc 0i TF control
Machining range:
- Max. turning diameter over bed: Φ 560 mm
- Max. turning diameter over support: Φ 320 mm
- Max. turning diameter: Φ 400 mm
- Max. turning length: 548 mm
- Distance from spindle center to ground: 980 mm
- Travel range in X axis: 210 mm
- Travel range in Z axis: 610 mm
Tool head:
- Turret type: Hydraulic V12
- Outer dimension: 25x25 mm
- Inner diameter: Φ 40 mm
- Indexing time: Φ 0.55 s
Spindle:
- Drive type: Belt transmission
- Maximum spindle speed: 4500 o/min
- Power consumption - 15 min: 11/15 kW
- Torque - 15 min: 140/250 Nm
- Spindle nose: JISA2-6
- Spindle through hole: Φ 76 mm
- Maximum workpiece diameter: Φ 50 mm
- Spindle front bearing diameter: Φ 100 mm
- Spindle diameter: 208 mm
Feed speed:
- Rapid traverse X: 24 m/min
- Rapid traverse Z: 30 m/min
- Servo motor power X/Z: 1.8/1.8 kW
Tailstock:
- Tailstock quill diameter: Φ 100 mm
- Centering type: MT NO.4
- Quill stroke: 120 mm
- Travel range: 410 mm
Other parameters:
- Control: FANUC
- Power supply: 25 kVA
- Coolant tank volume: 200 l
- Machine weight: 4.5 t
- Dimensions [length × width × height]: 4200×2050×1850 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
