Index G300 L YB CNC lathe

Index G300 L YB CNC lathe
Top seller
Price on request
View price
Manufacturer
Index
Model
G300 L YB
Year
1999
Location
Germany
Category
Lathes - CNC lathes
Product id
P260402081
Buy this machine
Language
Language
CNC струг Index G300 L YB
CNC soustruh Index G300 L YB
Index G300 L YB CNC-drejebænk
Index G300 L YB CNC-Drehmaschine
Τόρνος CNC Index G300 L YB
Index G300 L YB CNC lathe
Torno CNC Index G300 L YB
Tour CNC Index G300 L YB
CNC tokarski stroj Index G300 L YB
Index G300 L YB CNC esztergagép
Tornio CNC Index G300 L YB
Index G300 L YB CNC tekinimo staklės
Index G300 L YB CNC-draaibank
Tokarka CNC Index G300 L YB
Torno CNC Index G300 L YB
Strung CNC Index G300 L YB
Index G300 L YB Токарный станок с ЧПУ
CNC strug Index G300 L YB
Index G300 L YB CNC-svarv
CNC torna Index G300 L YB
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning Ø
270 mm
Type of CNC
X-axis
140 mm
Z-axis
1245 mm
Spindle taper
vdi 30
Spindle bore
65 mm
Number of tools on turret
12
Turning speed
6000 rpm
Spindle motor power
9.4 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
7250.0
× 2150.0
× 2100.0
Weight
8330 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Index G300 L YB
Last availability date
20/06/2026
Show more
Automatic description (AI-Generated)
The Index G300 L YB is a horizontal machining center manufactured in 1999, designed for precise and versatile turning operations. This machine features a robust 7-axis configuration, providing extensive machining capabilities with axis travels of 140 mm on the X-axis, 100 mm on the Y-axis, and 1245 mm on the Z-axis. It measures 7250 mm in length, 2150 mm in width, and 2100 mm in height, with a total weight of 8330 kg.
Equipped with a milling spindle capable of reaching speeds up to 6000 rpm and a power output of 9.4 kW, the machine supports efficient milling tasks. The spindle uses a VDI 30 taper size, and the tool system accommodates up to 12 tool stations, allowing for a diverse range of tooling options. The machine offers a maximum turning diameter of 270 mm and a maximum swing diameter of 590 mm, suitable for a variety of workpieces.
The machine includes a counter spindle and a tailstock with a stroke of 630 mm and a quill diameter of 125 mm, providing additional support for longer workpieces. The tailstock exerts a force of 7500 N. The hydraulic tank capacity is 165 liters, and the coolant tank holds 300 liters, ensuring proper machine cooling and hydraulic operation.

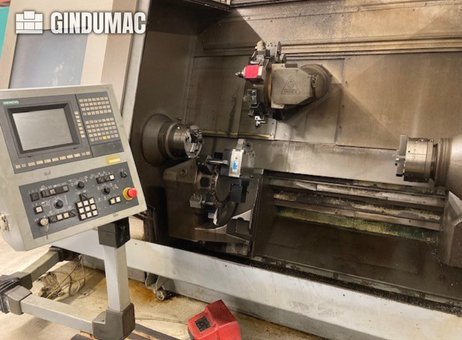

The control panel is a Siemens unit mounted on a stand, featuring a screen and multiple buttons for user-friendly operation. The machine's interior shows signs of use with some dirt and wear, while the exterior, painted in teal and gray, also displays some wear but remains intact. A tool turret with multiple tool holders and a chuck mounted on the spindle are present within the machining area.
Additional features include a power supply of 3 phase / 50 Hz, rated voltage of 400 V, control voltage of 24 V, rated current of 120 A, and a rated power of 67 kW. The machine offers rapid traverse rates of up to 30 m/min on the Z-axis, facilitating efficient machining cycles.
This Index G300 L YB horizontal machining center is suitable for high-quality turning and milling operations, combining solid construction with advanced tooling and control options.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
This 7-axis Index G300 L YB was manufactured in 1999. It features a maximum turning diameter of 270 mm and a maximum swing diameter of 590 mm. The machine includes a robust tool system with 12 stations and a milling spindle speed of up to 6000 rpm. If you are looking to get high-quality turning capabilities, consider the Index G300 L YB horizontal turning machine we have for sale. Contact us for further details.Power supply: 3 phase / 50 Hz
Rated voltage: 400 V
Control voltage: 24 V
Rated current: 120 A
Rated power: 67 kW
Electrical cabinet weight: 710 kg
Spindle bore: 65 / 90 mm
Spindle bearing diameter (front): 110 / 140 mm
Spindle nose: ISO 702/1 size 6 / 8
Chuck diameter: 200 / 250 / 315 mm
Maximum turning diameter: 270 mm
Maximum swing diameter: 590 mm
Power (100% duty cycle): 19 / 28 / 43 kW
Power (40% duty cycle): 28 / 40 / 57 kW
Torque (100% duty cycle): 120 / 178 / 275 Nm
Torque (40% duty cycle): 178 / 255 / 363 Nm
Maximum speed: 5000 / 3500 rpm
Counter spindle bore: 65 / 90 mm
Counter spindle bearing diameter: 110 / 140 mm
Counter spindle nose: ISO 702/1 size 6 / 8
Counter spindle chuck diameter: 200 / 250 / 315 mm
Counter spindle power (100%): 19 / 28 kW
Counter spindle power (40%): 28 / 40 kW
Counter spindle torque (100%): 120 / 178 Nm
Counter spindle torque (40%): 178 / 255 Nm
Counter spindle max speed: 5000 / 3500 rpm
Minimum distance between spindles: 20 mm
Longitudinal travel: 770 / 1310 mm
Rapid traverse: 22.5 m/min
Rapid traverse X: 24 m/min
Rapid traverse Z: 30 m/min
Rapid traverse Y: 24 m/min
Tool system: VDI 30
Number of tool stations: 12
Max boring bar diameter: 50 mm
Milling spindle speed: up to 6000 rpm
Milling spindle power: 9.4 kW
Milling spindle torque: 19 Nm
Tailstock stroke: 630 mm
Tailstock quill diameter: 125 mm
Tailstock force: 7500 N
Hydraulic tank: 165 liters
Coolant tank: 300 liters
Counter Spindle: yes
Driven Tools: no
Machine Height: 2100 mm
Machine Length: 7250 mm
Machine Weight: 8330 kg
Machine Width: 2150 mm
Number of Axes: 7
Spindle Power: 9.4 kW
Spindle Speed: 6000 RPM
Taper Size: VDI 30
X-axis Travel: 140 mm
Y-axis Travel: 100 mm
Z-axis Travel: 1245 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
