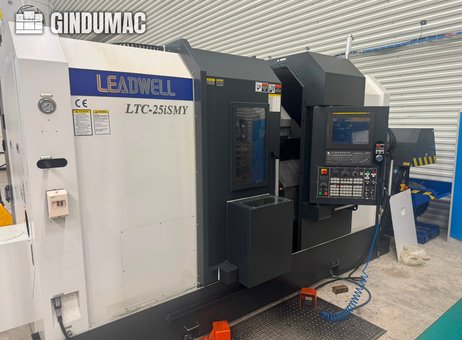

Leadwell LTC-25iSMY CNC lathe
34.00 €
Do negocjacji
| Strona główna | gebraucht |
|---|---|
| Producent | Fanuc |
| Rok produkcji | 2025 |
| Manufacturer | Leadwell |
| Model | LTC-25iSMY |
| Year | 2025 |
| Location | Slovakia |
| Category | Lathes - CNC lathes |
| Turning length | 550 mm |
| Turning Ø | 300 mm |
| Ø above the bed | 800 mm |
| Ø above transversing slide | 350 mm |
| Type of CNC | Fanuc |
| X-axis | 175 mm |
| Z-axis | 600 mm |
| Max workpiece weight | kg |
| Spindle taper | A2-5" |
| Spindle bore | 500 mm |
| Number of tools on turret | 12 |
| Turning speed | 4500 rpm |
| Spindle motor power | 11 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 4210.0 × 2085.0 × 2365.0 |
| Weight | 8900 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Last availability date | 06/09/2026 |
| Product id | P260828352 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2002 |
| Last activity | Sept. 10, 2026 |
| Number of turrets | 1 |
| Number of rotating tools | 12 |
| Length between centers | 3100 mm |
Opis
This 5-axis Leadwell LTC-25iSMY was manufactured in 2025. It features a maximum turning diameter of 590 mm and a turning length of 770 mm. The machine is equipped with a powerful spindle speed of 3500 rpm and a robust tool head with 12 positions. If you are looking to get high-quality turning capabilities, consider the Leadwell LTC-25iSMY horizontal turning machine we have for sale. Contact us for further details regarding this machine.Capacities
Max. turning diameter above the bed: 590 mm
Max. turning diameter above the transverse support: 590 mm
Max. turning diameter: 430 mm
Max. turning length: 770 mm
Max. rod diameter: 78 mm
Max. workpiece weight: 39 kg
Axes and travels
Z2 (counterspindle) travel: 780 mm
Min. C1 axis positioning increment (main spindle): 0.001
Min. C2 axis positioning increment (counterspindle): 0.001
Main spindle
Chuck size: 254 mm
Spindle taper: A2-8
Spindle bore: 89 mm
Spindle drive type: Fanuc A P30/6000i

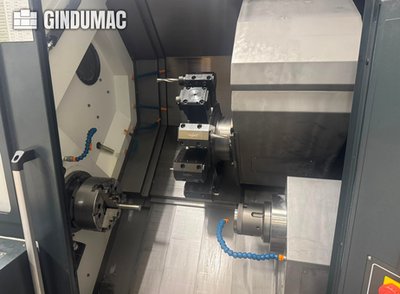

Counterspindle
Max. speed: 4000 rpm
Chuck size: 210 mm
Taper: A2-6
Max. rod diameter: 66 mm
Power: 15 kW
Spindle drive type: Fanuc A 12/7000i

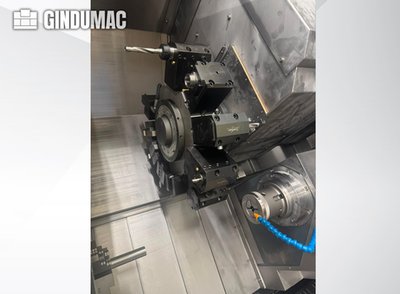

Turret / tooling (EWS tool head)
Clamping system diameter: BMT65
Number of positions: 12
Max. external tool size: 25 x 25 mm
Max. internal tool clamping diameter (threading): 40 mm
Neighbor tool change time: 0.8 s
Max. tool change time: 1.3 s
Max. speed of driven tools (axial): 4000 rpm
Max. speed of driven tools (radial): 4000 rpm
Rotary tool drive power: 4.5 kW
Rapid feeds
X: 15,000 mm/min
Z: 20,000 mm/min
Y: 7,500 mm/min
Z2 (counterspindle): 20,000 mm/min
Control
Fanuc 0iTF PLUS with 15" LCD, Manual Guide i, Ethernet
Machine input: 65 kVA
Additional equipment
Collet clamping
Hydraulic chuck 254/3 (10"), bar max Ø77 mm, 3500 rpm
Renishaw HPMA tool probe (motorized arm)
High-pressure coolant 20 bar through tool head
Workpiece blow-off nozzle above main spindle
Workpiece blow-off nozzle above counterspindle
Cassette chip conveyor with chip container
Counterspindle with chuck 203/3
Workpiece removal shovel with container
Preparation/interface for bar feeder
Beacon alarm (machine status light)
Oil separator for coolant emulsion (from lost lubrication)
3 pcs axial rotary unit BMT65
3 pcs radial rotary unit BMT65
4 pcs double-sided holder for external turning BMT65
4 pcs double-sided holder for internal turning BMT65
1 pc single-sided holder for internal turning
Filtermist extraction FX5002
Control Brand: FANUC
Control Model: 0iTF PLUS
Counter Spindle: yes
Driven Tools: no
Machine Height: 2365 mm
Machine Length: 4210 mm
Machine Weight: 8900 kg
Machine Width: 2085 mm
Number of Axes: 5
Spindle Power: 18.5 kW
Spindle Speed: 3500 RPM
X-axis Travel: 225 mm
Y-axis Travel: 100 mm
Z-axis Travel: 800 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
