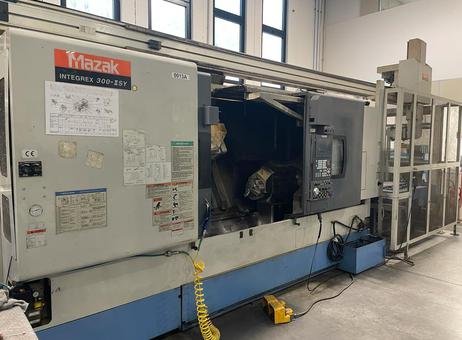

MAZAK INTEGREX 300II SY cnc lathe

MAZAK INTEGREX 300II SY cnc lathe
Verified seller
Price on request
Make an offer
Manufacturer
MAZAK
Model
INTEGREX 300II SY
Year
Location
Italy
Category
Lathes - CNC lathes
Product id
P230313125
Buy this machine
Language
Language
MAZAK INTEGREX 300II SY
Soustruh cnc MAZAK INTEGREX 300II SY
MAZAK INTEGREX 300II SY
MAZAK INTEGREX 300II SY Drehmaschine CNC
MAZAK INTEGREX 300II SY
MAZAK INTEGREX 300II SY cnc lathe
Torno cnc MAZAK INTEGREX 300II SY
Tour cnc MAZAK INTEGREX 300II SY
MAZAK INTEGREX 300II SY
MAZAK INTEGREX 300II SY
Tornio cnc MAZAK INTEGREX 300II SY
MAZAK INTEGREX 300II SY
MAZAK INTEGREX 300II SY
Tokarka CNC MAZAK INTEGREX 300II SY
MAZAK INTEGREX 300II SY
MAZAK INTEGREX 300II SY
MAZAK INTEGREX 300II SY Токарный станок с ЧПУ
MAZAK INTEGREX 300II SY
MAZAK INTEGREX 300II SY
Cnc torna MAZAK INTEGREX 300II SY
Get price & details
+39 3 93…
Show phone
Details
About this seller
Specifications
Turning length
1552 mm
Turning Ø
610 mm
Type of CNC
Mazatrol Fusion 640 MT
X-axis
580 mm
Z-axis
1605 mm
Spindle taper
ASA 8
Spindle bore
77 mm
Turning speed
3500 rpm
Spindle motor power
15 kW
Tailstock
no
Bar feeder
no
-------------------
worked hours
hours under power
state
good
At local norms
yes
status
visible
Last availability date
17/03/2026
Show more
Automatic description (AI-Generated)
The MAZAK INTEGREX 300II SY is a versatile CNC lathe designed for complex metal machining tasks. It features a maximum turning diameter of 610 mm and a turning length of 1552 mm, supported by an X-axis travel of 580 mm and a Z-axis travel of 1605 mm. The machine is equipped with a spindle bore of 77 mm and a spindle speed reaching up to 3500 rpm, powered by a 15 kW spindle motor. This lathe includes a Y-axis, enhancing its capability for multi-axis machining, and is controlled by the MAZATROL Fusion 640 MT CNC system, which offers advanced programming and precise operation.
The machine integrates two spindles with ASA 8 connections, allowing simultaneous machining on both ends of a workpiece to improve productivity. It also supports live tooling and milling operations, which expand its functionality beyond standard turning tasks. The tool magazine accommodates 40 positions, enabling efficient tool changes and reducing downtime. Additional features include synchronized tapping, drilling cycles, cylindrical interpolation, and compatibility with EIA/ISO programming standards.

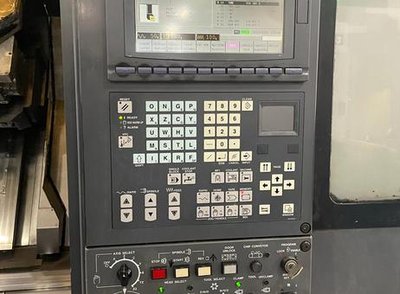

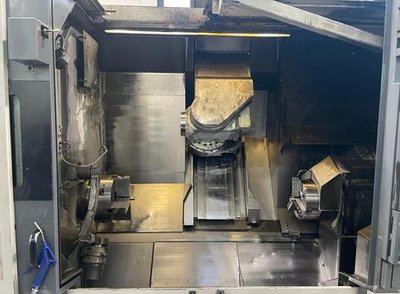

Visible components observed include the control panel with a display screen and various operational buttons, a tool turret centrally positioned above the machine bed, and two chucks mounted inside the working area. The machine is housed within a large safety enclosure with mesh panels and includes a control pendant for operator convenience. The overall condition of the machine appears clean and well-maintained, with no visible damage.
This MAZAK INTEGREX 300II SY CNC lathe is well-suited for manufacturers requiring a high-performance, multi-tasking machine capable of handling intricate parts and complex machining operations in a single setup.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Y AXIS SPINDLE
/COUNTER SPINDLE
LIVE TOOLS
Numerical control Mazatrol Fusion 640 MT
Max rotation diameter mm 610
Max machining diameter mm 610
Max machining length mm 1552
Bar passage mm 77
X axis travel mm 580
Y axis travel mm 230
Z axis travel mm 1605
X/Z axis rapid feed 30 m
Y axis rapid feed 15 m
1st and 2nd spindle connection ASA 8
1st and 2nd spindle speed rpm 35-3500
Spindle motor power Kw 22/15 (30 minutes/continuous)
Milling power Kw 15 (10 minutes)
Tool magazine KM63 n.40 positions
Motorized tool speed rpm 10000
COMPLETE WITH:
- Air blow on the main spindle
- Motor overload detector
- 15 bar
coolant - Automatic shut-off
- High/low pressure selection of main spindle clamps
- Renishaw -
Side hinged chip conveyor -
Synchronized tapping
- Drilling cycle
- Cylindrical interpolation
- EIA/ ISO

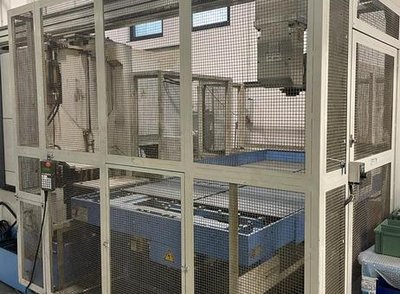

-GL 300F Gantry System, D3 Hand with SHUTTER LOOP II Conveyor
this extra information is standard for this model. Please always double-check the details during a visit
The MAZAK INTEGREX 300II SY CNC lathe is a cutting-edge and highly versatile metal machining solution, renowned for its advanced technology and exceptional performance. This state-of-the-art machine combines the capabilities of a traditional lathe and a machining center, making it ideal for complex and multi-tasking operations.
The INTEGREX 300II SY boasts a powerful main spindle and a second spindle with a Y-axis, enabling simultaneous machining of both ends of a workpiece for increased productivity. Its advanced CNC control system provides seamless programming and precise control over various machining functions.
Equipped with a high-capacity automatic tool changer, the lathe can efficiently switch between tools, reducing setup times and enhancing overall efficiency. The machine's milling capabilities further expand its versatility, enabling complex contouring and multi-sided machining in a single setup.
The INTEGREX 300II SY's Y-axis and milling spindle allow for off-center drilling and milling operations, accommodating a wide range of component geometries. Its B-axis tilting capability enables 5-axis simultaneous machining, making it suitable for intricate parts and reducing the need for multiple setups.
Additionally, the lathe's built-in automation options, such as a bar feeder and parts catcher, promote uninterrupted production and reduce manual intervention.
In conclusion, the MAZAK INTEGREX 300II SY CNC lathe is a high-performance and multi-tasking metal machining solution. Its advanced features, precise control, and exceptional versatility make it a top choice for manufacturers seeking to optimize productivity and achieve outstanding results in complex metalworking operations.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
