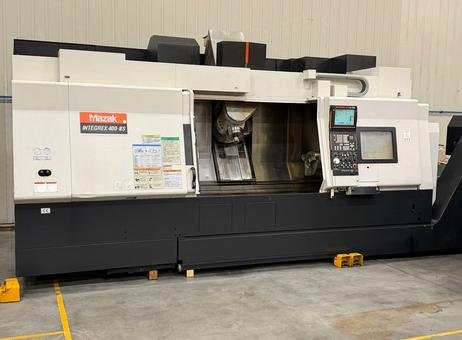

MAZAK INTEGREX 400 III-S cnc lathe

MAZAK INTEGREX 400 III-S cnc lathe
Top seller
Low working hours
Price on request
View price
Manufacturer
MAZAK
Model
INTEGREX 400 III-S
Year
2005
Location
Denmark
Category
Lathes - CNC lathes
Product id
P241223025
Buy this machine
Language
Language
cnc струг MAZAK INTEGREX 400 III-S
Soustruh cnc MAZAK INTEGREX 400 III-S
MAZAK INTEGREX 400 III-S cnc drejebænk
MAZAK INTEGREX 400 III-S Drehmaschine CNC
cnc τόρνος MAZAK INTEGREX 400 III-S
MAZAK INTEGREX 400 III-S cnc lathe
Torno cnc MAZAK INTEGREX 400 III-S
Tour cnc MAZAK INTEGREX 400 III-S
cnc tokarski stroj MAZAK INTEGREX 400 III-S
MAZAK INTEGREX 400 III-S cnc eszterga
Tornio cnc MAZAK INTEGREX 400 III-S
cnc tekinimo staklės MAZAK INTEGREX 400 III-S
MAZAK INTEGREX 400 III-S cnc-draaibank
Tokarka CNC MAZAK INTEGREX 400 III-S
Torno CNC MAZAK INTEGREX 400 III-S
strung cnc MAZAK INTEGREX 400 III-S
MAZAK INTEGREX 400 III-S Токарный станок с ЧПУ
cnc strug MAZAK INTEGREX 400 III-S
MAZAK INTEGREX 400 III-S cnc svarv
Cnc torna MAZAK INTEGREX 400 III-S
Get price & details
Details
About this seller
Specifications
Turning length
1524 mm
Turning Ø
420 mm
Ø above transversing slide
850 mm
Type of CNC
Spindle taper
Turning speed
3300 rpm
Spindle motor power
30 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
5100.0
× 2200.0
× 2798.0
Weight
13303 kg
worked hours
7167
hours
hours under power
state
excellent
At local norms
yes
status
under power
Last availability date
05/05/2026
Show more
Automatic description (AI-Generated)
This listing features a MAZAK INTEGREX 400 III-S CNC lathe, manufactured in 2005. The machine offers a maximum turning diameter of 850 mm over the transverse slide and 420 mm above the slide, with a turning length capacity of 1524 mm. It is equipped with a powerful 30 kW spindle motor capable of reaching speeds up to 3300 rpm, suitable for a wide range of machining applications.
The lathe includes advanced multi-axis control with 6 axes, featuring a Mazatrol 640 control system for precise and flexible operation. It supports a C-axis with a stroke resolution of 0.001 degrees on both the main and sub spindles, enhancing its capability for complex machining tasks. The sub spindle motor provides 26/22 kW power, complementing the main spindle's performance.

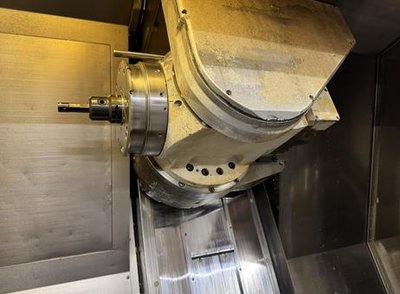

Additional features include a Y-axis travel of +/- 115 mm and a B-axis stroke ranging from -30 to +195 degrees, with the B-axis spindle capable of 12,000 rpm and powered by an 18.5 kW motor. The B-axis system utilizes a Capto C6 tool interface, enhancing tooling versatility. The machine is equipped with an automatic tool changer (ATC) magazine housing 40 tool stations, improving productivity and reducing setup times.

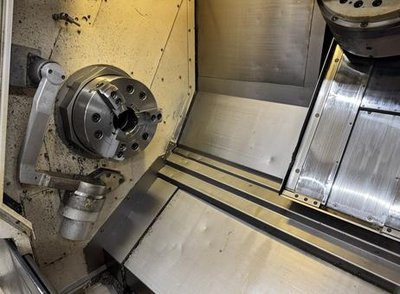

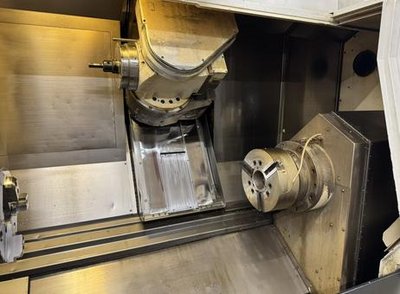

Hydraulic chucks with a diameter of 300 mm are installed on both the main and sub spindles, facilitating secure workpiece holding. The overall machine dimensions are 5100 mm in length, 2200 mm in width, and 2798 mm in height, with a total weight of approximately 13,303 kg. The total power source requirement is 99.9 kVA.

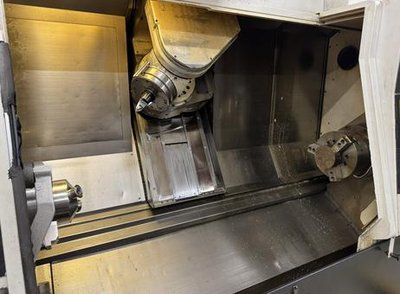

Visual inspection shows the machine has some signs of use but is generally clean. The control panel features a screen and keypad labeled Mazatrol 640MT Pro, and a rotary tool turret is present inside the work area. This lathe is suitable for complex and high-precision machining tasks requiring multi-axis capabilities and robust power.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Max. Turning dia o/slide:
850 mm dia.
Turning Length:
1524 mm
Max. Turning diameter:
420 mm dia.
Boring trough drawing pipe:
102 mm dia.
C Axis - Mainspindle Stroke:
0.001 degree
Main motor power:
30 kw
Y axis :
+/- 115 mm
B axis milling power:
18.5 kw
B axis spindrel rpm.:
12000 rpm
Total Power Source:
99.9 kva
Control system:
Mazatrol 640 manuf.
Hydr. Chuck Mainspindle:
300 mm dia
Se alle specifikationerHydr. Chuck Supspindle :
300 mm dia
Delivery time :
Feb. 2025
Controlled in:
6 Axis
ATC Tool magazine with:
40 Stations
Main Spindle speed Range:
3300 rpm
C Axis – Sub spindle Stroke:
0.001 degree
Motor Power Subspindle:
26/22 Kw
B axis Stroke:
-30/+195 Degree
Working hours Spindle:
7167 Hours
B axis system:
Capto C6
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2019
Offers online
88
Last activity
May 6, 2026
Seller's description
Max. Turning dia o/slide:
850 mm dia.
Turning Length:
1524 mm
Max. Turning diameter:
420 mm dia.
Boring trough drawing pipe:
102 mm dia.
C Axis - Mainspindle Stroke:
0.001 degree
Main motor power:
30 kw
Y axis :
+/- 115 mm
B axis milling power:
18.5 kw
B axis spindrel rpm.:
12000 rpm
Total Power Source:
99.9 kva
Control system:
Mazatrol 640 manuf.
Hydr. Chuck Mainspindle:
300 mm dia
Se alle specifikationerHydr. Chuck Supspindle :
300 mm dia
Delivery time :
Feb. 2025
Controlled in:
6 Axis
ATC Tool magazine with:
40 Stations
Main Spindle speed Range:
3300 rpm
C Axis – Sub spindle Stroke:
0.001 degree
Motor Power Subspindle:
26/22 Kw
B axis Stroke:
-30/+195 Degree
Working hours Spindle:
7167 Hours
B axis system:
Capto C6
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Specifications
Turning length
1524 mm
Turning Ø
420 mm
Ø above transversing slide
850 mm
Type of CNC
Spindle taper
Turning speed
3300 rpm
Spindle motor power
30 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
5100.0
× 2200.0
× 2798.0
Weight
13303 kg
worked hours
7167
hours
hours under power
state
excellent
At local norms
yes
status
under power
Last availability date
05/05/2026
Show more
Automatic description (AI-Generated)
This listing features a MAZAK INTEGREX 400 III-S CNC lathe, manufactured in 2005. The machine offers a maximum turning diameter of 850 mm over the transverse slide and 420 mm above the slide, with a turning length capacity of 1524 mm. It is equipped with a powerful 30 kW spindle motor capable of reaching speeds up to 3300 rpm, suitable for a wide range of machining applications.
The lathe includes advanced multi-axis control with 6 axes, featuring a Mazatrol 640 control system for precise and flexible operation. It supports a C-axis with a stroke resolution of 0.001 degrees on both the main and sub spindles, enhancing its capability for complex machining tasks. The sub spindle motor provides 26/22 kW power, complementing the main spindle's performance.
Additional features include a Y-axis travel of +/- 115 mm and a B-axis stroke ranging from -30 to +195 degrees, with the B-axis spindle capable of 12,000 rpm and powered by an 18.5 kW motor. The B-axis system utilizes a Capto C6 tool interface, enhancing tooling versatility. The machine is equipped with an automatic tool changer (ATC) magazine housing 40 tool stations, improving productivity and reducing setup times.
Hydraulic chucks with a diameter of 300 mm are installed on both the main and sub spindles, facilitating secure workpiece holding. The overall machine dimensions are 5100 mm in length, 2200 mm in width, and 2798 mm in height, with a total weight of approximately 13,303 kg. The total power source requirement is 99.9 kVA.
Visual inspection shows the machine has some signs of use but is generally clean. The control panel features a screen and keypad labeled Mazatrol 640MT Pro, and a rotary tool turret is present inside the work area. This lathe is suitable for complex and high-precision machining tasks requiring multi-axis capabilities and robust power.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
About this seller
Client type
Machinery dealer
Active since
2019
Offers online
88
Last activity
May 6, 2026

---
