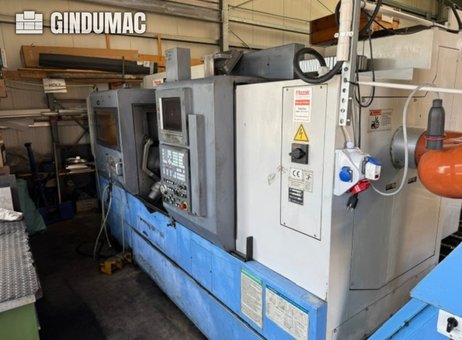

Mazak SQT-30M * 1000 CNC lathe
34.00 €
Do negocjacji
| Strona główna | gebraucht |
|---|---|
| Producent | Mazak |
| Rok produkcji | 1998 |
| Manufacturer | Mazak |
| Model | SQT-30M * 1000 |
| Year | 1998 |
| Location | Germany |
| Category | Lathes - CNC lathes |
| Turning length | 532 mm |
| Turning Ø | 350 mm |
| Ø above the bed | 675 mm |
| Ø above transversing slide | 660 mm |
| Type of CNC | Mazatrol Smart |
| X-axis | 600 mm |
| Z-axis | 250 mm |
| Spindle taper | Capto C6 |
| Spindle bore | 88 mm |
| Number of tools on turret | 12 |
| Turning speed | 5000 rpm |
| Spindle motor power | 15 kW |
| Tailstock | no |
| Bar feeder | no |
| Weight | 9500 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Last availability date | 05/10/2026 |
| Product id | P260922231 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2050 |
| Last activity | Oct. 7, 2026 |
| Number of turrets | 1 |
| Number of rotating tools | 12 |
| Length between centers | 500 mm |
| Max workpiece weight | 700 kg |
Opis
Manufacturer: Mazak
Model: SQT-30M * 1000 CNC turn-mill centre
Year of manufacture: 1998
Technical condition: as-is, where-is
Working hours: 116,213 hours
Max swing diameter: 560 mm
Max swing over carriage: 500 mm
Max turning diameter: 410 mm
Standard turning diameter: 336 mm
Max turning length: 989 mm
Max bar capacity (diameter): 77 mm
Main spindle speed range: 35 - 3,300 rpm
Main spindle motor power: 26 kW / 22 kW (30 min / 100% continuous)
Max spindle torque: 637 Nm
Spindle nose: A2-8
Spindle through-hole: 88 mm
Chuck diameter: 304 mm
C-axis indexing: 0° - 360° / 0.001°
Turret positions: 12
Turning tool shank size: 25 x 25 x 150 mm
Boring bar shank diameter range: 8 / 10 / 12 / 16 / 25 / 32 / 40 / 50 mm
Turret indexing time: approx. 2.2 s
Driven tools motor power: 7.5 kW
Driven tools max torque: 96 Nm
Driven tools speed range: 90 - 1,500 rpm
Driven tools drilling capacity: 23 mm
Driven tools tapping capacity: M16 (H-type holder) / M12 (V-type holder)
Driven tools end milling capacity: 25 mm
X-axis travel: 245 mm
Z-axis travel: 1,035 mm
X-axis rapid traverse: 18 m/min
Z-axis rapid traverse: 24 m/min
C-axis rapid traverse: 100 rpm
X/Z-axis feed rate: 0 - 5,000 mm/min
C-axis feed rate: 1° - 2,000°/min
Tailstock quill stroke: 130 mm
Tailstock quill diameter: 100 mm
Tailstock taper: MK 4
Tailstock travel: 880 mm
Coolant tank capacity: 250 l
Coolant pump flow rate: approx. 20 l/min
Coolant pump pressure: 5 bar
Power capacity: 52 kVA
Operating voltage: 400 V / 50 Hz
Pneumatic pressure: 5 bar, 100 l/min
Required floor space: approx. 7.7 m²
Machine weight: approx. 9,500 kg
Additional equipment & accessories: Tool Eye (tool presetter), 3-jaw hydraulic chuck 304 mm with soft/hard jaws, chip/coolant guard enclosure, work light, synchronized tapping, driven tool holders (CAT40 3x vertical, 3x horizontal), boring bar holders, set of adjusting tools, foundation equipment
Control brand: Mazatrol
Control model: T-Plus
Counter spindle: no
Driven tools: yes
Number of axes: 3
X-axis travel: 245 mm
Z-axis travel: 1,035 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Model: SQT-30M * 1000 CNC turn-mill centre
Year of manufacture: 1998
Technical condition: as-is, where-is
Working hours: 116,213 hours
Max swing diameter: 560 mm
Max swing over carriage: 500 mm
Max turning diameter: 410 mm
Standard turning diameter: 336 mm
Max turning length: 989 mm
Max bar capacity (diameter): 77 mm
Main spindle speed range: 35 - 3,300 rpm
Main spindle motor power: 26 kW / 22 kW (30 min / 100% continuous)
Max spindle torque: 637 Nm
Spindle nose: A2-8
Spindle through-hole: 88 mm
Chuck diameter: 304 mm
C-axis indexing: 0° - 360° / 0.001°
Turret positions: 12
Turning tool shank size: 25 x 25 x 150 mm
Boring bar shank diameter range: 8 / 10 / 12 / 16 / 25 / 32 / 40 / 50 mm
Turret indexing time: approx. 2.2 s
Driven tools motor power: 7.5 kW
Driven tools max torque: 96 Nm
Driven tools speed range: 90 - 1,500 rpm
Driven tools drilling capacity: 23 mm
Driven tools tapping capacity: M16 (H-type holder) / M12 (V-type holder)
Driven tools end milling capacity: 25 mm
X-axis travel: 245 mm
Z-axis travel: 1,035 mm
X-axis rapid traverse: 18 m/min
Z-axis rapid traverse: 24 m/min
C-axis rapid traverse: 100 rpm
X/Z-axis feed rate: 0 - 5,000 mm/min
C-axis feed rate: 1° - 2,000°/min
Tailstock quill stroke: 130 mm
Tailstock quill diameter: 100 mm
Tailstock taper: MK 4
Tailstock travel: 880 mm
Coolant tank capacity: 250 l
Coolant pump flow rate: approx. 20 l/min
Coolant pump pressure: 5 bar
Power capacity: 52 kVA
Operating voltage: 400 V / 50 Hz
Pneumatic pressure: 5 bar, 100 l/min
Required floor space: approx. 7.7 m²
Machine weight: approx. 9,500 kg
Additional equipment & accessories: Tool Eye (tool presetter), 3-jaw hydraulic chuck 304 mm with soft/hard jaws, chip/coolant guard enclosure, work light, synchronized tapping, driven tool holders (CAT40 3x vertical, 3x horizontal), boring bar holders, set of adjusting tools, foundation equipment
Control brand: Mazatrol
Control model: T-Plus
Counter spindle: no
Driven tools: yes
Number of axes: 3
X-axis travel: 245 mm
Z-axis travel: 1,035 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
