Miyano ABX64 YY2 CNC lathe

Miyano ABX64 YY2 CNC lathe
Top seller
Price on request
Make an offer
Manufacturer
Miyano
Model
ABX64 YY2
Year
2014
Location
Italy
Category
Lathes - CNC lathes
Product id
P260226303
Buy this machine
Language
Language
CNC струг Miyano ABX64 YY2
CNC soustruh Miyano ABX64 YY2
Miyano ABX64 YY2 CNC-drejebænk
Miyano ABX64 YY2 CNC-Drehmaschine
Τόρνος CNC Miyano ABX64 YY2
Miyano ABX64 YY2 CNC lathe
Torno CNC Miyano ABX64 YY2
Tour CNC Miyano ABX64 YY2
CNC tokarski stroj Miyano ABX64 YY2
Miyano ABX64 YY2 CNC esztergagép
Tornio CNC Miyano ABX64 YY2
Miyano ABX64 YY2 CNC tekinimo staklės
Miyano ABX64 YY2 CNC-draaibank
Tokarka CNC Miyano ABX64 YY2
Torno CNC Miyano ABX64 YY2
Strung CNC Miyano ABX64 YY2
Miyano ABX64 YY2 Токарный станок с ЧПУ
CNC strug Miyano ABX64 YY2
Miyano ABX64 YY2 CNC-svarv
CNC torna Miyano ABX64 YY2
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
125 mm
Turning Ø
165 mm
Ø above the bed
165 mm
Type of CNC
Spindle taper
Spindle bore
65.5 mm
Number of turrets
2
Number of tools on turret
12
Number of rotating tools
12
Turning speed
6000 rpm
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
3290.0
× 2204.0
× 2222.0
Weight
10600 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Last availability date
23/04/2026
Show more
Automatic description (AI-Generated)
The Miyano ABX64 YY2 is a CNC horizontal turning machine manufactured in 2014, designed for precision machining with robust capabilities. It features a maximum turning length of 125 mm and a maximum turning diameter of 165 mm above the bed, making it suitable for small to medium-sized workpieces. The machine is equipped with two turrets, each with 12 tool positions, allowing for versatile tooling setups and efficient machining processes. Both turrets support up to 12 rotating tools, increasing the machine's flexibility for complex operations.
This model is powered by a 48 kW spindle motor and offers a maximum spindle speed of 6000 rpm, suitable for high-speed turning tasks. The spindle bore measures 65.5 mm, accommodating a range of workpiece sizes. The machine’s rapid traverse rates are up to 30 m/min on the Z-axis, contributing to efficient cycle times.
Additional machining capacities include drilling up to 20 mm diameter, tapping up to M14 × 2, and end milling up to 16 mm diameter. The machine operates on AC 200/220 V with a power consumption of 48 kVA and requires a 5 bar air supply.
Dimensionally, the Miyano ABX64 YY2 measures 3290 mm in length, 2204 mm in width, and 2222 mm in height, with a substantial weight of 10,600 kg, indicative of its solid construction.

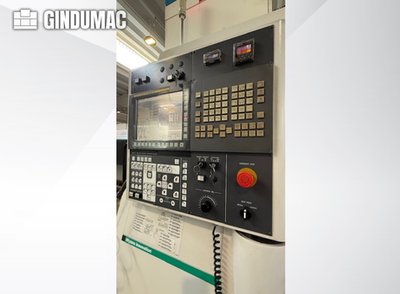

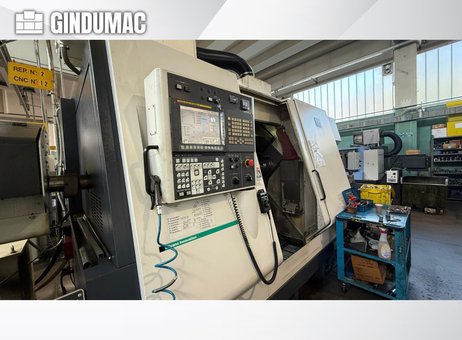

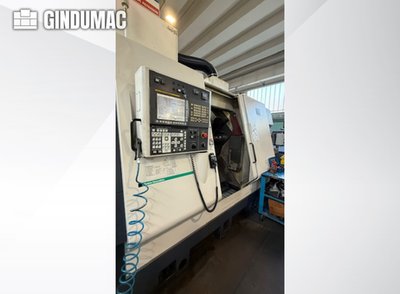

The machine is housed within an enclosure with a door that can be opened for access to the machining area. It includes a control panel featuring a screen and multiple buttons and switches for operation, along with an attached handheld control device for convenience. A blue coiled air hose is attached to the machine, which may be used for cleaning or other pneumatic functions. The machine shows signs of use but appears well maintained, with some wear noted on the enclosure door.
Overall, the Miyano ABX64 YY2 is a versatile and powerful CNC lathe suitable for precision turning applications requiring multiple tools and high spindle speeds. For further details or inquiries, please contact us.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
This 8-axis Miyano ABX64 YY2 was manufactured in 2014. It features a maximum work length of 125 mm and a maximum work diameter of Ø 165 mm. The machine is equipped with two turrets, each having 12 positions, and rapid traverse rates of up to 30 m/min. If you are looking to get high-quality turning capabilities, consider the Miyano ABX64 YY2 horizontal turning machine we have for sale. Contact us for further details.Number of spindles: 2
Spindle speed: SP1: 40 – 4000 rpm, SP2: 50 – 5000 rpm
Inner diameter of draw tube: SP1: Ø 65.5 mm, SP2: Ø 52 mm
Chuck system: Hydraulic cylinder (SP1 / SP2)
Collet chuck type: SP1: S collet system H-S26 / DIN185E, SP2: S collet system H-S22 / DIN177E
Power chuck: SP1: 6" hydraulic chuck, SP2: 6" hydraulic chuck
Number of turrets: 2
Turret stations: 12 positions each
Tool shank size: □ 20 mm
Internal tool hole size: Ø 25 mm / Ø 40 mm
Index time: 0.25 sec / position
Turret HD1: X1: 16 m/min, Z1: 30 m/min, Y1: 12 m/min
Turret HD2: X2: 20 m/min, Z2: 30 m/min, Y1: 12 m/min
Sub-spindle axis: Zs: 30 m/min
Number of rotary tools (HD1, HD2, HD3): 12 (max. 24)
Maximum spindle speed: 6000 rpm
Machining capacity: Drilling: max. Ø 20 mm, Tapping: max. M14 × 2, End milling: max. Ø 16 mm
Hydraulic tank capacity: 10 l
Lubricating tank capacity: 4 l
Coolant tank capacity: 400 l
Voltage: AC 200/220 V ± 10%
Frequency: 50/60 Hz ± 1 Hz
Power consumption: 48 kVA
Air supply: 5 bar (5 kgf/cm²)
Machine Height: 2222 mm
Machine Length: 3290 mm
Machine Weight: 10600 kg
Machine Width: 2204 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
