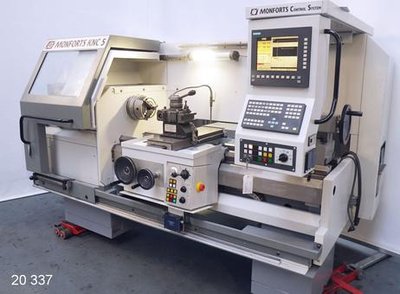

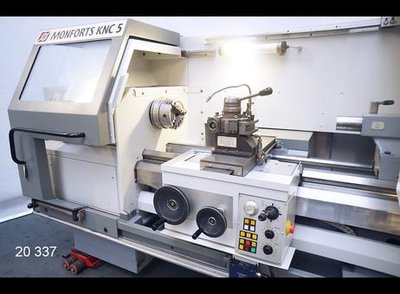

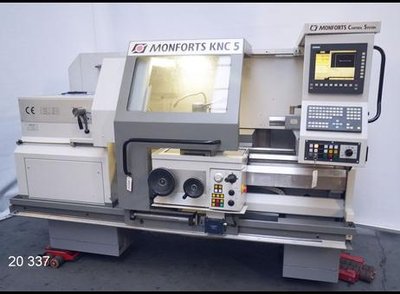

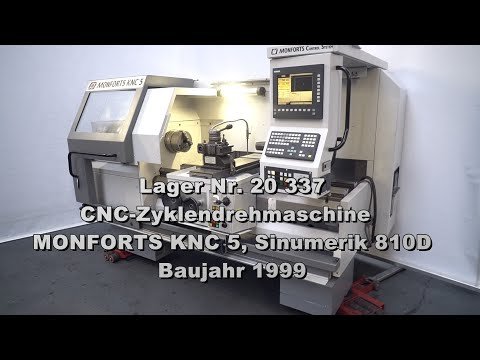

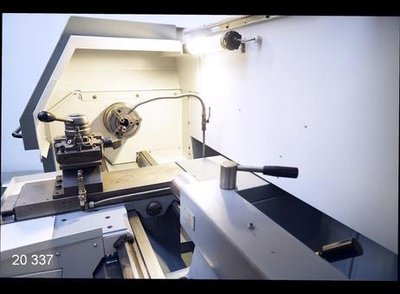

MONFORTS KNC 5 - 1000 / SIEMENS cnc lathe
49.00 €
Do negocjacji
| Strona główna | neuwertig |
|---|---|
| Producent | Siemens |
| Rok produkcji | 1999 |
| Manufacturer | MONFORTS |
| Model | KNC 5 - 1000 / SIEMENS |
| Year | 1999 |
| Location | Germany |
| Category | Lathes - CNC lathes |
| Turning length | mm |
| Turning Ø | 150 mm |
| Ø above the bed | mm |
| Ø above transversing slide | mm |
| Length between centers | mm |
| Type of CNC | siemens 840 d |
| Spindle taper | RD2 |
| Spindle bore | 65 mm |
| Turning speed | 5000 rpm |
| Spindle motor power | 25 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 2850.0 × 1600.0 × 1600.0 |
| Weight | 3000 kg |
| state | excellent |
| At local norms | yes |
| status | under power |
| Last availability date | 24/09/2026 |
| Product id | P251005002 |
| Client type | Machinery dealer |
| Active since | 2018 |
| Offers online | 32 |
| Last activity | Oct. 4, 2026 |
| Z-axis | 445 mm |
| Number of turrets | 1 |
| Number of rotating tools | 12 |
| X-axis | 170 mm |
| Number of tools on turret | 12 |
| Max workpiece weight | kg |
Opis
- Control: SIEMENS Sinumerik 810 D
- Main spindle newly mounted, ball screw
Z-axis renewed. - Chip conveyor
- Quick-change steel holder combination
MULTIFIX / CAPTO
- Coolant device
- Machine light
Technical details / Accessories / Additional information:
Control: CNC
Delivery time: Immediately
Description:
Centre height 255 mm
Centre distance 1080 mm
Turning diameter over bed 500 mm
Turning diameter over support 290 mm
Turning length 1000 mm
Spindle mount KK 8 DIN 55027
Sinumerik 810 D SIEMENS control
Bed width 360 mm
Spindle bore 70 mm
Speed range 2 - 2800 rpm
Rapid traverse - longitudinal/horizontal 10 / 5 m/min
Quick-change holder MULTIFIX type B / CAPTO
Drive power - spindle motor 11.0 kW
Mounting cone in tailstock quill MK 5
Quill diameter 80 mm
Quill stroke 160 mm
Coolant device
Operating voltage 400 V
Total power requirement 16.0 kVA
Machine weight approx. 3.0 t
Space requirement approx. 2.85 x 1.60 x 1.80 m
Chip conveyor 4.00 x 0.40 x 1.50 m
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
- Main spindle newly mounted, ball screw
Z-axis renewed. - Chip conveyor
- Quick-change steel holder combination
MULTIFIX / CAPTO
- Coolant device
- Machine light
Technical details / Accessories / Additional information:
Control: CNC
Delivery time: Immediately
Description:
Centre height 255 mm
Centre distance 1080 mm
Turning diameter over bed 500 mm
Turning diameter over support 290 mm
Turning length 1000 mm
Spindle mount KK 8 DIN 55027
Sinumerik 810 D SIEMENS control
Bed width 360 mm
Spindle bore 70 mm
Speed range 2 - 2800 rpm
Rapid traverse - longitudinal/horizontal 10 / 5 m/min
Quick-change holder MULTIFIX type B / CAPTO
Drive power - spindle motor 11.0 kW
Mounting cone in tailstock quill MK 5
Quill diameter 80 mm
Quill stroke 160 mm
Coolant device
Operating voltage 400 V
Total power requirement 16.0 kVA
Machine weight approx. 3.0 t
Space requirement approx. 2.85 x 1.60 x 1.80 m
Chip conveyor 4.00 x 0.40 x 1.50 m
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
