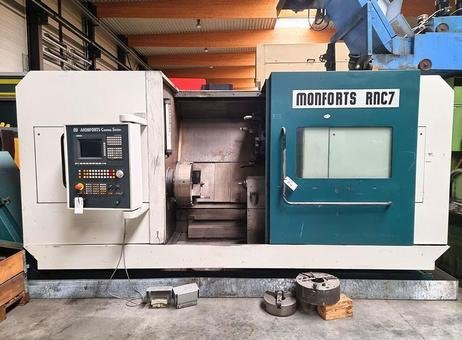

Monforts RNC 7 cnc lathe

Monforts RNC 7 cnc lathe
Top seller
Price on request
Make an offer
Manufacturer
Monforts
Model
RNC 7
Year
Location
Belgium
Category
Lathes - CNC lathes
Product id
P241120317
Buy this machine
Language
Language
cnc струг Monforts RNC 7
Soustruh cnc Monforts RNC 7
Monforts RNC 7 cnc drejebænk
Monforts RNC 7 Drehmaschine CNC
cnc τόρνος Monforts RNC 7
Monforts RNC 7 cnc lathe
Torno cnc Monforts RNC 7
Tour cnc Monforts RNC 7
cnc tokarski stroj Monforts RNC 7
Monforts RNC 7 cnc eszterga
Tornio cnc Monforts RNC 7
cnc tekinimo staklės Monforts RNC 7
Monforts RNC 7 cnc-draaibank
Tokarka CNC Monforts RNC 7
Torno CNC Monforts RNC 7
strung cnc Monforts RNC 7
Monforts RNC 7 Токарный станок с ЧПУ
cnc strug Monforts RNC 7
Monforts RNC 7 cnc svarv
Cnc torna Monforts RNC 7
Get price & details
+32 93 8…
Show phone
Details
About this seller
Specifications
Ø above the bed
720 mm
Length between centers
1500 mm
Type of CNC
Siemens Sinumerik 840C
X-axis
320 mm
Z-axis
1500 mm
Spindle taper
A2-11
Spindle bore
110 mm
Number of tools on turret
12
Turning speed
4000 rpm
Spindle motor power
62 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
5600.0
× 2850.0
× 2300.0
Weight
8500 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Last availability date
18/04/2026
Show more
Automatic description (AI-Generated)
This listing is for a Monforts RNC 7 CNC lathe, a robust machine designed for precision turning tasks. It features a swing over the bed of 720 mm and a distance between centers of 1500 mm, allowing for the machining of sizable workpieces. The lathe offers a maximum longitudinal travel (Z-axis) of 1500 mm and a maximum cross travel (X-axis) of 320 mm, providing ample range for various turning operations.
The spindle is equipped with a bore diameter of 110 mm and is powered by a 62 kW motor, capable of reaching speeds up to 4000 rpm. The spindle cone is A2-11. The machine is controlled by a Siemens Sinumerik 840C system, ensuring precise and reliable CNC operation.
The lathe includes a 12-position tool turret compatible with VDI tools, facilitating efficient tool changes for complex machining processes. It is also equipped with a Shunk chuck of 500 mm diameter, enhancing its capability for secure workpiece holding. A chip conveyor is integrated on the left side of the machine to assist with chip removal during machining.
The machine measures 5600 mm in length (including the scrap conveyor), 2850 mm in width, and 2300 mm in height, with an approximate weight of 8500 kg. The exterior and interior show signs of industrial use, including dirt, wear marks, and some surface rust inside the working area. Various lathe tool holders and accessories are included, showing typical use-related discoloration. Additional accessories visible include two chucks placed near the machine and a wooden crate containing multiple metal clamping and holding fixtures, some of which appear to be lathe chuck jaws.
The control panel is mounted on the front left side of the machine and features the Monforts Control System branding along with emergency stop functionality. The panel screen is currently off.
This lathe is suitable for finishing hard turning and comes with a range of accessories to support diverse machining needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Swing over bed 720 mm
Distance centre tot centre 1500 mm
Max longitudinal travel Z-axis 1500 mm
Max cross travel X-axis 320 mm
Spindle cone A2-11
Dia of spindle bore 110 mm
Power on the spindle 62 kW
Number of speeds 4000 rpm

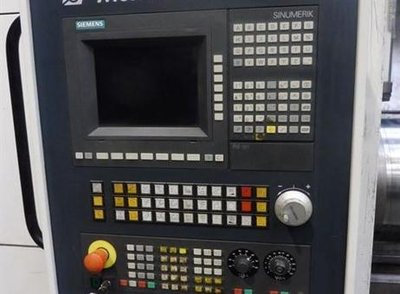

Command Siemens Sinumerik 840C
Length 5600 mm with scrap conveyor
Width 2850 mm
Height 2300 mm
Weight +-8500 kg
ACCESORIE Syes
Toolchanger yes
Number of tools 12x
Additional info
Equipped with Shunk chuck dia 500 mm

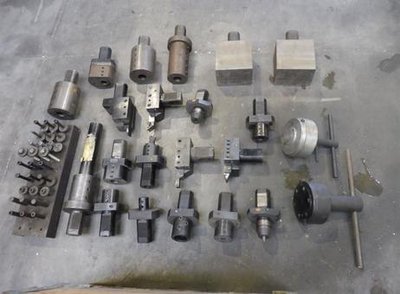

VDI tools
For finsih hard turning!
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
