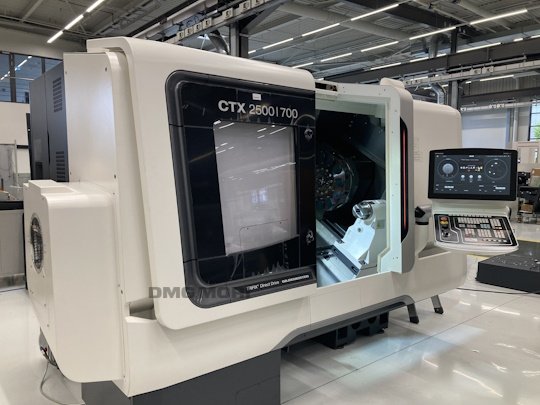

Multi Spindle Drilling Machines DMG MORI CTX 2500|700
36000.00 €
Verhandlungsbasis
| Zustand | gebraucht |
|---|---|
| Hersteller | DMG |
| Baujahr | 2019 |
| Swing diameter over guide ways | 620 mm |
| Transverse stroke | 260 mm |
| Longitudinal stroke | 795 mm |
| Clamping chuck diameter max. | 315 mm |
| Spindle bore | 91 mm |
| Spindle diametre on front bearing | 140 mm |
| Drive power (100% DC) | 22 kW |
| Speed range | - 4000 rpm |
| Torque (100% DC) | 410 Nm |
| Max. torque (40% DC) | 525 Nm |
| Accuracy at point stopping | 0,001 degree |

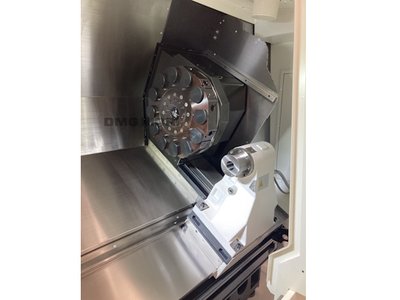

| Number of tool stations | 12 |
| Shank diametre according to DIN 69880 | 40 mm |
| Number of driven tools | 12 |
| Speed max. | -6000 rpm |
| Power max. (100% DC) | 10 kW |
| Dimensions (L x W x H) | 3,99 x 2,03 x 2,2 m |
| Weight approx. | 6500 Kg |
| Technologie cycle alternating speed | Technology cycle for the application of an alternating speed for vibration sensitive set-ups (Only in conjunction with Siemens control) |
| Chuck rinsing device, outside | chuck rinsing device, outside (main spindle) |
| Extension of the discharge chute about 300 mm | Extension of the discharge chute at the chip conveyor about 300 mm |
| Hinged type chip conveyor | Hinged typ chip conveyor incl. coolant tank and coolant pump, 6 bar (87 psi)/20 litre/min |
| Automatic actuation of sliding cover, electrical | Automatic actuation of sliding cover, electrical. (Remark: option B-L7250, automatic loading hatch is not possible) |
| Fixing elements | Four fixing elements for dowelling the machine |
| NETSERVICE (CELOS) | Netservice Qualified support by Internet-based remote diagnostics |
| Service Agent | Service Agent Overview of all maintenance work on the machine |
| 2020 | DMG MORI |
| 2017 | DMG MORI |
| 2018 | DMG MORI |
| 2009 | DMG MORI |
| 2015 | DMG MORI |
| 2014 | DMG MORI |
| 2016 | DMG MORI |
Beschreibung
Diese Feld muss ausgefüllt werden
Diese Feld muss ausgefüllt werden
metal working machines / boring mills and machining centers / Multi Spindle Drilling Machines
Manufacturer:DMG MORI
Type of machine:Multi Spindle Drilling Machines
Seller-item-No.:071670
Please remit optionally
DMG MORI Used Machines GmbH
Ms Kerstin Bauer82538 GeretsriedGermany
RESALE member since 2019
---
[SRC:resale:166605827]
Diese Feld muss ausgefüllt werden
metal working machines / boring mills and machining centers / Multi Spindle Drilling Machines
Manufacturer:DMG MORI
Type of machine:Multi Spindle Drilling Machines
Seller-item-No.:071670
Please remit optionally
DMG MORI Used Machines GmbH
Ms Kerstin Bauer82538 GeretsriedGermany
RESALE member since 2019
---
[SRC:resale:166605827]
