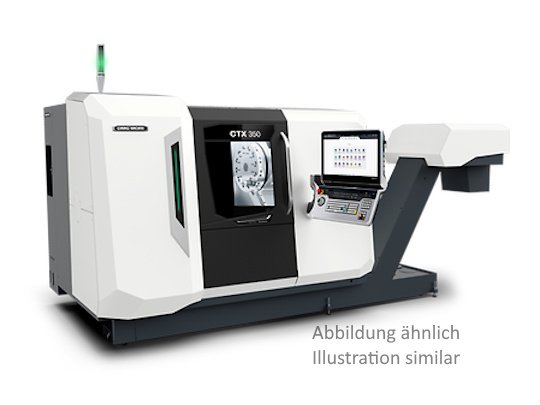

Multi Spindle Drilling Machines DMG MORI CTX 350
235000.00 €
Verhandlungsbasis
| Zustand | gebraucht |
|---|---|
| Hersteller | DMG |
| Baujahr | 2019 |
| Swing diameter over bed | 650 mm |
| Swing diameter over X linear guideways | 370 mm |
| Max machining diameter | 320 mm |
| Clamping chuck Ø | 250 mm |
| X travel | 250 mm |
| Y travel | +/-50 mm |
| Z travel | 550 mm |
| Distance between spindle noses | 800 mm |
| Type of main drive | AC |
| Drive power (100% DC) | 12,6 kW |
| Drive power (40% DC) | 14 kW |
| Speed range | -5500 rpm |
| Torque (100% DC) | 171 Nm |
| Max. torque (40% DC) | 192 Nm |
| C-Axis Speed | 100 rpm |
| Torque of C-Axis (holding torque) | 168 Nm |
| Spindle nose | A2-6 |
| Spindle diametre on front bearing | 120 mm |
| Spindle bore | 73 mm |
| Bar diameter max. | 65 mm |
| Number of tool stations | 12 |
| Number of driven tools | 12 |
| Speed max. | 6000 rpm |
| Power max. (40% DC) | 4,6 kW |
| 3-jaw chuck, BBD 210-66, make SMW | 3-jaw power clamping chuck with through-hole, type BBD 210/66, make SMW-Autoblok, incl. connecting elements |
| Food switch for tailstock operation | Foot switch for tailstock operation |
| Lifting kit | Lifting kit Required option for customers using a crane to unload and move the machine. |
| Service Agent | Service Agent Overview of all maintenance work on the machine |
| 2020 | DMG MORI |
| 2015 | DMG MORI |
| 2014 | DMG MORI |
| 2009 | DMG MORI |
| 2017 | DMG MORI |
Beschreibung
Diese Feld muss ausgefüllt werden
Diese Feld muss ausgefüllt werden
metal working machines / boring mills and machining centers / Multi Spindle Drilling Machines
Manufacturer:DMG MORI
Type of machine:Multi Spindle Drilling Machines
Seller-item-No.:071712
Please remit optionally
DMG MORI Used Machines GmbH
Ms Kerstin Bauer82538 GeretsriedGermany
RESALE member since 2019
---
[SRC:resale:166896776]
Diese Feld muss ausgefüllt werden
metal working machines / boring mills and machining centers / Multi Spindle Drilling Machines
Manufacturer:DMG MORI
Type of machine:Multi Spindle Drilling Machines
Seller-item-No.:071712
Please remit optionally
DMG MORI Used Machines GmbH
Ms Kerstin Bauer82538 GeretsriedGermany
RESALE member since 2019
---
[SRC:resale:166896776]
