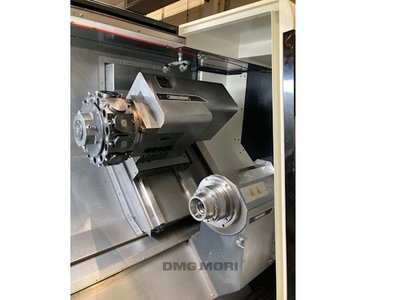

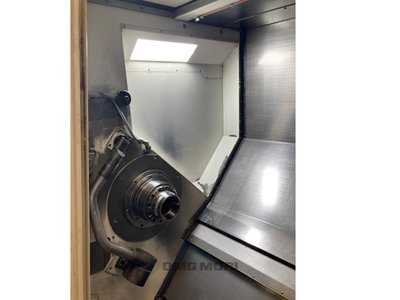

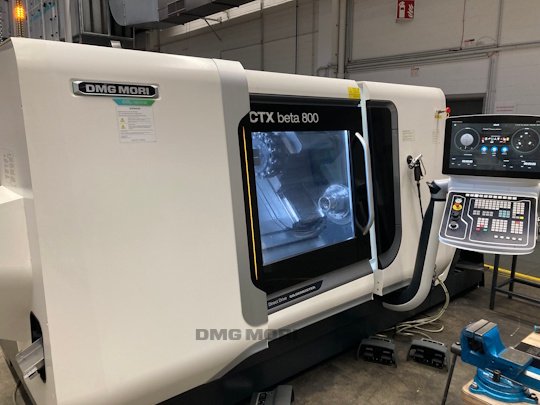

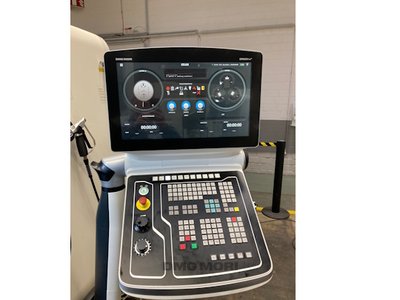

Wielowrzecionowe maszyny wiertnicze DMG MORI CTX beta 800
34900.00 €
Do negocjacji
| Strona główna | gebraucht |
|---|---|
| Producent | DMG |
| Rok produkcji | 2019 |
| Swing diameter over guide ways | 700 mm |
| Turning diameter | 410 mm |
| Transverse stroke | 300 mm |
| Longitudinal stroke | 850 mm |
| Max. Turning Length | 800 mm |
| Clamping chuck diameter max. | 315 mm |
| Bar diameter max. | 65 mm |
| Spindle nose | Flat flange |
| Diametre of spindle nose | 170h5 mm |
| Spindle bore | 87 mm |
| Spindle diametre on front bearing | 130 mm |
| Drive power (100% DC) | 25 kW |
| Speed range | 25 - 5000 rpm |
| Torque (100% DC) | 280 Nm |
| Accuracy at point stopping | 0,01 degree |
| Number of tool stations | 12 |
| Shank diametre according to DIN 69880 | 40 mm |
| Number of driven tools | 12 |
| Speed max. | -4000 rpm |
| Power max. (40% DC) | 11,3 kW |
| Dimensions (L x W x H) | 3,99 x 2,69 x 1,99 m |
| Weight approx. | 6500 Kg |
| in-/outputs | Inputs / outputs programmable via M-functions, consisting of: 8 inputs 4 outputs, 2 amperes 4 outputs, potential-free |
| offsets | Extended number of tool data and tool offsets to 3000 tool offsets at max. 1500 available tool data (max. 8 cutting edges) |
| Technologie cycle alternating speed | Technology cycle for the application of an alternating speed for vibration sensitive set-ups (Only in conjunction with Siemens control) |
| Tool monitoring system Artis | tool break monitoring system make Artis, Type CTM. |
| Chuck rinsing device, outside | chuck rinsing device, outside (main spindle) |
| spindle | Chuck rinsing device for counter spindle, outside |
| valves MS | Clamping with balanced pressure for the main spindle with motor-adjustable valves The clamping pressure can be specified by the NC program |
| valves CS | Clamping with balanced pressure for the counter spindle with motor-adjustable valves The clamping pressure can be specified by the NC program |
| 300 mm | Extension of the discharge chute at the chip conveyor about 300 mm |
| Hinged type chip conveyor | Hinged typ chip conveyor incl. coolant tank and coolant pump, 6 bar (87 psi)/20 litre/min |
| area | Tool gauging device in the working area, manually swivellable |
| window | Window cleaning of the security window of the working area door by compressed air (Remark: The employment of coolant can limited the view on the workpiece at machining) |
| Design version BLACK | Design version BLACK Working area door, front cover beneath Working area door and front pane frame in colour deep black |
| temperature | Package for increased ambient temperature consisting of cooling system for control cabinet (until 40º) |
| 2013 | DMG MORI |
| 2014 | DMG MORI |
| 2015 | DMG MORI |
| 2012 | DMG MORI |
| 2009 | DMG MORI |
Opis
metal working machines / boring mills and machining centers / Multi Spindle Drilling Machines
Manufacturer:DMG MORI
Type of machine:Multi Spindle Drilling Machines
Seller-item-No.:071675
Please remit optionally
DMG MORI Used Machines GmbH
Ms Kerstin Bauer82538 GeretsriedGermany
Manufacturer:DMG MORI
Type of machine:Multi Spindle Drilling Machines
Seller-item-No.:071675
Please remit optionally
DMG MORI Used Machines GmbH
Ms Kerstin Bauer82538 GeretsriedGermany
