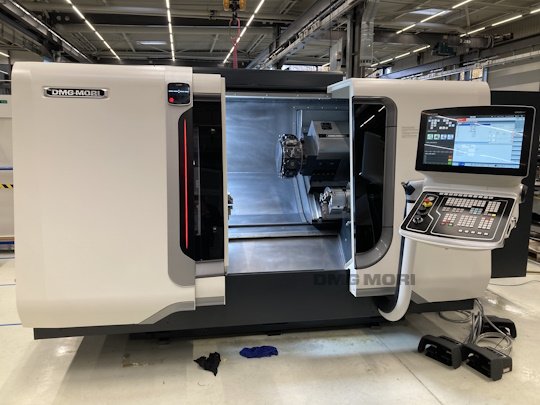

Multi Spindle Drilling Machines DMG MORI CTX beta 800
105000.00 €
Verhandlungsbasis
| Zustand | gebraucht |
|---|---|
| Hersteller | DMG |
| Baujahr | 2019 |
| Swing diameter over guide ways | 700 mm |
| Turning diameter | 410 mm |
| Transverse stroke | 300 mm |
| Longitudinal stroke | 850 mm |
| Max. Turning Length | 800 mm |
| Clamping chuck diameter max. | 315 mm |
| Bar diameter max. | 65 mm |
| Spindle nose | Flat flange |
| Spindle bore | 87 mm |
| Diametre of spindle nose | 170h5 mm |
| Spindle diametre on front bearing | 130 mm |

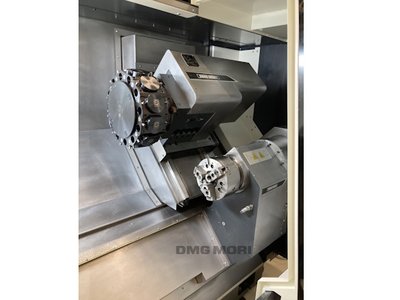

| Number of tool stations | 12 |
| Shank diametre according to DIN 69880 | 40 mm |
| Number of driven tools | 12 |
| Speed max. | -6000 rpm |
| Power max. (40% DC) | 10 kW |
| Drive power (100% DC) | 25 kW |
| Torque (100% DC) | 280 Nm |
| Speed range | 25 - 5000 rpm |
| Accuracy at point stopping | 0,01 degree |
| Dimensions (L x W x H) | 3,99 x 2,69 x 1,99 m |
| Weight approx. | 6500 Kg |
| Technologie cycle alternating speed | Technology cycle for the application of an alternating speed for vibration sensitive set-ups (Only in conjunction with Siemens control) |
| Chuck rinsing device, outside | chuck rinsing device, outside (main spindle) |
| Chuck rinsing device, outside, counter spindle | Chuck rinsing device for counter spindle, outside |
| Clamping with balan. pressure motor-adj. valves MS | Clamping with balanced pressure for the main spindle with motor-adjustable valves The clamping pressure can be specified by the NC program |
| Clamping pressure adjustment, motor-adj. valves CS | Clamping pressure adjustment with motor-adjustable valves The clamping pressure can be specified by NC program |
| Reinforced coolant pump, 12bar,23l/min | Reinforced coolant pump 12 bar, 23 l/min (174.04 psi, 6.07 gal) instaed of 6 bar, 20 l/min (87.02 psi, 5.28 gal) |
| Double cartridge filter on chip conveyor | Double cartrige filter on chip conveyor |
| Hinged type chip conveyor | Hinged typ chip conveyor incl. coolant tank and coolant pump, 6 bar (87 psi)/20 litre/min |
| Automatic actuation of sliding cover, electrical | Automatic actuation of sliding cover, electrical. (Remark: option B-L7250, automatic loading hatch is not possible) |
| Tool gauging device in the working area | Tool gauging device in the working area, manually swivellable |

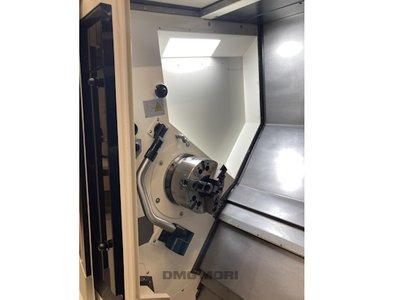

| 3-jaw chuck, BHD 250-66, make SMW | 3-jaw power clamping chuck with through-hole, type BHD 250/66, make SMW, incl. connecting elements |
| 3-jaw chuck, BHD 210-52, make SMW | 3-jaw power clamping chuck with through-hole, type BHD 210/52, make SMW, incl. connecting elements |
| proTIME | proTIME Visualisation of the remaining runtime, remaining workpieces and the machine state |
| Ligh switch cabinet | Ligh switch cabinet (fluoresent lamp starterless) with integrated socket, 230 V, 2 A load, make Rittal on lott via Transformer chead main switch |
| Design version BLACK | Design version BLACK Working area door, front cover beneath Working area door and front pane frame in colour deep black |
| Package for increased ambient temperature | Package for increased ambient temperature consisting of cooling system for control cabinet (until 40º) |
| Service Agent | Service Agent Overview of all maintenance work on the machine |
