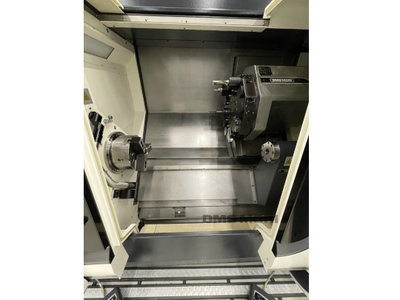

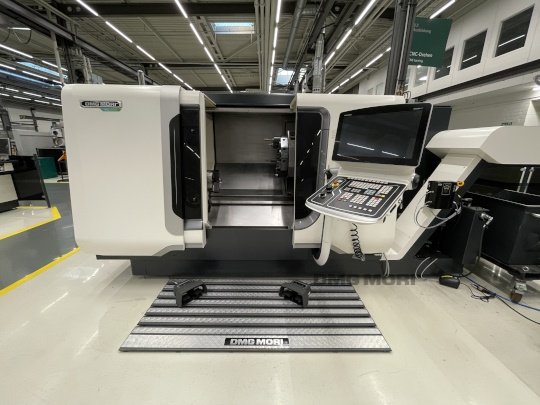

Multi Spindle Drilling Machines DMG MORI CTX beta 800
34900.00 €
Verhandlungsbasis
| Zustand | gebraucht |
|---|---|
| Hersteller | DMG |
| Baujahr | 2019 |
| Swing diameter over guide ways | 700 mm |
| Turning diameter | 410 mm |
| Transverse stroke | 300 mm |
| Longitudinal stroke | 850 mm |
| Max. Turning Length | 800 mm |
| Clamping chuck diameter max. | 315 mm |
| Bar diameter max. | 65 mm |
| Spindle nose | Flat flange |
| Diametre of spindle nose | 220h5 mm |
| Spindle diametre on front bearing | 160 mm |
| Spindle bore | 102 mm |
| Drive power (100% DC) | 33 kW |
| Speed range | 20 - 4000 rpm |
| Torque (100% DC) | 580 Nm |
| C-Axis Speed | -200 rpm |
| Torque of C-Axis (holding torque) | 580 Nm |
| Accuracy at point stopping | 0,01 degree |
| Number of tool stations | 12 |
| Shank diametre according to DIN 69880 | 40 mm |
| Number of driven tools | 12 |
| Speed max. | -6000 rpm |
| Power max. (40% DC) | 10 kW |
| Dimensions (L x W x H) | 3,99 x 2,69 x 1,99 m |
| Weight approx. | 6500 Kg |
| Technologie cycle alternating speed | Technology cycle for the application of an alternating speed for vibration sensitive set-ups (Only in conjunction with Siemens control) |

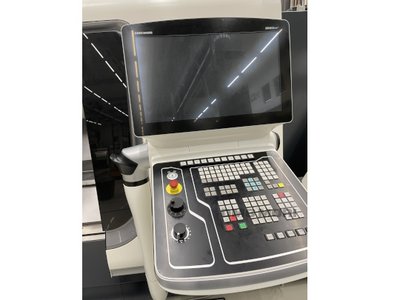

| Energy meter for Siemens 840 sl OP CELOS | Energy meter for 3D control Siemens 840D solutionline Operate with CELOS |
| Chuck rinsing device, outside | chuck rinsing device, outside (main spindle) |
| Clamping with balanced pressure, main sp. | Balanced pressure clamping device for the main spindle |
| Y-axis for machine with tailstock | Y axis for compound slide, stroke ± 60 mm (2.36 in) |
| Reinforced coolant pump, 5 - 20 bar | Reinforced coolant pump, 5 - 20 bar, adjustable with frequency variation in addition to the standard pump |
| Double cartridge filter on chip conveyor | Double cartrige filter on chip conveyor |
| Hinged type chip conveyor | Hinged typ chip conveyor incl. coolant tank and coolant pump, 6 bar (87 psi)/20 litre/min |
| Automatic actuation of sliding cover, electrical | Automatic actuation of sliding cover, electrical. (Remark: option B-L7250, automatic loading hatch is not possible) |
| Tool gauging device in the working area | Tool gauging device in the working area, manually swivellable |
| Window rinsing of the security window | Window cleaning of the security window of the working area door by compressed air (Remark: The employment of coolant can limited the view on the workpiece at machining) |
| Design version BLACK | Design version BLACK Working area door, front cover beneath Working area door and front pane frame in colour deep black |
| Package for increased ambient temperature | Package for increased ambient temperature consisting of cooling system for control cabinet (until 40º) |
| Service Agent | Service Agent Overview of all maintenance work on the machine |
| Module 20 kg | Module 20 kg - Max. load of the robot 20 kg (44.09 lbs) - Triangular gripper base with outlet lance |
| Pressure piece | Elastic pressure piece for compensation angle errors at sawing sections |
| Pressure adjustment | Pressure adjustment - Manual adjustment of gripping pressure for each gripper(A and B) individually in the range of 2.5 - 6 bar - Mounted on robot arm |
| Robot in white exterior paint | Robot in special paint calcite white (RAL 9010) |
| Attention: Preparation for automation is necessary | Attention: Preparation for automation is necessary For the connection of the Robo2Go the machine needs to be prepared with the electrical interface. |
| 2018 | DMG MORI |
| 2013 | DMG MORI |
| 2015 | DMG MORI |
| 2014 | DMG MORI |
| 2009 | DMG MORI |
Beschreibung
Diese Feld muss ausgefüllt werden
Diese Feld muss ausgefüllt werden
metal working machines / boring mills and machining centers / Multi Spindle Drilling Machines
Manufacturer:DMG MORI
Type of machine:Multi Spindle Drilling Machines
Seller-item-No.:071589
Please remit optionally
DMG MORI Used Machines GmbH
Ms Kerstin Bauer82538 GeretsriedGermany
RESALE member since 2019
---
[SRC:resale:166605812]
