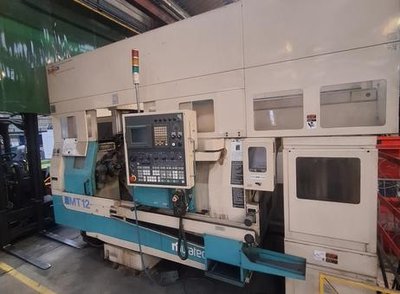

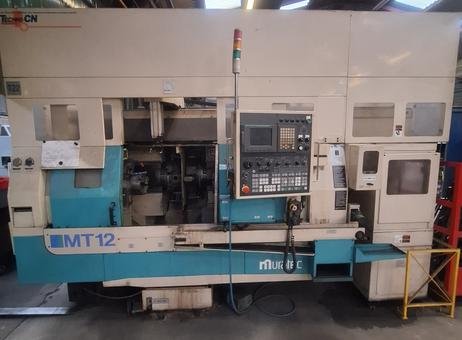

MURATEC MT12 CMG cnc lathe

MURATEC MT12 CMG cnc lathe
Price on request
View price
You can purchase this machine from us directly, which gives you:
Secured payment
for the purchase
Dedicated compliance check
of the seller
Logistics and customs support
if applicable
After-sale follow up
if needed
Contact us to receive an offer.
Manufacturer
MURATEC
Model
MT12 CMG
Year
2005
Location
France
Category
Lathes - CNC lathes
Product id
P241213036
Buy this machine
Language
Language
cnc струг MURATEC MT12 CMG
Soustruh cnc MURATEC MT12 CMG
MURATEC MT12 CMG cnc drejebænk
MURATEC MT12 CMG Drehmaschine CNC
cnc τόρνος MURATEC MT12 CMG
MURATEC MT12 CMG cnc lathe
Torno cnc MURATEC MT12 CMG
Tour cnc MURATEC MT12 CMG
cnc tokarski stroj MURATEC MT12 CMG
MURATEC MT12 CMG cnc eszterga
Tornio cnc MURATEC MT12 CMG
cnc tekinimo staklės MURATEC MT12 CMG
MURATEC MT12 CMG cnc-draaibank
Tokarka CNC MURATEC MT12 CMG
Torno CNC MURATEC MT12 CMG
strung cnc MURATEC MT12 CMG
MURATEC MT12 CMG Токарный станок с ЧПУ
cnc strug MURATEC MT12 CMG
MURATEC MT12 CMG cnc svarv
Cnc torna MURATEC MT12 CMG
Get price & details
Details
About this seller
Specifications
Turning length
150 mm
Turning Ø
210 mm
Ø above the bed
210 mm
Type of CNC
Muratec MT12 Cmg
X-axis
200 mm
Z-axis
650 mm
Max workpiece weight
40 kg
Spindle taper
A25
Spindle bore
45 mm
Number of turrets
2
Number of tools on turret
15
Number of rotating tools
15
Turning speed
4500 rpm
Spindle motor power
22 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
3630.0
× 1850.0
× 2680.0
Weight
5000 kg
worked hours
hours under power
state
good
At local norms
---------
status
visible
Last availability date
19/02/2026
Show more
Automatic description (AI-Generated)
The MURATEC MT12 CMG is a bi-spindle CNC lathe manufactured in 2005, designed for precision turning operations. It features two spindles with a maximum turning diameter of 210 mm and a turning length of 150 mm, suitable for machining workpieces up to 40 kg in weight. The machine is equipped with a spindle bore of 45 mm and offers a spindle speed of up to 4500 rpm, driven by a 22 kW spindle motor power. The X-axis travel is 200 mm, and the Z-axis travel is 650 mm, providing versatility in machining complex parts. Each turret accommodates 15 tools, all of which are rotating tools, allowing for efficient multi-tool operations. The lathe includes a FANUC 16 TC numerical control system, supporting six axes with robot integration for automated loading and unloading. The machine dimensions are approximately 3630 mm in length, 1850 mm in width, and 2680 mm in height, with a total weight of 5000 kg. The lathe is equipped with a control panel featuring a screen, buttons, and knobs for operational control. A safety light tower with red, yellow, and green indicator lights is mounted on top for operational status signaling. The machine is installed indoors in a factory environment and shows some signs of dirt and wear consistent with industrial use. This robust CNC lathe is suitable for high-precision, automated turning tasks in a production setting.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
MURATEC MT12 CMG
YEAR 2005
BI-SPINDLE LATHE
6 axes with Robot
Muratec MT 12 GMC
with NC FANUC 16 TC
. Chuck diameter mm 165/215
. Max. turning diameter mm 210
. Bar passage diameter mm 45 (option 51)
. Standard bar turning length mm 150
. Spindles Nb 2
. C-axes (360,000 positions) Qty 2
. Height from spindle center to floor mm 1100
. Spindle speed rpm 4500
. Spindle power kW 2 x 11
. Spindle nose A2-5
. Spindle bearing diameter mm 90
. X axis X1 / X2 mm 200
. Z axis (left side) Z1 mm 200
. Z axis (right side) Z2 mm 650
. Rapid feeds X, Z m/min 24
. Rapid feed right spindle m/min 32
. Stations Nb 15 x 2
. Indexing time sec 0.25
. Locking force kg 3200
. Square mm 20
. Diameter mm 40
. Power kW 2.8
. Speed rpm 4000
. C axis positioning Deg 0.001
. Maximum drilling diameter mm 16
. Tapping M 10
STANDARD PALLETIZER WF 14 L 160 II
Pallets No. 14
Max. stacking height mm 450
Permissible weight per pallet Kgs 40
Permissible diameters (min. - max.) mm  30  160
GANTRY LOADING ROBOT
ADMISSIBLE PARTS
Max. part weight Kgs 3 x 2 parts
Standard part dimensions (Diam. X L) mm 120 x 100
ROBOT STROKES
Rapid feed X axis m/min 100
Rapid feed Y axis m/min 100
Axis α (rotation) Deg 180
Indexing time sec 0.5
DEBATEMENT OF LOADING JAWS
Loading chucks (3 jaws with pusher)
Stroke mm 30
LOADING TIME
Loading / unloading time
including opening / closing
without dry blowing 6
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
