NAKAMURA SUPER NTM3

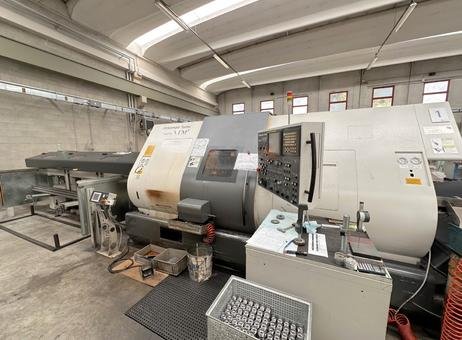

NAKAMURA SUPER NTM3 cnc lathe
Make an offer
NAKAMURA
SUPER NTM3
2007
Italy
Lathes - CNC lathes
P240528235
+39 030 …
Turning Ø
190 mm
Type of CNC
FANUC 16i-TB
X-axis
167.5 mm
Z-axis
250 mm
Spindle taper
ASA 6
Spindle bore
52 mm
Number of turrets
12
Number of rotating tools
12
Turning speed
5000 rpm
Spindle motor power
15 kW
Tailstock
no
Bar feeder
yes
Length x width x height
3930.0 × 2270.0 × 2100.0
Weight
12000 kg
good
yes
visible
23/04/2026

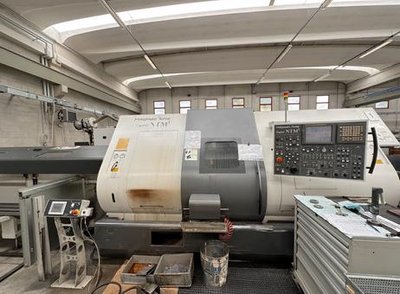

This Nakamura SUPER NTM3 CNC lathe, manufactured in 2007, is a robust and versatile machine designed for precision turning operations. It features a maximum machinable diameter of 190 mm when working from the shot, and a maximum diameter of 70 mm when working from bar stock. The machine offers a maximum machining length of 640 mm using the upper turrets and 205 mm with the lower turrets, providing flexibility for various workpiece sizes. The lathe is equipped with a FANUC 16i-TB CNC control system, ensuring reliable and precise operation. The main spindle has a maximum rotational speed of 5000 rpm, with a spindle bore diameter of 52 mm and a spindle nose conforming to ASA6 standards. The spindle motor delivers a power output of 15 kW, facilitating efficient machining of diverse materials. This model includes three turrets, each with 12 positions and 12 motorized rotating tools, allowing for complex machining tasks and reduced setup times. The X-axis travel is 167.5 mm, and the Z-axis stroke is 250 mm for the first two turrets, while the third turret offers a longer Z-axis stroke of 685 mm. Additionally, the Y-axis travel is 102 mm with an adjustable range of +61 mm to -41 mm, enhancing multi-axis machining capabilities. The machine's total weight is approximately 12,000 kg, and its overall dimensions are 3930 mm in length, 2270 mm in width, and 2100 mm in height, excluding any bar loader attachments. A compatible bar loader, the TOP AUTOMATIONS X-FILES 370SX from 2019, is available separately. This Nakamura lathe is suitable for high-precision and complex turning applications, offering substantial flexibility with multiple turrets and motorized tools. It is ideal for manufacturers seeking a reliable CNC lathe with extensive machining capabilities. Capacity: ø70/190x640 mm
Year of construction: 2007
Working range Max machinable diameter from bar: 70 mm
Max machinable diameter from shot: 190 mm
Max machinable length: upper turrets 640mm, lower turrets 205 mm

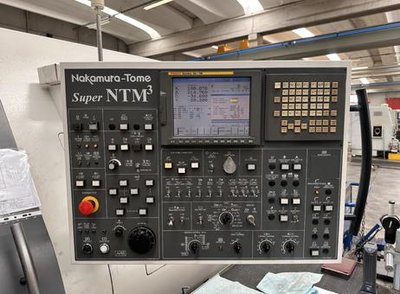

Cnc Cnc: FANUC 16i-TB
Main spindle Max rotational speed: 5000 rpm
Spindle nose: ASA6
Max power: 15 Kw
C-axis resolution: 0.001 °
Counter spindle Max. rotational speed: 5000 rpm
Spindle nose: ASA5
Spindle Bore: 52 mm
Max power: 11 Kw
C-axis resolution: 0.001 °

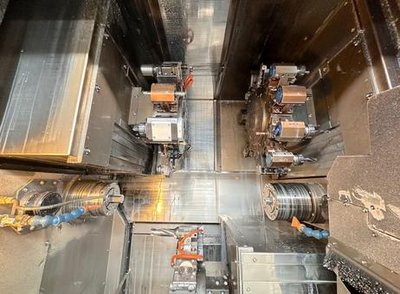

Turret 1 Number of positions: 12
Number of motorized positions: 12
X1 axis travel: 167.5 mm
Z1 axis stroke: 250 mm
Travel y1 axis: 102 (+61/-41) mm
Turret 2 Number of positions: 12
Number of motorized positions: 12
X2 axis stroke: 167.5 mm
Z2 axis stroke: 250 mm
Travel y2 axis: 102 (+61/-41) mm

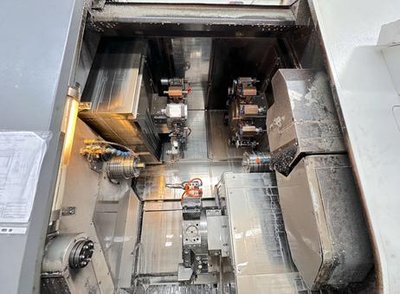

Turret 3 Number of positions: 12
Number of motorized positions: 12
X3 axis stroke: 167.5 mm
Z3 axis stroke: 685 mm
Total machine weight: 12000 kg
Machine overall dimensions: 3930x2270x2100 (excluding loader) mm
Bar loader: TOP AUTOMATIONS X- FILES 370SX year 2019 (sold separately)
