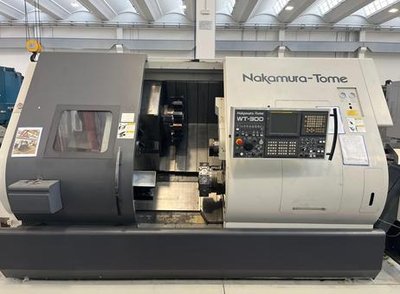

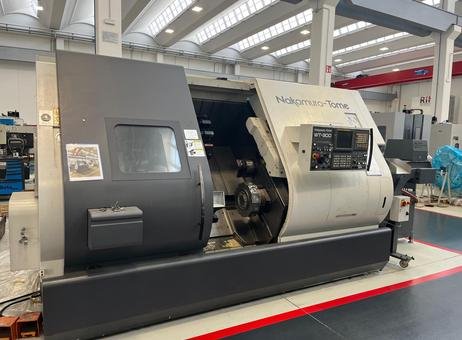

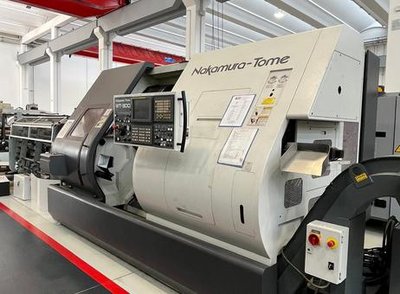

Nakamura Tome WT-300 MMSY CNC lathe
39.00 €
Do negocjacji
| Strona główna | gebraucht |
|---|---|
| Producent | Fanuc |
| Rok produkcji | 2006 |
| Manufacturer | Nakamura Tome |
| Model | WT-300 MMSY |
| Year | 2006 |
| Location | Italy |
| Category | Lathes - CNC lathes |
| Turning length | 620 mm |
| Turning Ø | 190 mm |
| Ø above the bed | 190 mm |
| Ø above transversing slide | 65 mm |
| Length between centers | 600 mm |
| X-axis | 345 mm |
| Z-axis | 1240 mm |
| Max workpiece weight | kg |
| Spindle bore | 65 mm |
| Turning speed | 8000 rpm |
| Spindle motor power | 11 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | - × - × - |
| Weight | kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Nakamura Tome WT-300 MMSY |
| Last availability date | 15/10/2026 |
| Product id | P260928086 |
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 46 |
| Last activity | Oct. 16, 2026 |
| Type of CNC | Fanuc 31i-TA |
| Number of turrets | 3 |
| Number of rotating tools | 12 |
| Spindle taper | ISO A5″ |
| Number of tools on turret | 12 |
Opis
cnc lathes

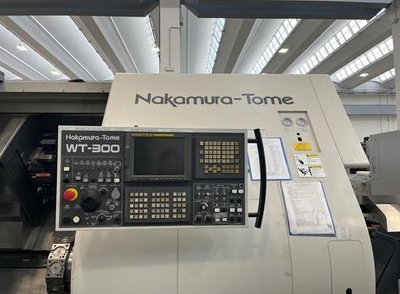

Cnc Control: FANUC 18i-TB
Max Swing Over The Bench: Ø 310 mm
Max Turning Diameter: Ø 270 mm
Max Turning Length: 780 mm
Bar Diameter Capacity Through The Spindles: Ø 65 / Ø 65 mm
X1 X2 Axis Travel: 195 / 195 mm
Y Axis Travel: 120 mm (+/- 60)
Z1 Z2 Axis Travel: 780 / 780 mm
B Axis Travel: 850 mm
A C Axis Minimum Controlled Angle: 0.001°
Spindle Chuck Diameter: Ø 225 mm
Spindle Speed: 4,500 RPM
Spindle Nose Size: ASA-6
Spindle Motor Power Cont 30 Min: 11 / 15 kW
Sub Spindle Chuck Diameter: Ø 215 mm
Sub Spindle Speed: 4,500 RPM
Sub Spindle Nose: ASA-6
Sub Spindle Motor Power Cont 30 Min: 11 / 15 kW
Turrets Type: With livetool both at 12 positions
Turret Positions: 24 positions each
Live Tools Speed: 3,600 RPM
Live Tools Motor Power Cont 30 Min: 5.5 kW
Turning Boring Tool Dimensions: 25x25 / Ø 32 mm
X1 X2 Axis Feedrate: 16,000 mm/min
Y Axis Feedrate: 6,000 mm/min
Z1 Z2 Axis Feedrates: 27,000 mm/min
B Axis Feedrate: 27,000 mm/min
Accessories: Barfeeder LNS mod. MOVE, Chip-conveyor, coolant tank with pump + external high pressure qty 2 pumps + filter, various fixed toolholders and livetools, Double-headed RENISHAW tools presetting arm, main spindle unloading arm, sub-spindle arm unloader + conveyor, Manuals, electrical diagrams and CE Declaration
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Cnc Control: FANUC 18i-TB
Max Swing Over The Bench: Ø 310 mm
Max Turning Diameter: Ø 270 mm
Max Turning Length: 780 mm
Bar Diameter Capacity Through The Spindles: Ø 65 / Ø 65 mm
X1 X2 Axis Travel: 195 / 195 mm
Y Axis Travel: 120 mm (+/- 60)
Z1 Z2 Axis Travel: 780 / 780 mm
B Axis Travel: 850 mm
A C Axis Minimum Controlled Angle: 0.001°
Spindle Chuck Diameter: Ø 225 mm
Spindle Speed: 4,500 RPM
Spindle Nose Size: ASA-6
Spindle Motor Power Cont 30 Min: 11 / 15 kW
Sub Spindle Chuck Diameter: Ø 215 mm
Sub Spindle Speed: 4,500 RPM
Sub Spindle Nose: ASA-6
Sub Spindle Motor Power Cont 30 Min: 11 / 15 kW
Turrets Type: With livetool both at 12 positions
Turret Positions: 24 positions each
Live Tools Speed: 3,600 RPM
Live Tools Motor Power Cont 30 Min: 5.5 kW
Turning Boring Tool Dimensions: 25x25 / Ø 32 mm
X1 X2 Axis Feedrate: 16,000 mm/min
Y Axis Feedrate: 6,000 mm/min
Z1 Z2 Axis Feedrates: 27,000 mm/min
B Axis Feedrate: 27,000 mm/min
Accessories: Barfeeder LNS mod. MOVE, Chip-conveyor, coolant tank with pump + external high pressure qty 2 pumps + filter, various fixed toolholders and livetools, Double-headed RENISHAW tools presetting arm, main spindle unloading arm, sub-spindle arm unloader + conveyor, Manuals, electrical diagrams and CE Declaration
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
