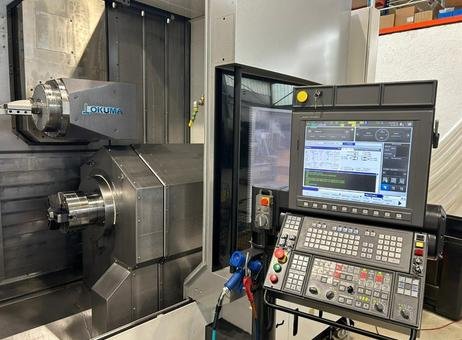

Okuma Multus U 3000 CNC lathe

Okuma Multus U 3000 CNC lathe
Verified seller
Price on request
Make an offer
Manufacturer
Okuma
Model
Multus U 3000
Year
2022
Location
Germany
Category
Lathes - CNC lathes
Product id
P260623193
Buy this machine
Language
Language
CNC струг Okuma Multus U 3000
CNC soustruh Okuma Multus U 3000
Okuma Multus U 3000 CNC-drejebænk
Okuma Multus U 3000 CNC-Drehmaschine
Τόρνος CNC Okuma Multus U 3000
Okuma Multus U 3000 CNC lathe
Torno CNC Okuma Multus U 3000
Tour CNC Okuma Multus U 3000
CNC tokarski stroj Okuma Multus U 3000
Okuma Multus U 3000 CNC esztergagép
Tornio CNC Okuma Multus U 3000
Okuma Multus U 3000 CNC tekinimo staklės
Okuma Multus U 3000 CNC-draaibank
Tokarka CNC Okuma Multus U 3000
Torno CNC Okuma Multus U 3000
Strung CNC Okuma Multus U 3000
Okuma Multus U 3000 Токарный станок с ЧПУ
CNC strug Okuma Multus U 3000
Okuma Multus U 3000 CNC-svarv
CNC torna Okuma Multus U 3000
Get price & details
+49 814 …
Show phone
Details
About this seller
Specifications
Turning length
1000 mm
Turning Ø
650 mm
Ø above the bed
mm
Ø above transversing slide
mm
Length between centers
mm
Type of CNC
X-axis
125 mm
Z-axis
250 mm
Max workpiece weight
kg
Spindle taper
Spindle bore
91 mm
Number of turrets
Number of tools on turret
Number of rotating tools
Turning speed
4200 rpm
Spindle motor power
22 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
-
× -
× -
Weight
kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Okuma Multus U 3000
Last availability date
23/06/2026
Show more
Automatic description (AI-Generated)
The Okuma Multus U 3000 is a CNC lathe machine designed for versatile and precise turning operations. Manufactured in 2022, it features a robust motor spindle main spindle with a maximum speed of 4200 rpm and a power output of 22 kW, delivering a torque of 427 Nm. The spindle bore measures 91 mm with a hollow clamping cylinder diameter of 86 mm, supporting a wide range of workpieces. The machine's turning diameter capacity is 650 mm, with a turning length of 1000 mm and X and Z axes travels of 125 mm and 250 mm respectively.
Equipped with a high-precision C-axis package and an SMW KNCS-N 275-86 K8 chuck featuring the SMW Autoblok clamping system, the main spindle ensures secure and accurate workholding. A secondary motor spindle is also included, capable of speeds up to 5000 rpm with 22 kW power and 420 Nm torque, and an 80 mm spindle bore. This spindle is fitted with an SMW BHD-FC 210-52-3 chuck and also benefits from the high-precision C-axis package.
The machine includes a milling spindle tool carrier with speeds reaching 12,000 rpm, power of 22 kW, and torque of 120 Nm, utilizing HSK 63 tool holders. It supports a Y-axis travel of 250 mm (+/- 125 mm) and a B-axis rotation of 240°. The tool magazine accommodates 80 stations, facilitating efficient tool changes.
Additional features include direct measurement systems on X/Y/Z axes with glass scales, a chip conveyor for effective chip disposal, and a coolant supply system with 70 bar pressure and temperature control via Deltatherm E4. Chip flushing is available both in the work area and via a hand spray gun. The machine is prepared for automation with a robot interface and includes an LNS Quickload Servo III+ bar feeder.
The control panel is equipped with the Okuma OSP-P300 SA system, featuring various control buttons, knobs, an emergency stop switch, and a display screen showing the operational interface. The machine's enclosure and components appear clean and well-maintained with minor signs of use, and the chuck jaws show machining marks consistent with normal operation but no major wear or damage.
Additional precision and monitoring features include Renishaw probes for workpiece measurement, tool setters, and tool breakage monitoring with the Renishaw TRS2 system. Software packages support 5-axis auto-tuning, multi-function tools, hobbing, shaping, and dialog programming. The work area door operates automatically, and setup is facilitated by an electronic handwheel.
Overall, the Okuma Multus U 3000 offers a comprehensive set of capabilities suitable for complex and high-precision machining tasks, supported by advanced control and automation features.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Okuma Multus U 3000
Year of manufacture: 2022
Control: Okuma OSP-P300 SA
Turning diameter: 650 mm
Turning length: 1000 mm
____________
Description:
Main spindle:
Technology: Motor spindle
Speed: 4,200 rpm
Power: 22 kW
Torque: 427 Nm
Spindle bore: 91 mm
Hollow clamping cylinder: 86 mm
C-axis: High precision package

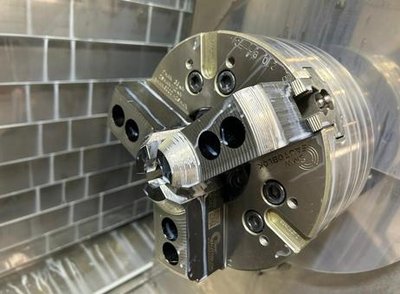

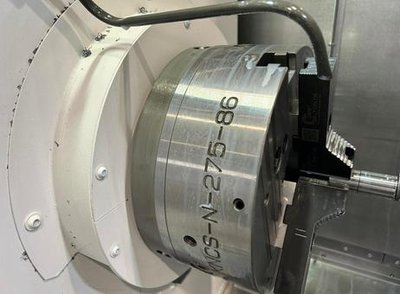

Chuck: SMW KNCS-N 275-86 K8
Counter spindle:
Technology: Motor spindle
Speed: 5,000 rpm
Power: 22 kW
Torque: 420 Nm
Spindle bore: 80 mm
Hollow clamping cylinder: 77 mm
C-axis: High precision package
Chuck: SMW BHD-FC 210-52-3

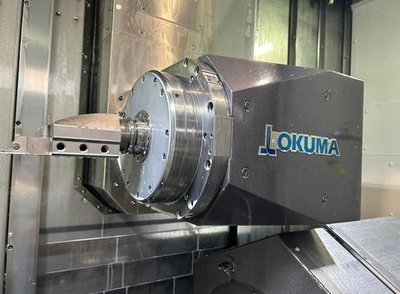

Tool carrier X/Y/Z/B:
Technology: Milling spindle
Speed: 12,000 rpm
Power: 22 kW
Torque: 120 Nm
Tool holder: HSK 63
Y-axis: 250 mm (+/- 125 mm)
B-axis: 240°
Tool magazine:
Number of stations: 80
Equipment / Accessories:
Measuring systems: Direct in X/Y/Z axes (glass scales)
Chip disposal: Chip conveyor
Coolant supply: IKZ system, 70 bar
Coolant temperature control: Deltatherm E4
Chip flushing: Work area, hand spray gun
Precision package: C-axes high precision
Software package: 5-axis auto-tuning
Software option: Multi-function tool
Gear software package: Hobbing, shaping
Control extension: Dialog programming
Workpiece measurement: Renishaw probe
Tool measurement: Tool setter
Tool breakage monitoring: Renishaw TRS2
B-axis: NC function and rotary function
Bar feeder: LNS Quickload Servo III+
Automation preparation: Robot interface
Work area door: Automatic
Setup operation: Electronic handwheel
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
